Setting up DualRate with MCG

[crakob]

Hi, i'm desperately trying to set up DR for the Rudder/Z-Axis.

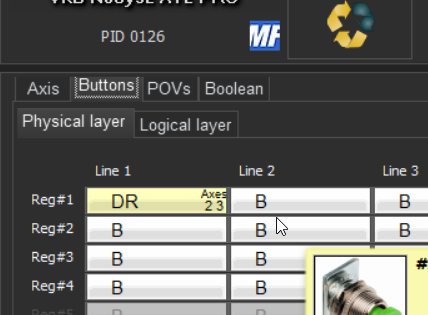

I have configured a Button to Fix-Axes, and than choose DR, and ticked the specific axis.

But i can`t find the option where i can set the DR-Value as described in the tutorials.

in Global/Common / DR value is not shown. ( i tested with the latest and previous Version of the software. (a very old version shows the DR-Value but that Version messes up all my other settings/Macros)

Thanks for your help

[Ron61]

What if we add the line User=Developer to the specified path?

[crakob]

And i allways wondered where to set "extended..."

Thanks, i try that

[Alex Oz]

This is not required. The presence of the DR function will open the necessary settings.

[crakob]

Good morning,
i looked into the ini file. the USER=Developer was allready present. I also tried with EXPERTMODE=1 ( was initialy set to 0)
I started the program in admin-mode, but still no sign of DR.

this is the relevant part of my ini:

[Misc]
Read_Delay1=0
.
.
.
.
DeviceListShort=1
Expert Mode=1
Set After Load=0
Internal Bootloader=0
.
.
.
.
Version=0000
Path=
[User]
User=Developer
PartialWrite=0
PartialCalibration=0
AutoRegFileMake=1

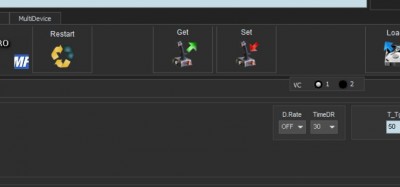

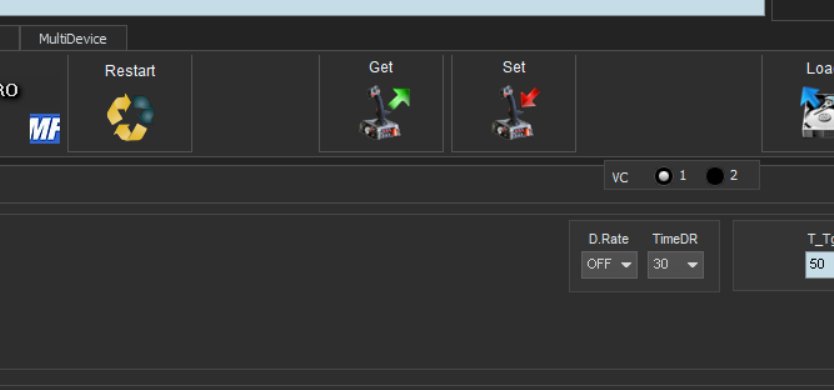

@ Alex, thanks for your response!. i try again tonight, but i´m quite shure i had the DR-Switch assigned and still the DR-Settings did not show. (does the FW of my MCG matter? i`m still on 1.96B)

i report back

[Alex Oz]

use new vers

[crakob]

Ok thanks.
One last question. For my mcg pro mk2+ trudder.
Wich of the many fw. do I have to flash.
Thanks a lot
Christian

[Alex Oz]

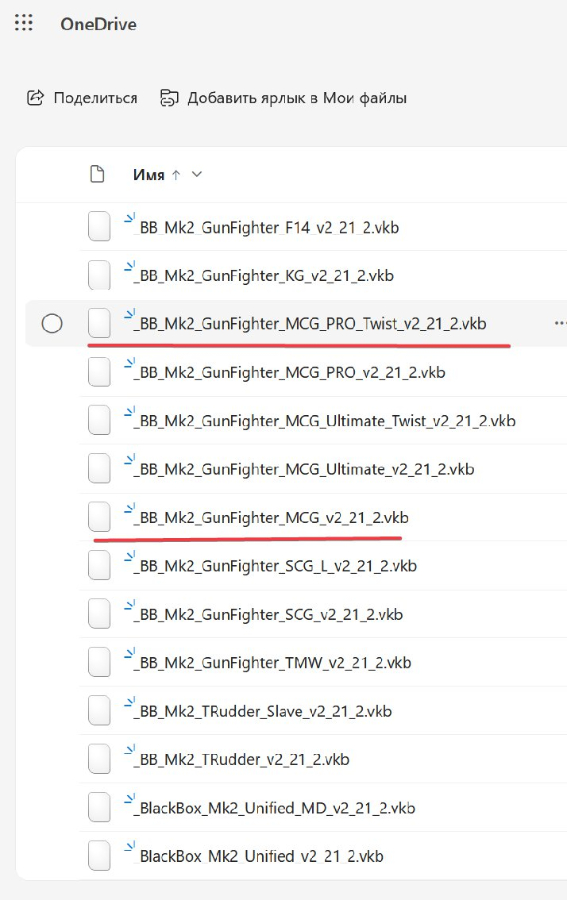

If Blackbox Mk1 (Orange) - take it from folder BlackBox Mk1

[crakob]

Hmmm. Now I flashed with. _BB_GunFighter_MCG_PRO_v2_19_9.vkb and DR works as expected. For the MK1 BB
I set everything to default . But the 2 pov buttons won’t calibrate properly. In the endpoints they are totally unreliable. (I use them as 4way switches.)
I went back to the old fw and everything worked fine.


Oh just read your answer , thank you. You think this version makes a difference vs. 2-19. ? (Yes I have the orange one and the non-twist version )

[Alex Oz]

http://forum.vkb-sim.pro/viewtopic.php?f=25&t=8624
