VKB Device Config v0.93.89 MCG Trigger

[simmeone]

Hi,

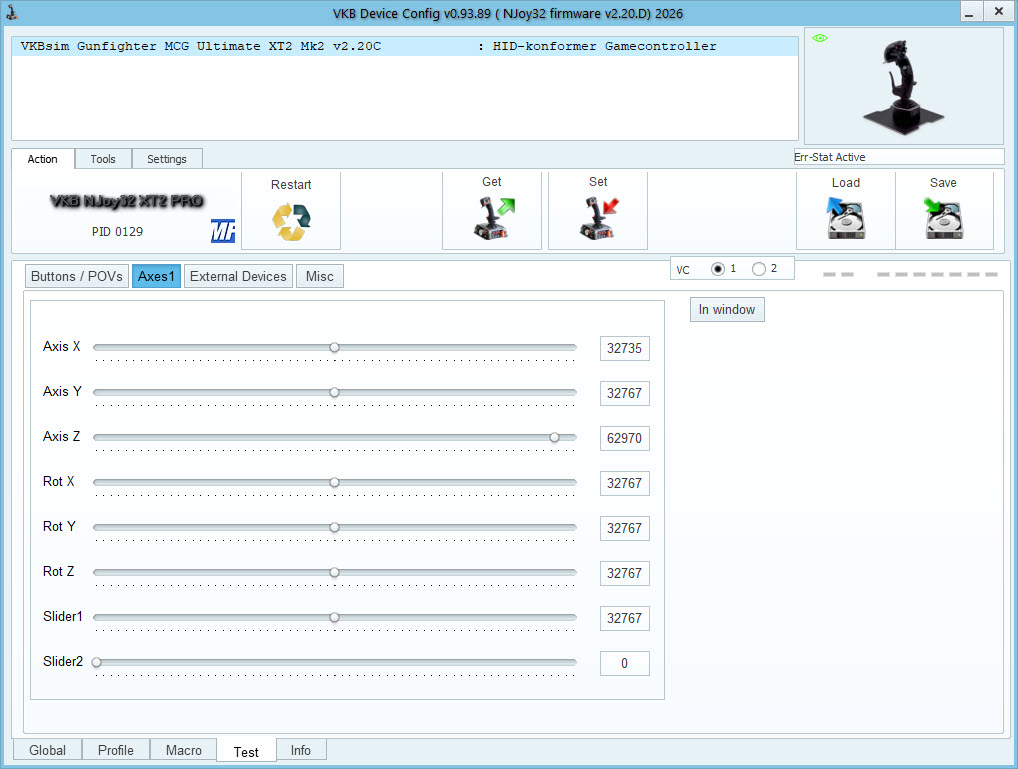

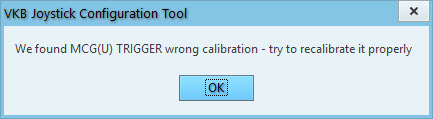

I updated the Device Config to version 0.93.89 and the firmware of my Gunfighter MCG Ultimate to version 2.20C. I calibrate my device, all looks fine, but I've got always the message box "We found MCG (U) TRIGGER wrong calibration - try to recalibrate it properly". Where I can calibrate the trigger?

Thank you for your help and support.

[Ron61]

The trigger axis is the 9th axis on the VC2.
In Settings, enable PartialCalibration.
Before calibration, lower the trigger to the Armed position, fully pull it back, and then gently release it back to the Armed position. Run the calibration and select the 9th axis from the drop-down menu, pull the trigger back, release it, and finally release it back to the Safe position. Finish the calibration.
After this, you can go to the VC2 and ensure that the 9th axis doesn't show 255 in the KdLo and KdHi columns.
If not, you'll need to repeat the calibration.

[simmeone]

Thank you for your message. Is it possible, to show some screenshots of the calibration process? I can not follow some steps you described. Thank you very much.

[Ron61]

You may have an outdated version of the configurator and firmware that doesn't allow axle selection on the VC2.
Update them from here, and then everything will work.

[simmeone]

Which version you use?

[Ron61]

I use the outer ones. I recommend the second-to-last one.

[simmeone]

Hi,
thank you for your hint, I updated the VKB Device Config to version 0.94.37 and the firmware to 2.22.3. Now I can calibrate all and the message doesn't popup again.

Regards.
