NXT EVO OTA profile configuration template PDF with form fields

[krixx]

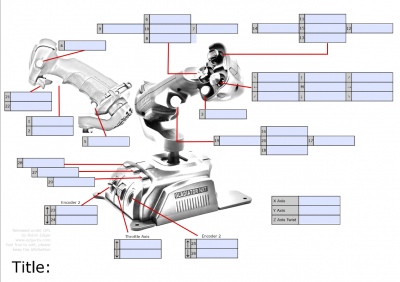

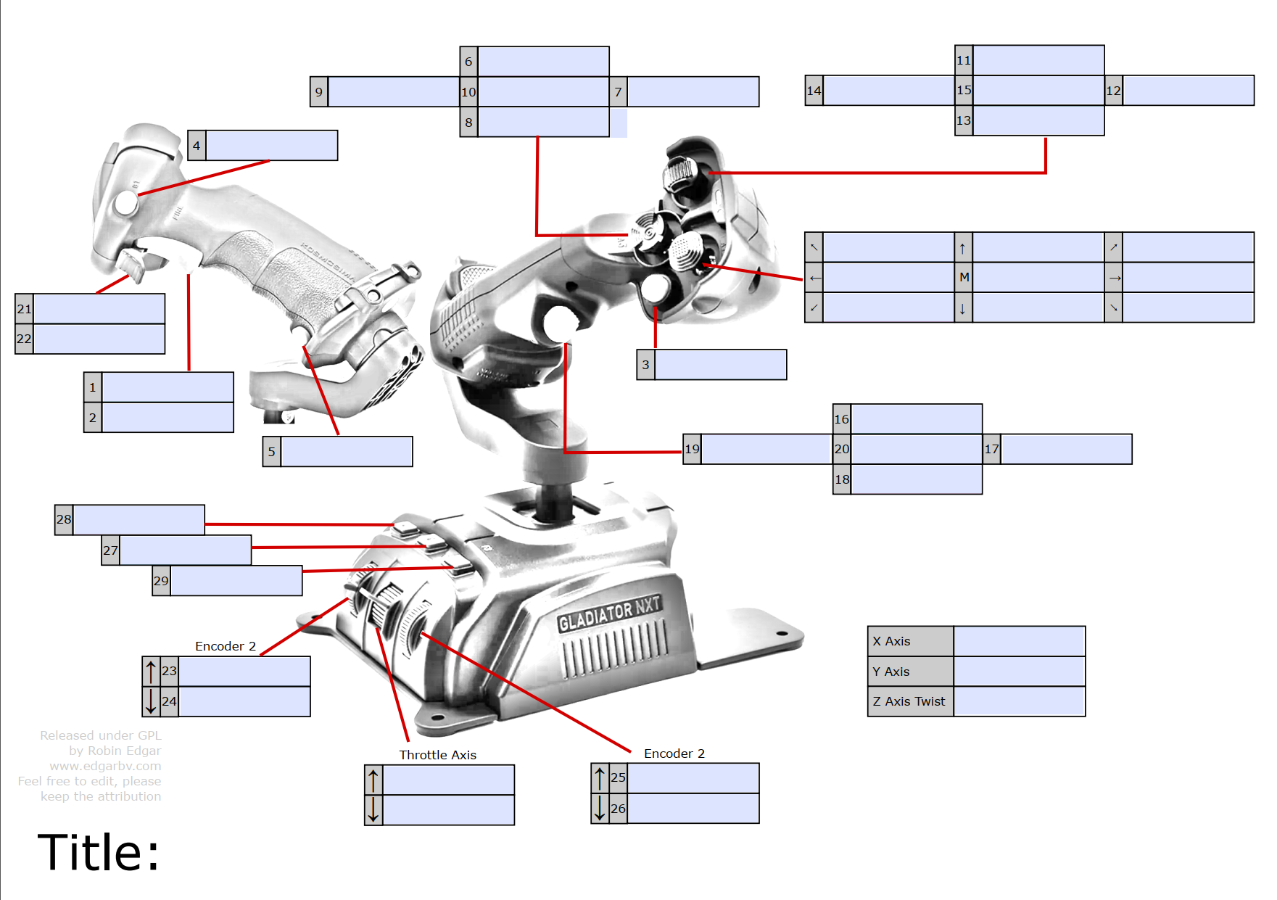

This PDF allows you to input your mappings for the Gladiator NXT EVO OTA left side easily.

[img]VKB%20Gladiator%20NXT%20EVO%20OTA%20profile%20template.png[/img]

VKB MCG profile template Left.pdf

(403.46 KiB) Downloaded 348 times

[DeadWalking]

Right on! Cheers for sharing

[NPC Spaceman]

Hey there, I wanted to post to upload an update that I made to fit my two-stick combo. It's the same sheet as above, with a second page for my Right-hand Gunfighter MCG Pro. I tweaked the forms, aligned them, readjusted the tab ordering, and added a few extra fields to the MCG side to better accommodate remapping the flip lever trigger. Hopefully someone finds this useful!

_MCG-R + NXT-L-OVA Combined (forms v24_06_23)_opt.pdf

(596.12 KiB) Downloaded 205 times

[krixx]

Nice one! I have attached my MCG template PDF here too, as I see that for some reason I hadn't uploaded it here yet...

[Ron61]

Try using built-in functions for this.

[NPC Spaceman]

I don't have that function in mine. I downloaded the latest from the site and am only at 92.98.

[Ron61]

Look here for the latest firmware and software.

[NPC Spaceman]

Thanks! Bookmarked. What's the usual delay for soft and firm wares to cycle over to the VKB-NA site?

[NPC Spaceman]

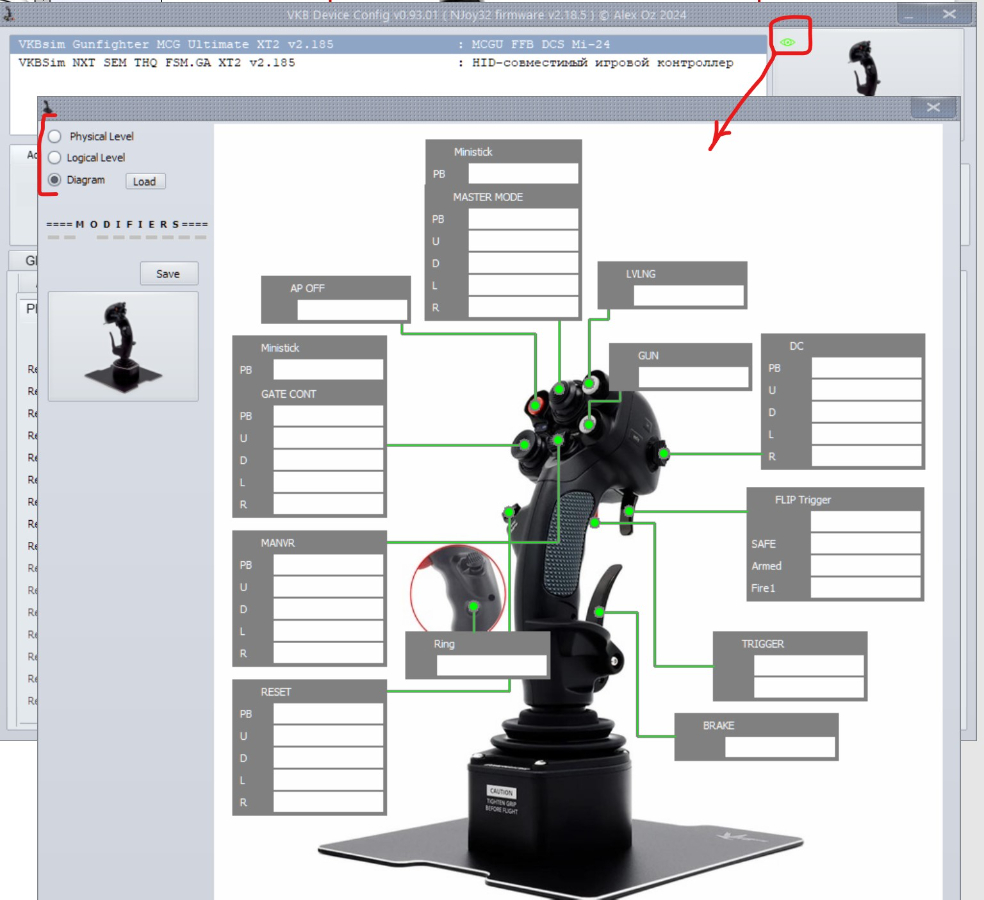

Got the new version and this layout tool is awesome! I am going to have a lot of fun with this. Is there a way to enter custom labels? Having some mix of Physical, Logical, and Custom titles would be fantastic (and also crucial for my use as a mid-play reference on my second monitor).

[Ron61]

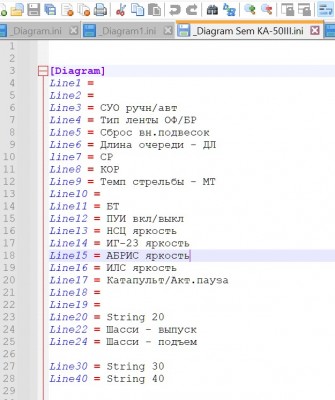

In the extreme configurator(93.02), it became possible to create signatures for buttons in the _Diagram.ini file. It is advisable to create your own module for each module with a clear name and load it using the Load button. For example, this is how the initial one turns out (not completed).

[NPC Spaceman]

Awesome, thanks, I'll play around with this.

[krixx]

In the extreme configurator(93.02), it became possible to create signatures for buttons in the _Diagram.ini file. It is advisable to create your own module for each module with a clear name and load it using the Load button. For example, this is how the initial one turns out (not completed).

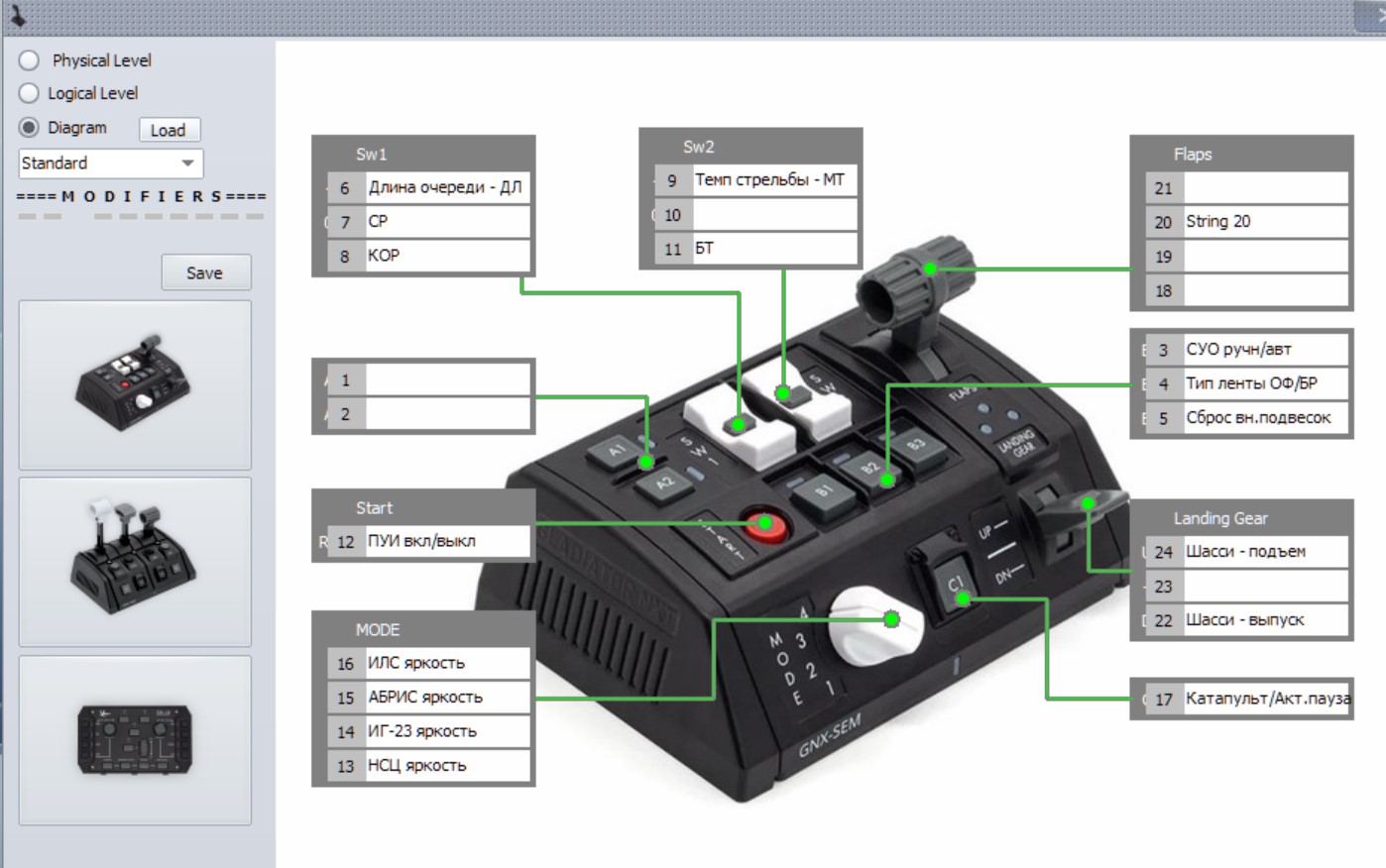

Diagram SEM KA-50III.jpg

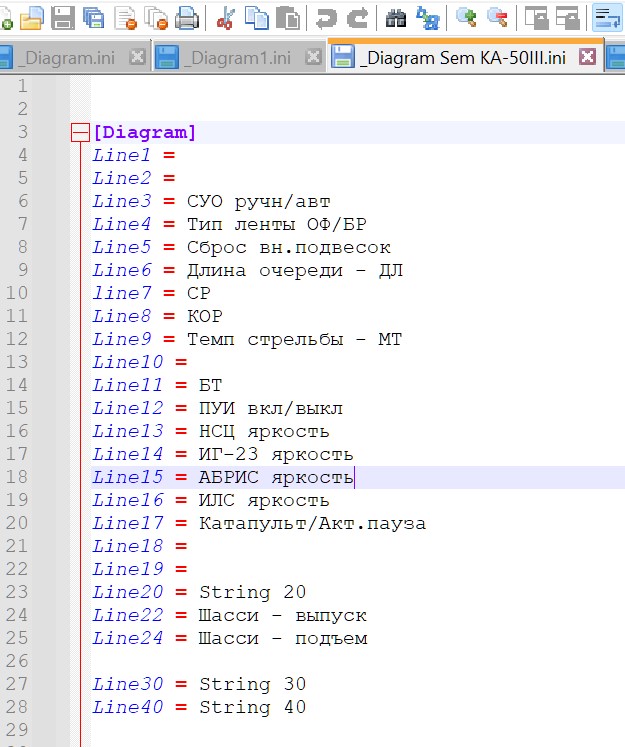

Diagram SEM KA-50III.ini.jpg

Thanks that's really cool! How do you get the initial _Diagram.ini file to fill in? And can you do multiple lines per button like eg the trigger? For example In Elite: Dangerous I can have a hat direction be all kinds of stuff depending if I am in the cockpit, galaxy map and camera modes and then sometimes modified depending on if I am holding down a button (to move through the menus)

[Ron61]

The file is in the archive, it is edited depending on the number of buttons, the numbers of which are visible in the configurator in the Profile-Buttons-Visual Mapping tab.

_Diagram.rar

(178 Bytes) Downloaded 178 times
