Perhaps I am going about this the wrong way, however, I'd like to have :
- button with "tempo"( ie long press) function that triggers a "button alt" (ie toggle switch) function when the long press is engaged.
is this possible?
I can set a button to have tempo functionality, but the options on the logical layer offer a more limited set of functions compared to the physical.
NXT Premium - Tempo on logical layer?
Moderator: AdminGroup
Re: NXT Premium - Tempo on logical layer?
Use Boolean functions. 2OR enables to set logical button as physical one.
https://disk.yandex.ru/i/fmHDZz9ph044Ww User guide. Slightly obsolete. Booleans in Modern FWs have other interface. In this guide read about JMP function.
"JMP
By default logical layer button lines can use restricted function set: button, keystroke
mapping, HAT, macro launch etc. (Fig. 4.61).
Generators, trimmers, encoders and a lot of other useful functions are enabled for
physical layer lines only. Thus you can not assign such function to line that will act
when you press button with Shift modifier.
Jumper function allows to ignore these restrictions. It maps logical line to physical
layer.
Next JPM GEn)))

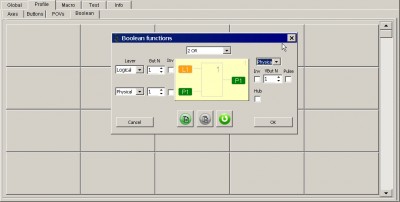

Open Boolean tab. Press any cell. Select 2OR function. Set your LOGICAL line index as one input. Another does not matter. Set desired line index with PHYSICAL type. Select BAlt for this line on Buttons - Physical. Enjoy!
https://disk.yandex.ru/i/fmHDZz9ph044Ww User guide. Slightly obsolete. Booleans in Modern FWs have other interface. In this guide read about JMP function.
"JMP
By default logical layer button lines can use restricted function set: button, keystroke
mapping, HAT, macro launch etc. (Fig. 4.61).
Generators, trimmers, encoders and a lot of other useful functions are enabled for
physical layer lines only. Thus you can not assign such function to line that will act
when you press button with Shift modifier.
Jumper function allows to ignore these restrictions. It maps logical line to physical
layer.
Next JPM GEn)))
Open Boolean tab. Press any cell. Select 2OR function. Set your LOGICAL line index as one input. Another does not matter. Set desired line index with PHYSICAL type. Select BAlt for this line on Buttons - Physical. Enjoy!
Руководство пользователя по контроллерам VKB (VKB controllers User Guide) Ru&En
https://disk.yandex.ru/d/LlqiYtIrIetBOQ
https://disk.yandex.ru/d/LlqiYtIrIetBOQ
Re: NXT Premium - Tempo on logical layer?
Thank you that's very useful. It is not working for me though. I assume I am doing it wrong. My apologies, I seem to be struggling with learning this application.
To test out this function I have tried to follow your instructions as follows
Open Boolean tab
Select first cell

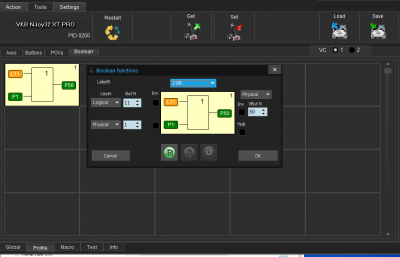

Select Boolean '2 OR'. Top input set to logical 11. Output set to physical 50
save/flash onto device
After setting this I have tried

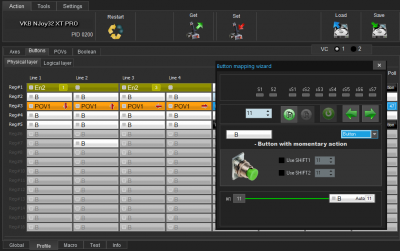

- Profile->buttons->physical : physical 11 to logical 11 as a simple button. I assume it is supposed to according to the cell that was set in the Boolean tab?
- save/flash onto device
result: physical 50 is not being executed when I press on physical 11
I have also tried:

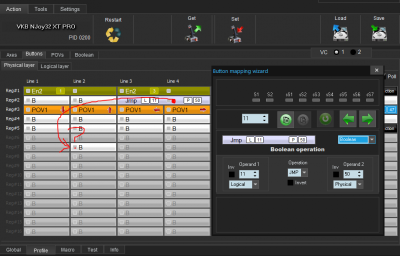

- Mapping physical or virtual or logical 11 to a boolean JMP operation with physical 50 as the output
- save/flash onto device
in both cases, physical 50 is not being executed when I press physical 11. Am I missing something?
To test out this function I have tried to follow your instructions as follows
Open Boolean tab
Select first cell
Select Boolean '2 OR'. Top input set to logical 11. Output set to physical 50
save/flash onto device
After setting this I have tried
- Profile->buttons->physical : physical 11 to logical 11 as a simple button. I assume it is supposed to according to the cell that was set in the Boolean tab?
- save/flash onto device
result: physical 50 is not being executed when I press on physical 11
I have also tried:
- Mapping physical or virtual or logical 11 to a boolean JMP operation with physical 50 as the output
- save/flash onto device
in both cases, physical 50 is not being executed when I press physical 11. Am I missing something?
Re: NXT Premium - Tempo on logical layer?
I was confused between JMP function vs boolean tab.
Anyway. It's working now. Thank you for showing me this boolean tab feature. I would have never found it otherwise. Being able to map logical to physical is a big help.
Final solution for longpress button 11 to trigger switching to a function layer. (slightly different to my original requirement):

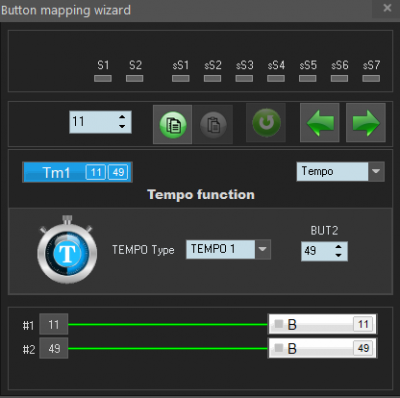

- Profile->Physical. Set physical 11=tempo with but2=logical 49

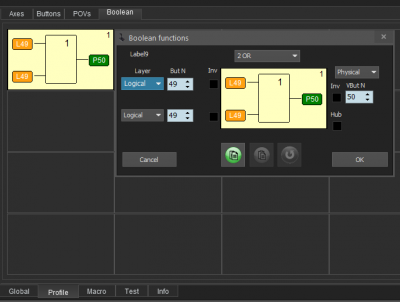

- Profile->Boolean. Create cell with 2 OR function. Set inputs both to logical 49. set output to physical 50

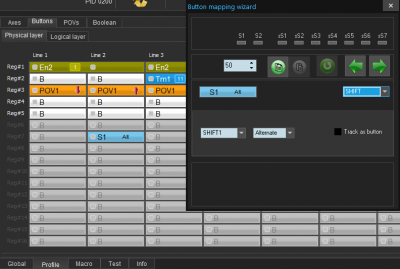

-Profile->Physical. Set physical 50 = SHIFT. Mode to "Alternate"
-Action->Set
Long press on 11 now changes shift state/layers
Anyway. It's working now. Thank you for showing me this boolean tab feature. I would have never found it otherwise. Being able to map logical to physical is a big help.
Final solution for longpress button 11 to trigger switching to a function layer. (slightly different to my original requirement):
- Profile->Physical. Set physical 11=tempo with but2=logical 49
- Profile->Boolean. Create cell with 2 OR function. Set inputs both to logical 49. set output to physical 50
-Profile->Physical. Set physical 50 = SHIFT. Mode to "Alternate"
-Action->Set
Long press on 11 now changes shift state/layers
