how to center the ministick "Rot Y axis" via a Button press

Moderator: AdminGroup

Stefan79
Posts: 30
Joined: Thu Oct 08, 2015 11:15
Has thanked: 3 times
Been thanked: 1 time

how to center the ministick "Rot Y axis" via a Button press

Postby Stefan79 » Thu Sep 17, 2020 14:33

Hu guys,

is there a way to center the ministick "Rot Y axis" via a Button press ?
I use it in a game as rel. axis to speed up and down. That works perfect but i want to center it.
I thought it is maybe possible about the Axis Val. When centered it is around 32767.
I wan't that when i press the ministick, the Rot Y axis "sends" 32767 to center the rel axis.

Any other idears ?

best regards

Stefan

User avatar
fallout9
Posts: 1116
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 349 times

Re: how to center the ministick "Rot Y axis" via a Button press

Postby fallout9 » Fri Sep 18, 2020 3:04

You have 2 options here:

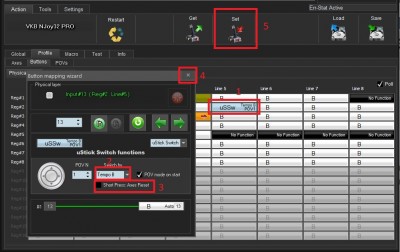

A. Set the center button of the ministick as Axes reset: this will get you a long press on the center button of the ministick to swap from buttons to axes and back and a short press a reset of both axes of the ministick.
- 1. click on the uSSw button;
- 2. and 3. set the center button as TempoB (2) and check the Axes Reset (3);
- 4. close that window;
- 5. hit the Set button to save.

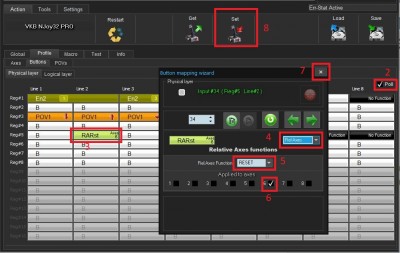

B. Set a button on the ministick as a Reset Axes button: this will reset the desired axis.
- 1. identify the number of the axis (here is 6);
- 2. check the Poll option and click on your joystick button that you want to use to reset the axis;
- 3. mouse click on the cell that's been lighting up;
- 4. set that as RelAxes;
- 5. set its function to Reset;
- 6. check the number of your axis or axes (you can have more than 1);
- 7. close that window;
- 8. hit the Set button to save.


Stefan79
Posts: 30
Joined: Thu Oct 08, 2015 11:15
Has thanked: 3 times
Been thanked: 1 time

Re: how to center the ministick "Rot Y axis" via a Button press

Postby Stefan79 » Sat Sep 19, 2020 0:00

Hi Fallout,
really THX it worked perfectly but... :)

i just notist that the in game axis i want to controll is logarithmic...

I tried to use "Set Value" instead of "reset".
The Button Info Box tell me than "Value (FA3)"

The handbook says:
FA3
Sets axis response to specified value. FA3 val variable specifies response value in
percents of the whole response range. This parameter for each axis you can find on
Profile — CommonnAxes tab. Fig. 4.30 shows X and Y axes response when
FA3 button is pressed four times. FA3 val is equal to 45.


i tried now to set FA3 to 20 (for example) and thought when i press now the button the axis will jump to 20% from whole response range. But it still centres

Any idear ? =)

I search a way to tell the axis "jump to a (a certain value i add) or b (to a certain % from whole response range)
Another option could be to store a axis position and reset it with another button... Trimmer reset and trimer return maybe ????

PS.
As more i work with te Software as more i notice how powerful this tool is ;)

User avatar
fallout9
Posts: 1116
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 349 times

Re: how to center the ministick "Rot Y axis" via a Button press

Postby fallout9 » Sat Sep 19, 2020 0:31

Try Fix Axes/ FA3 :) and don't forget to activate FA in Global/Common, under Basic.

Stefan79
Posts: 30
Joined: Thu Oct 08, 2015 11:15
Has thanked: 3 times
Been thanked: 1 time

Re: how to center the ministick "Rot Y axis" via a Button press

Postby Stefan79 » Sat Sep 19, 2020 14:28

Hey fallout9,

fix axes worked. I had to set FA3 to 16% the get the "center of the axes in the game". Now when i release the fix it jumps back to the old value.
Any way it will stay at 16% till i increase or decrese ?


I read about Trimmer reset and Trimmer Return which sound interesting. I tried it but it didn't worked (pretty sure the configuration was wrong)

Trimmer Reset — Resets trimmer(s) to default condition. Returns axis with center
to the central position and axis without center to zero. Also stores current axes trim
value. It can be reapplied to axes using Trimmer Return function
.


Would set be a option ?

best regards
Stefan

User avatar
fallout9
Posts: 1116
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 349 times

Re: how to center the ministick "Rot Y axis" via a Button press

Postby fallout9 » Sat Sep 19, 2020 20:09

Hi again :) I'd like to help, but I don't quite understand what you're trying to achieve; what's your goal in making these changes?

Stefan79
Posts: 30
Joined: Thu Oct 08, 2015 11:15
Has thanked: 3 times
Been thanked: 1 time

Re: how to center the ministick "Rot Y axis" via a Button press

Postby Stefan79 » Sat Sep 19, 2020 22:03

Hey ho,
you already helped alot :) really thx

Look at the screenshot i hope than it is clear what i try

i only want to set the speed to "normal combat speed" via button press without returning to a old value like it happenes with "fix" :)

User avatar
fallout9
Posts: 1116
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 349 times

Re: how to center the ministick "Rot Y axis" via a Button press

Postby fallout9 » Sun Sep 20, 2020 2:29

Check again that button for Fix Axes, click on it and see if Alternate Action box is checked; if it's not check it and Set the profile. The Alternate Action, when checked, is holding the button pressed between 2 button actuations. If it's not checked then that command is on only while the button is physically pressed.
But from personal experience Speed Limiter in SC works better on a classic hat switch.

Stefan79
Posts: 30
Joined: Thu Oct 08, 2015 11:15
Has thanked: 3 times
Been thanked: 1 time

Re: how to center the ministick "Rot Y axis" via a Button press

Postby Stefan79 » Sun Sep 20, 2020 11:13

I used the alternate funktion already.
I will use it for the moment, till the "set SCM" button will be added in the game ;)

again really thx for you help :)

Stefan79
Posts: 30
Joined: Thu Oct 08, 2015 11:15
Has thanked: 3 times
Been thanked: 1 time

Re: how to center the ministick "Rot Y axis" via a Button press

Postby Stefan79 » Tue Sep 22, 2020 21:13

Sorry it is me again fallout9 ;)
when i use AxestoButtons the button will be "pressed" at the end of the axes.
Any way to set it to the beginning of the axes?

Greetings
Stefan

User avatar
fallout9
Posts: 1116
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 349 times

Re: how to center the ministick "Rot Y axis" via a Button press

Postby fallout9 » Tue Sep 22, 2020 21:58

Try Zones with Num=0.
