Programming Microstick mode switch?

Postby KiwiPete » Tue May 19, 2020 5:14

Hello!

Received my first VKB controller - a LH Kosmosima Premium. Have now ordered the rudder peddles :)

I am wanting to have the Microstick button have two options based on (I think) the Tempo command. The first action - a short press = 300ms is to act as say button 29. The second, longer press is to swap between the axes and the POV hat like it normally does. I would also repeat this in order to have a short click assigned to button 30 with the Hat switch is active, with a longer click returning the microstick to it's axes function. Any advice on this would be appreciated. I'm unable to locate the appropriate command from the Tempo options - I've also hunted unsuccessfully for other commands that would enable this.


Thanks for your advice and guidance you can offer.

Cheers.

KP
Salute!

KiwiPete - A Flight Sims and Space Simmer. PC Gamer forever and always!

User avatar
fallout9
Posts: 1124
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 351 times

Re: Programming Microstick mode switch?

Postby fallout9 » Tue May 19, 2020 5:43

Congrats on getting an excellent joystick! :) To program the ministick as you wish make sure you're flashed and calibrated properly, like in this video: https://youtu.be/mCajFZ9e9gw

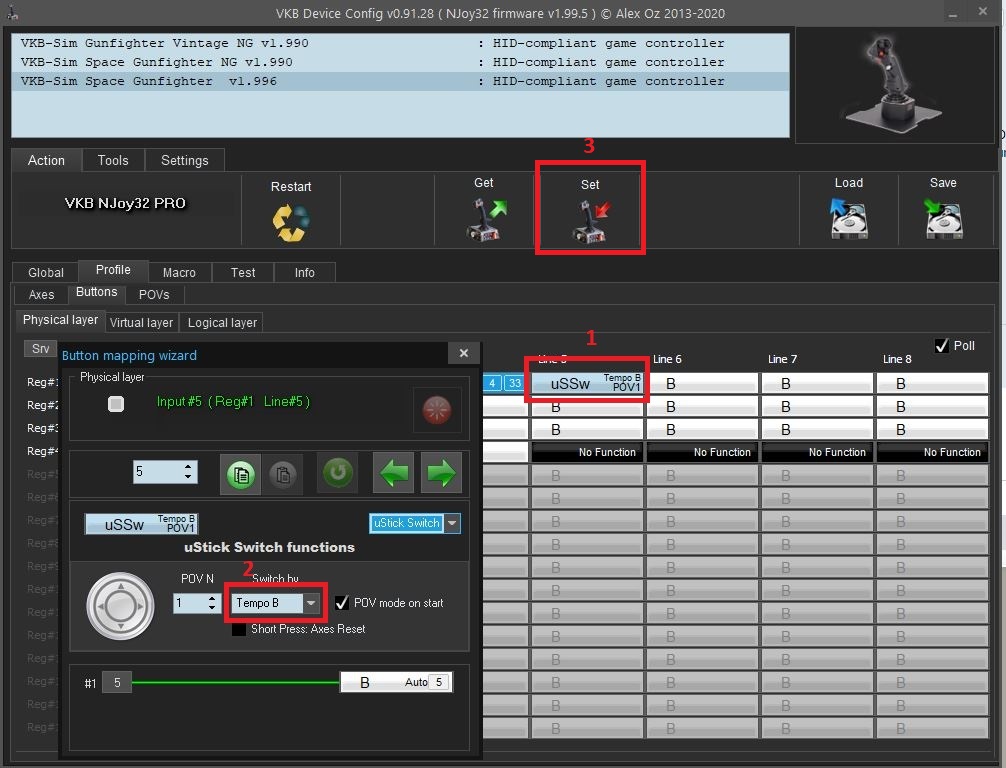

After that open the configurator, go the Physical buttons panel, click on the uSSw button and set it as TempoB. Hit Set at the end in the Action tab. Tempo Time could get adjusted in Global/Common panel.
Attachments

KiwiPete
Posts: 2
Joined: Sat May 02, 2020 2:49
Has thanked: 3 times

Re: Programming Microstick mode switch?

Postby KiwiPete » Tue May 19, 2020 6:39

Ahh! Thank you so very much. Exactly what I was looking for!
I missed the SET step. Doh!

Cheers Fallout9 - Have a virtual beer on me. :D

Thanks for the support.
Salute!

KiwiPete - A Flight Sims and Space Simmer. PC Gamer forever and always!

User avatar
fallout9
Posts: 1124
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 351 times

Re: Programming Microstick mode switch?

Postby fallout9 » Tue May 19, 2020 6:44

No worries! Just don't stop playing with the software, it's very powerful and handy. If you have more questions don't hesitate to ask :)

i-mike
Posts: 5
Joined: Wed Sep 09, 2020 23:42

Re: Programming Microstick mode switch?

Postby i-mike » Wed Sep 09, 2020 23:47

Hi,

i own the GLADIATOR NXT - and with this discription it dosent work for me... is there any difference there?
Thank you very much!

br
Mike

User avatar
fallout9
Posts: 1124
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 351 times

Re: Programming Microstick mode switch?

Postby fallout9 » Wed Sep 09, 2020 23:59

Hey Mike, could you elaborate this a bit? What exactly doesn't work for you?

i-mike
Posts: 5
Joined: Wed Sep 09, 2020 23:42

Re: Programming Microstick mode switch?

Postby i-mike » Thu Sep 10, 2020 0:24

Hi Fallout9,

thank you for answering me quite fast!

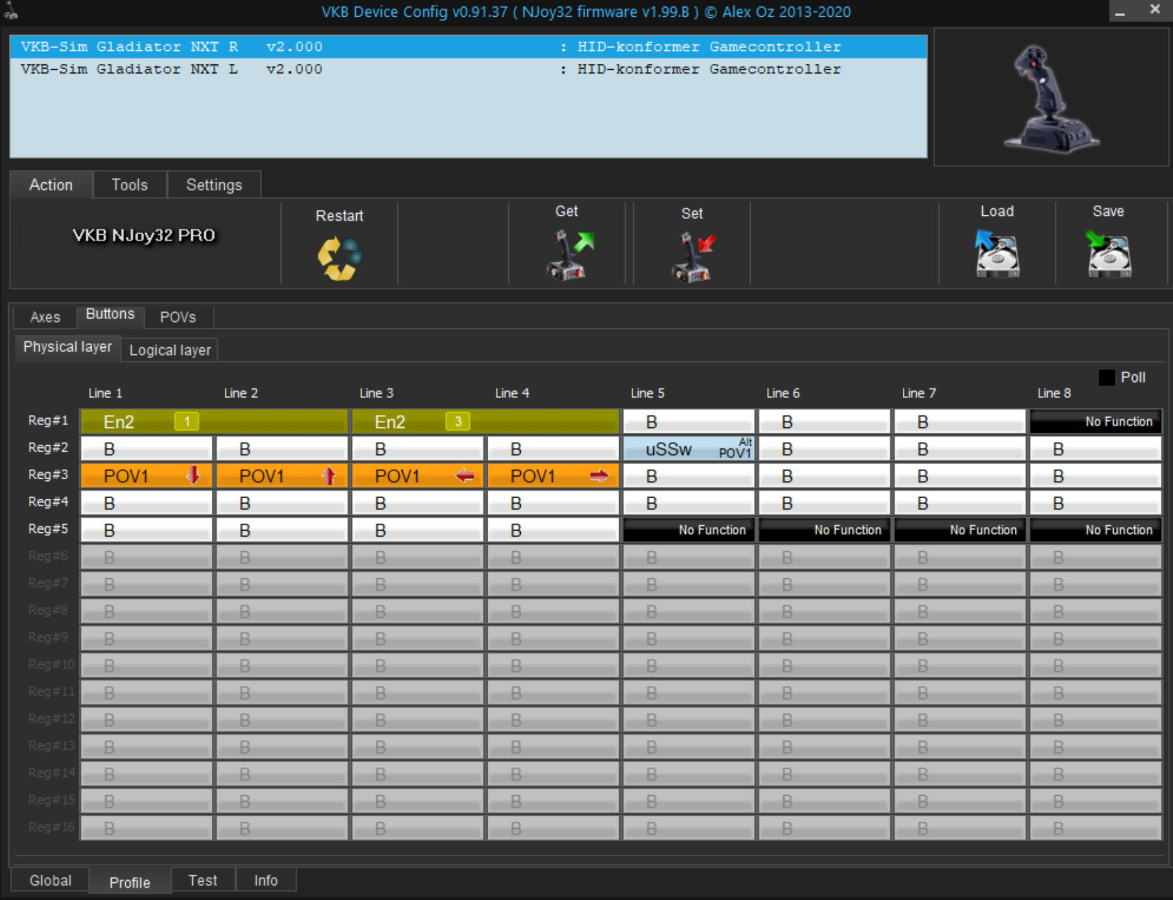

This is the standard config:

none button lights up on pressing the POV

-> Pressing the POV red LED lights up and i can switch between POV an AXES.

So, i did the steps as shown form you above.
Then i short press the button on my POV and it shows that button 13 blinks very short (take very many times to catch it on screenshot) - but a long press didnt switch the red LED on to enter AXES-mode.


User avatar
fallout9
Posts: 1124
Joined: Wed Oct 03, 2018 20:37
Has thanked: 67 times
Been thanked: 351 times

Re: Programming Microstick mode switch?

Postby fallout9 » Thu Sep 10, 2020 1:56

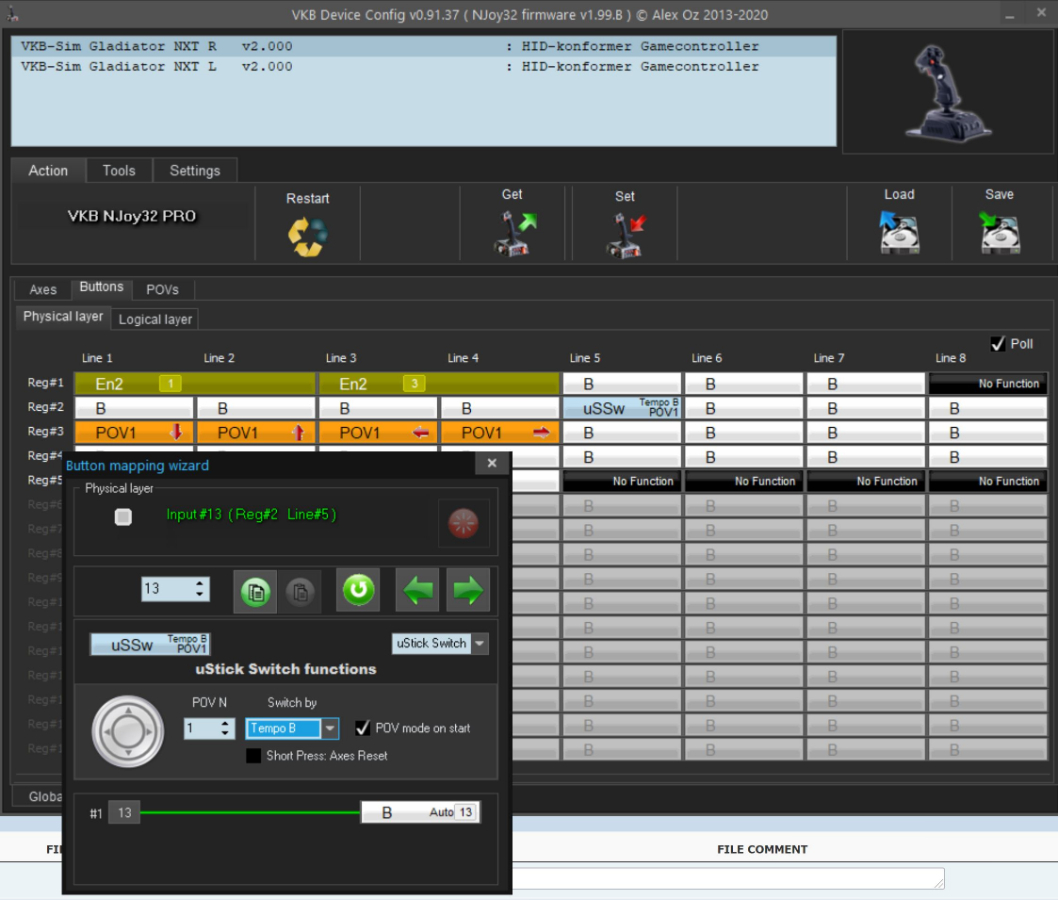

Click on that blue uSSw button and in the new window pull down the menu under Switched by and select Tempo B. Leave the POV on start box checked if you want it to start in POV mode, uncheck it if you want it to start in axes mode. Close that new window and press the Set button. Now you should have a short press on the ministick as a button and a long press as a switch between axes mode and buttons mode.

i-mike
Posts: 5
Joined: Wed Sep 09, 2020 23:42

Re: Programming Microstick mode switch?

Postby i-mike » Thu Sep 10, 2020 8:41

Okay - i thought i was doing so... but i will try it again with your description ;-)

And after this - if i press the POV-Button longer then the red led should begin to light up or?

Ron61
Posts: 1996
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 37 times
Been thanked: 419 times

Re: Programming Microstick mode switch?

Postby Ron61 » Thu Sep 10, 2020 10:13

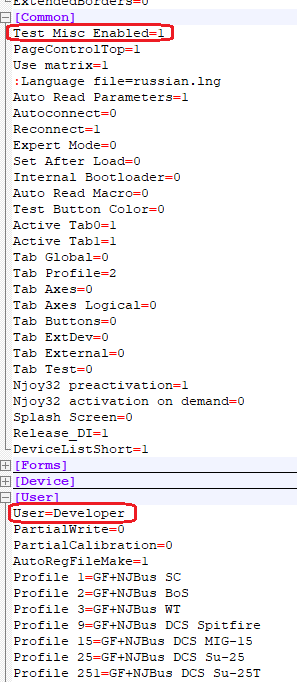

For the Leds configuration tab to appear, you need to add additional lines to the zconfig.ini file. And then it will be possible to customize the indication of modes to your liking. And not only modes, but also a lot of events.

i-mike
Posts: 5
Joined: Wed Sep 09, 2020 23:42

Re: Programming Microstick mode switch?

Postby i-mike » Thu Sep 10, 2020 15:42

@Ron61:
Thank you very much for this info!

i-mike
Posts: 5
Joined: Wed Sep 09, 2020 23:42

Re: Programming Microstick mode switch?

Postby i-mike » Thu Sep 10, 2020 19:30

Update:

it worked with the description

BUT

the red led dosent light up now when i change the mode...

@Ron61:
can i fix this with your tip?

Ron61
Posts: 1996
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 37 times
Been thanked: 419 times

Re: Programming Microstick mode switch?

Postby Ron61 » Thu Sep 10, 2020 19:50

First you need to find out where which Led is located and their possible colors. We go to Test-Misc and in the lower right corner in LedN enter a number from 0 to 12 and hold Fast Test.
With each new number we memorize (you can write down on paper) the location of the Leds. After checking, restart the controller with the Restart button (in the Action tab) and the configurator. And already with this knowledge, you can go to the Global-External-Leds tab for setting up various events.
