Programming Microstick mode switch?

Moderator: AdminGroup

KiwiPete
Posts: 2
Joined: Sat May 02, 2020 2:49
Has thanked: 3 times

Programming Microstick mode switch?

Postby KiwiPete » Tue May 19, 2020 5:14

Hello!

Received my first VKB controller - a LH Kosmosima Premium. Have now ordered the rudder peddles :)

I am wanting to have the Microstick button have two options based on (I think) the Tempo command. The first action - a short press = 300ms is to act as say button 29. The second, longer press is to swap between the axes and the POV hat like it normally does. I would also repeat this in order to have a short click assigned to button 30 with the Hat switch is active, with a longer click returning the microstick to it's axes function. Any advice on this would be appreciated. I'm unable to locate the appropriate command from the Tempo options - I've also hunted unsuccessfully for other commands that would enable this.


Thanks for your advice and guidance you can offer.

Cheers.

KP
Salute!

KiwiPete - A Flight Sims and Space Simmer. PC Gamer forever and always!

User avatar
fallout9
Posts: 631
Joined: Wed Oct 03, 2018 20:37
Has thanked: 51 times
Been thanked: 217 times

Re: Programming Microstick mode switch?

Postby fallout9 » Tue May 19, 2020 5:43

Congrats on getting an excellent joystick! :) To program the ministick as you wish make sure you're flashed and calibrated properly, like in this video: https://youtu.be/mCajFZ9e9gw

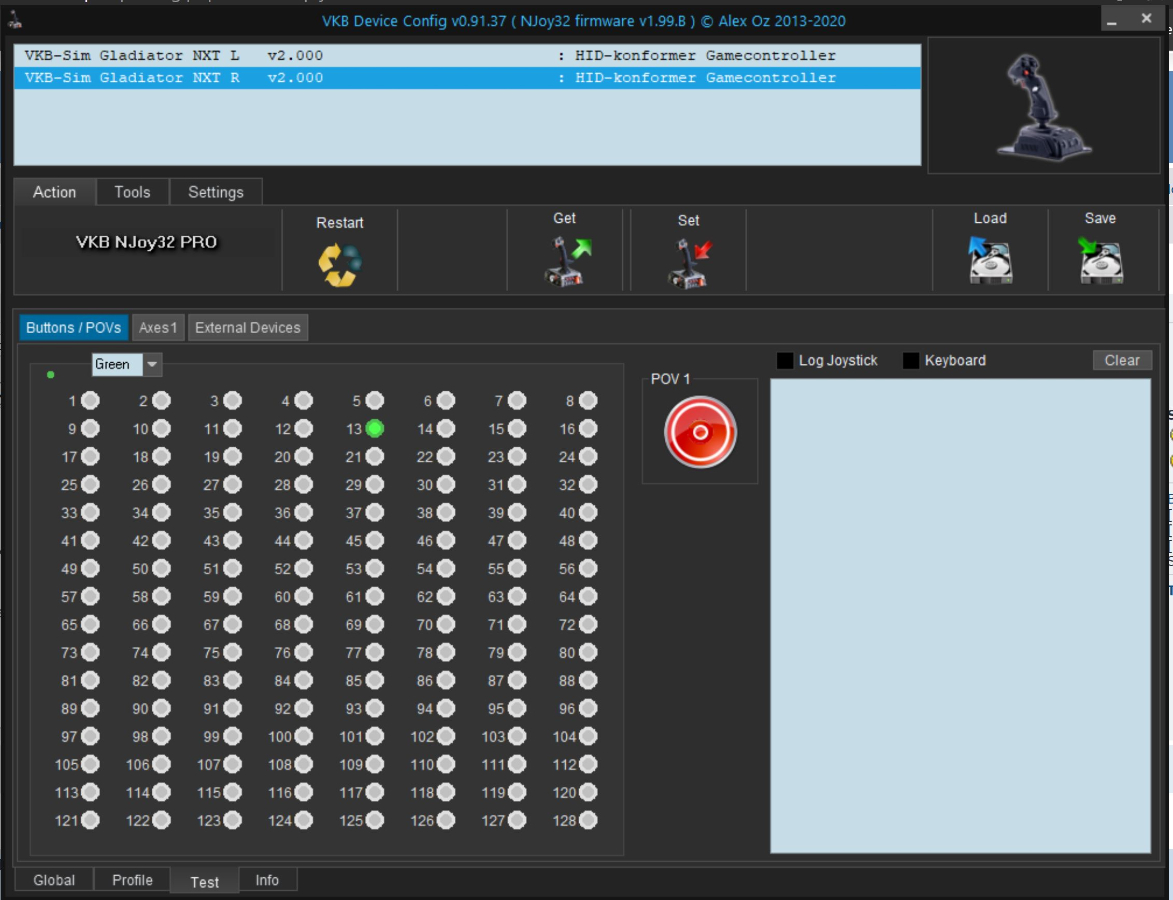

After that open the configurator, go the Physical buttons panel, click on the uSSw button and set it as TempoB. Hit Set at the end in the Action tab. Tempo Time could get adjusted in Global/Common panel.
Attachments

KiwiPete
Posts: 2
Joined: Sat May 02, 2020 2:49
Has thanked: 3 times

Re: Programming Microstick mode switch?

Postby KiwiPete » Tue May 19, 2020 6:39

Ahh! Thank you so very much. Exactly what I was looking for!
I missed the SET step. Doh!

Cheers Fallout9 - Have a virtual beer on me. :D

Thanks for the support.
Salute!

KiwiPete - A Flight Sims and Space Simmer. PC Gamer forever and always!

User avatar
fallout9
Posts: 631
Joined: Wed Oct 03, 2018 20:37
Has thanked: 51 times
Been thanked: 217 times

Re: Programming Microstick mode switch?

Postby fallout9 » Tue May 19, 2020 6:44

No worries! Just don't stop playing with the software, it's very powerful and handy. If you have more questions don't hesitate to ask :)
