GF III with Avia-S Cams, leaning right

[bad_karma]

Hi all,

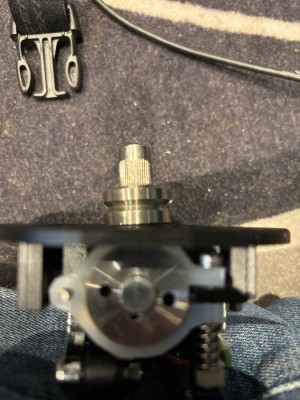

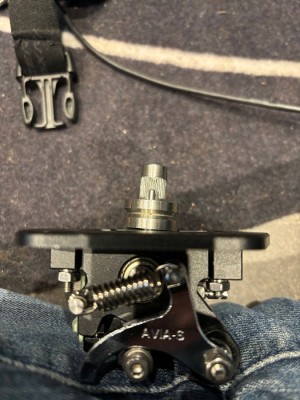

just wanted to check something, i have a GF Mk.III since somewhere 2021, flying mostly with a 200mm extension and never really noticed this "leaning" of the stick? I opened it up yesterday to play around with some springs and noticed that the center mount (where you connect the stick) is not angled 90° with the base (see pictures). AFAIK it was always there but didn't pay much attention as i tought it was part of the rather low springs combined with the 200mm extension...

Is this normal? i'm using the Avia-S cams and no extension atm. It looks like at least 5° off to the right...

at first sight i see no real way of correcting this

[fallout9]

If you're still on the factory springs they're there only to hold the gimbal in place rather than a suggested setup. I would advise to add up some more springs, or at least completely disengage the dampeners.

[bad_karma]

i played around with the springs, ended with 2x 50 springs => no change
releasing the dampers also results in no change

[Ron61]

Try installing another cam on this axle - Avia-H and softer springs. Are there any changes?

[bad_karma]

tried the Avia-H cams, no change. It looks like the connector piece (the shining metal part) is bend or something. Don't know how this is possible as it looks really sturdy.

[fallout9]

More focused pics with the issue please.
