How to set up in THQ Axis 2 for MSF Game (GladiatorNxtEvo + GNX-THQ)

[FranSpain]

- I have a GladiatorNxtEvo connected to a GNX-THQ.
- Game: Microsoft Flight Simulator 40th Anniversary.

How do I set up in GNX-THQ the number 2 axis for the left axis z of Msf?

Rot Y max value: 65535

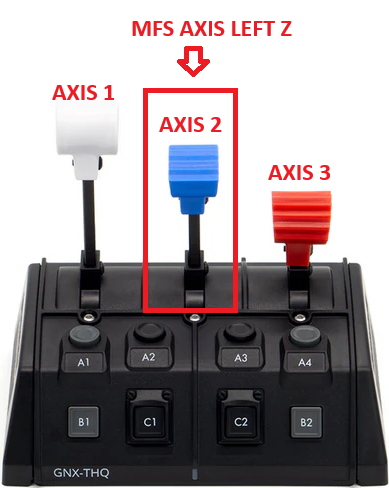

GNX-THQ the number 2 axis --> Msf left axis z.

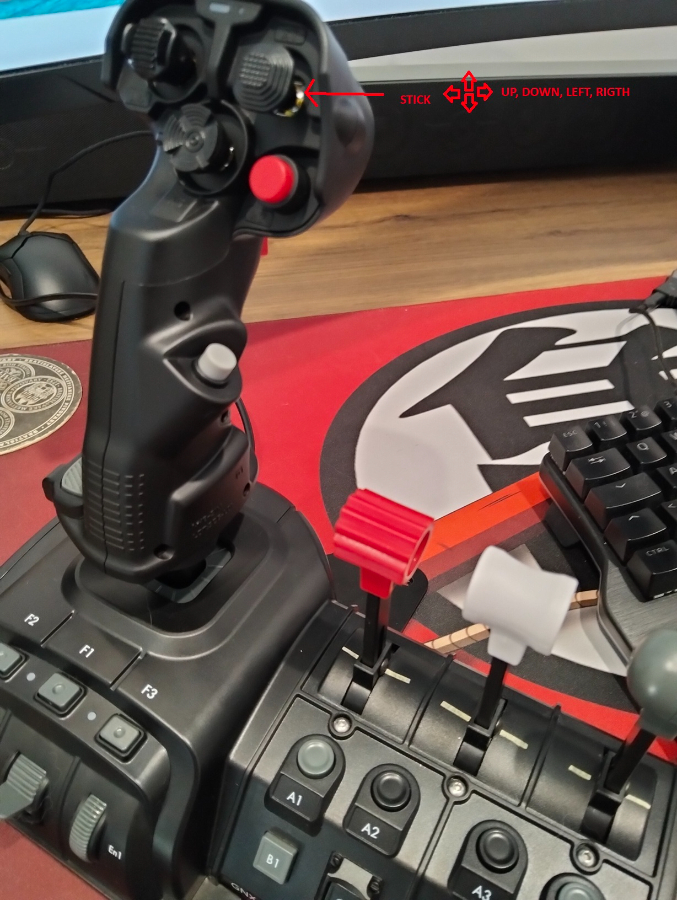

SGC stick only: up, down, left, right.

Note: Attached photos configuration.

[Ron61]

Do you have a push-button module instead of a ministick on your SCG grip, or are its axes simply disabled?

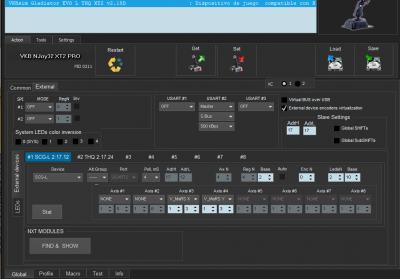

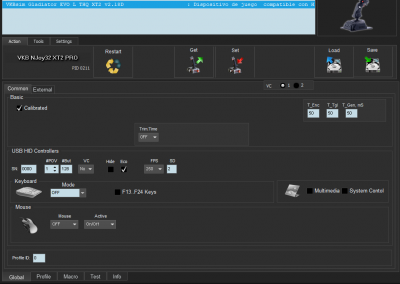

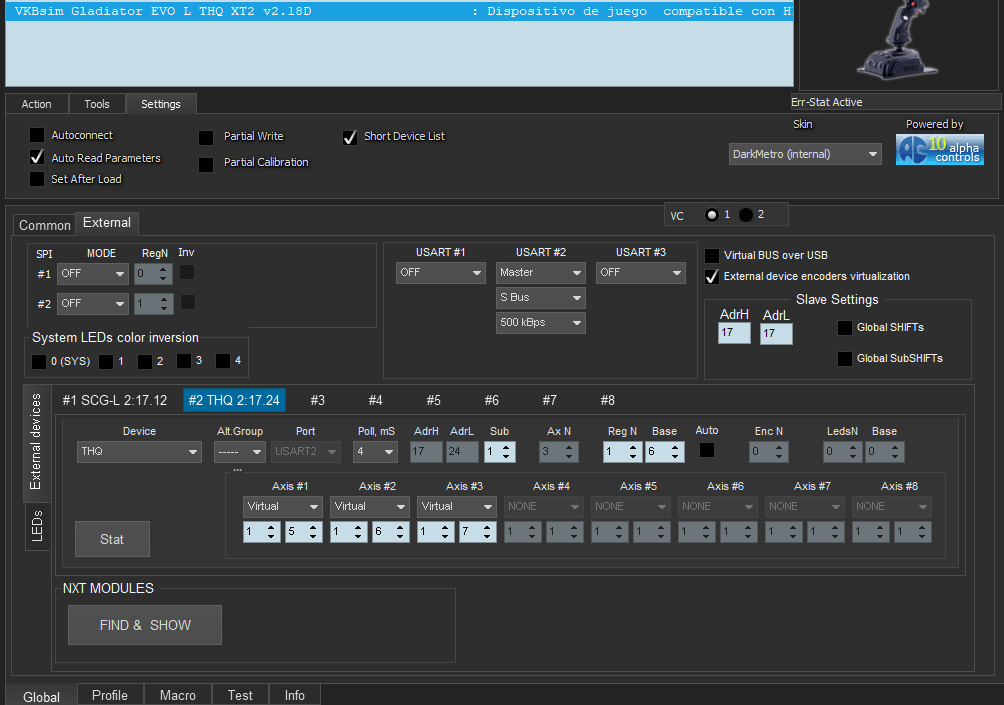

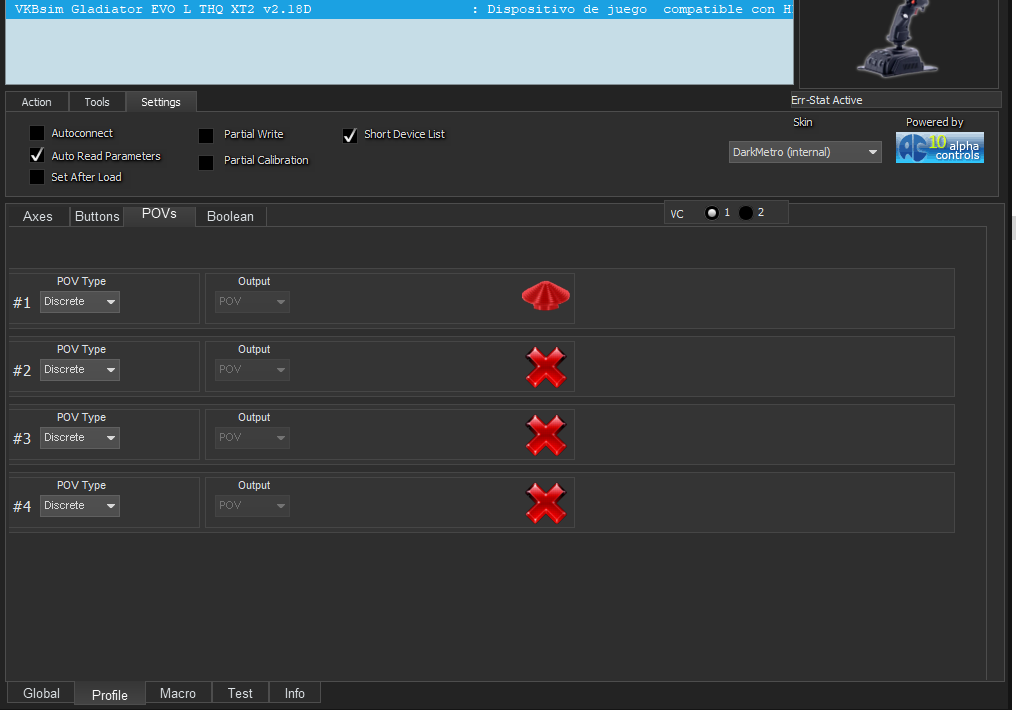

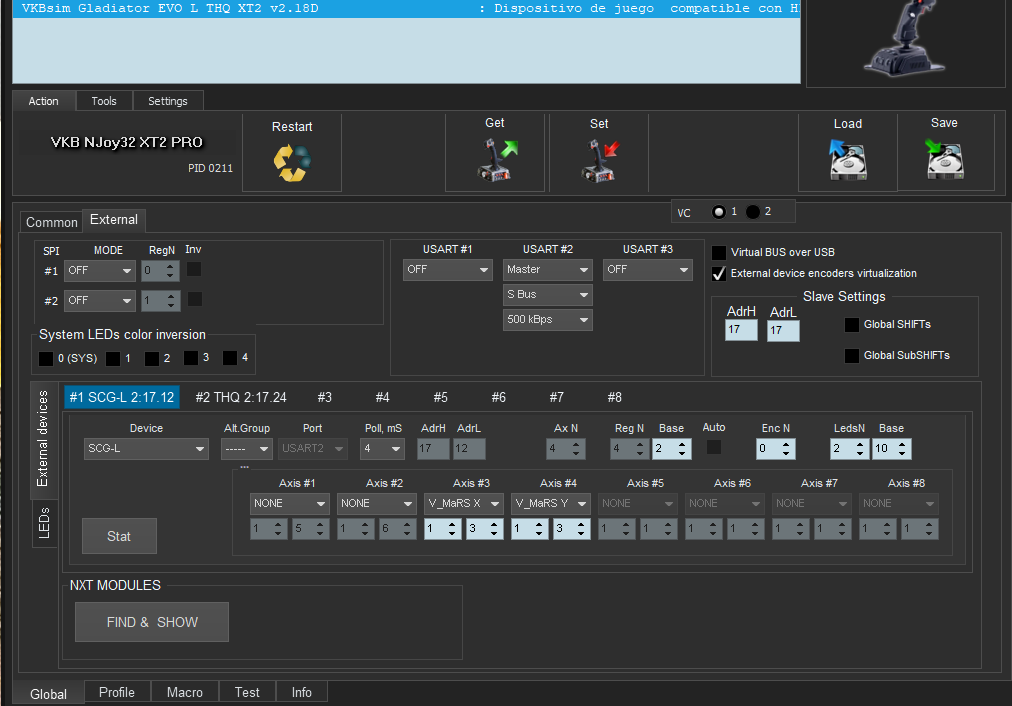

Show the tabs Global-Common, Global-External Device-#2 THQ 2:17:24, Profile-Axes-VC2, Profile- POVs.

[FranSpain]

Updated Information and images configuration first post

[Ron61]

Don't crop the screenshots, the top line is not visible on them.
Try updating the configurator and firmware from here.

[FranSpain]

- Only one device is displayed in the configurator: "VKBSim Gladiator Evo L THQ XT2".
- The SGC and THQ are not connected via USB to the PC (only SGC).
- The THQ is connected to the SGC.
- The SGC is connected to the PC.

Note: This is not a firmware issue.

[Ron61]

Displaying the top line is necessary to understand which version of the configurator is used.
I still don't understand the problem, what and where does not work?
Does the axis in Test work from 0 to 65535?

[FranSpain]

Version

[FranSpain]

Rot Y max value: 65535

[Ron61]

The top line shows the configurator version and the recommended firmware version for it. Newer firmware (numbers above) can be used, older ones cannot.

[FranSpain]

I'm using that firmware version because higher versions cause problems if you have an SGC connected to THQ. Other users have reported this problem on the forum.
viewtopic.php?f=25&t=8310&hilit=calibration

My problem is a configuration issue.
How do I configure one of the THQ levers, number 2 "Rot Y" on the left Z axis?

[Ron61]

What do you mean by axis tuning? What do you want to do and can't? Please describe in more detail.

[FranSpain]

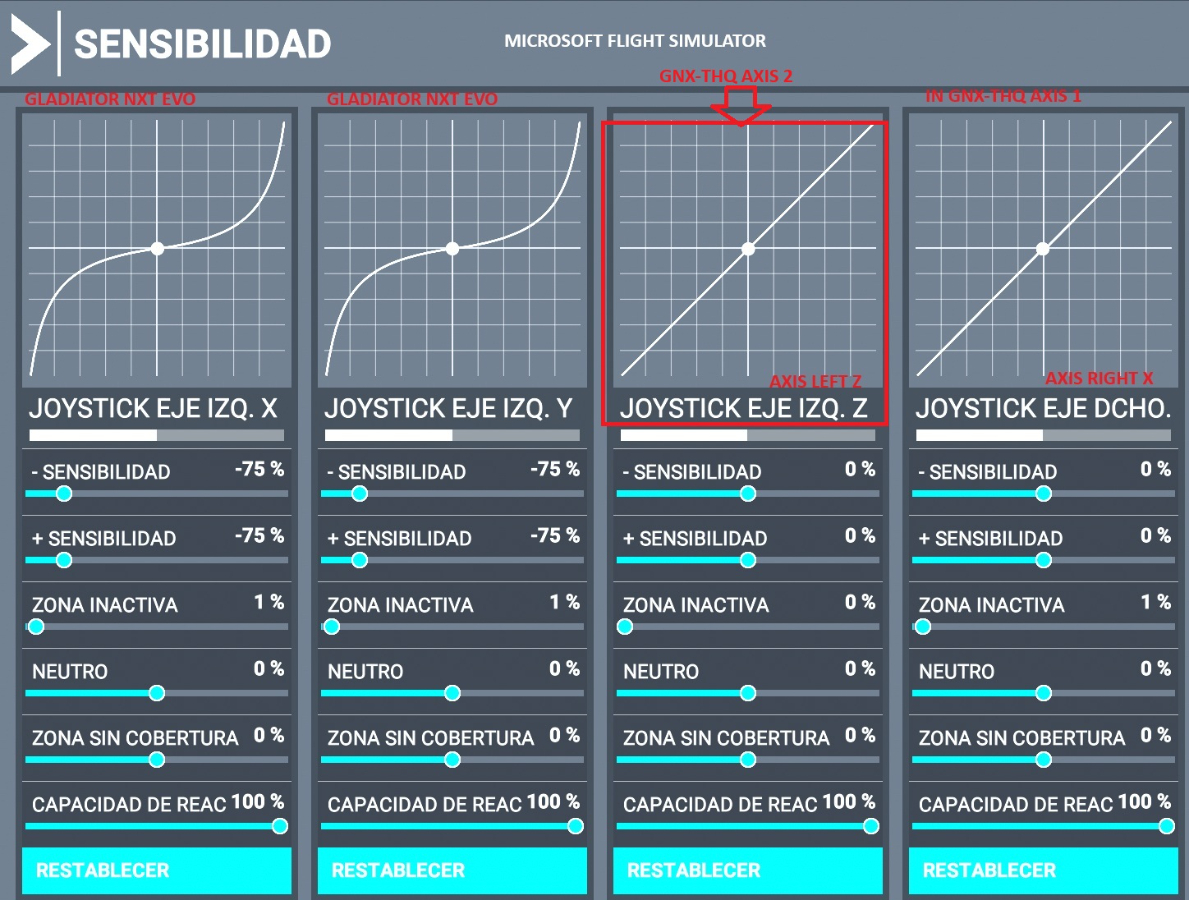

- The "Microsoft Flight Simulator" game has an "Axis Sensitivity" section in the configuration menu (4 configurable jostick axes in one control).
- The game identifies the GladiatorNxtEvo + GNX-THQ as 1 controller.
- The game in one control identifies a total of:
-- 2 GladiatorNxtEvo axes.
-- 1 GNX-THQ axis.

- GNX-THQ axes/stick:
-- Number 1 automatically assigned in the game (right joystick x axis).
-- Number 2 unassigned.
-- Number 3 unassigned.

- In the VKB configuration program, the GNX-THQ axis/stick number 2 is the "Rot y".

I want to configure the "Rot y"/GNX-THQ stick number 2 in the VKB program so that the game identifies it as the left joystick Z axis.

[Delta]

Joystick R-Axis X and Joystick L-Sxis Y do not mean "left joystick X-axis" and "right joystick Y-axis", but "rotational x axis of joystick" and "linear y axis of joystick".
And controller mapping usually works by editing the in-game bindings, not by making the controllerconform to the game's automapping.

[FranSpain]

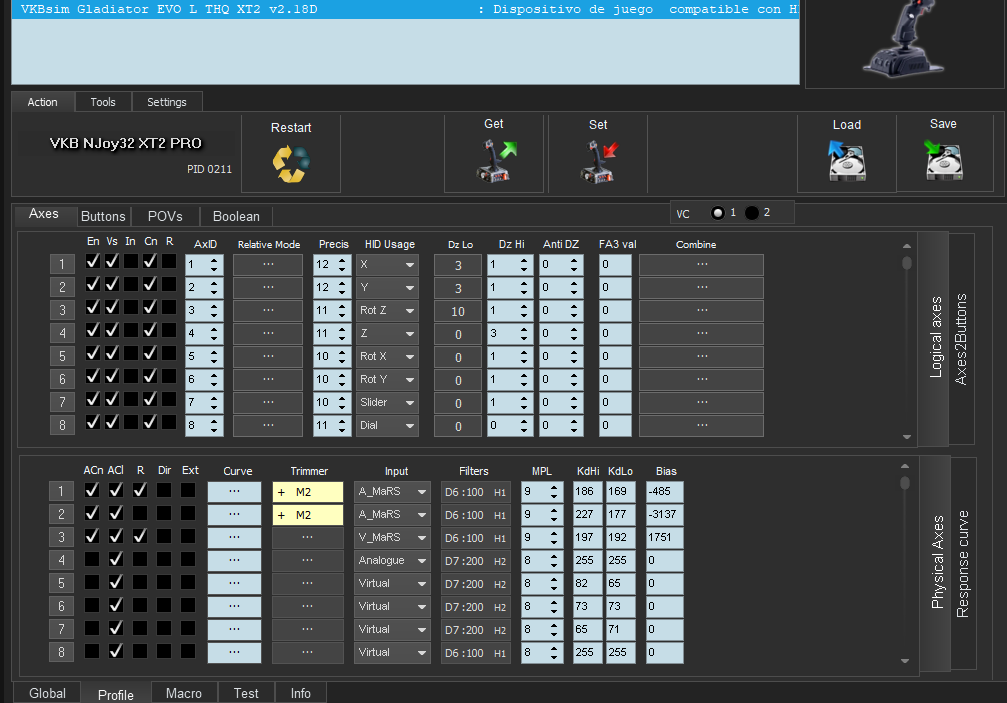

Solved... in the VKB configuration program, "Configuration Profile" menu, and "HID Usage" column.
Change:
- Z to "Rot y".
- "Rot y" to Z.

Note: The assignment cannot be changed in-game.

[Delta]

It can, but not on the sensitivity screen. Ypu have to go through the button assignments (be sure to set the filter to "all")
