ButtonD Press Delay is ignored

[jukelo]

Issue: When holding a ButtonD button (and not pressing the Master button), the Press Delay option is ignored. Instead, the ButtonD's virtual button will only fire after ~150ms have elapsed.

Firmware: 2.18.F, 2.18.D, 2.18.5, 2.15.1
Software: v0.93.18

Steps:
On default config EVO SCE,

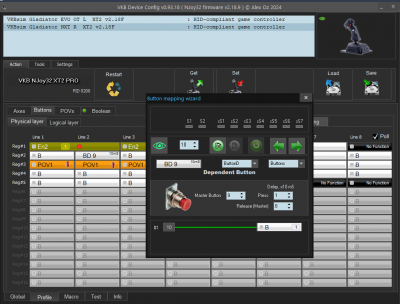

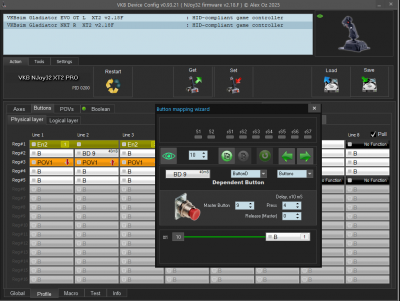

• Set up Physical 10 as Button D. Master = Physical 9, Press Delay = 10ms.
• In the Test tab, press the first trigger stage, without going to the second stage:

  • Logical 1 fires after a delay much longer than 10ms

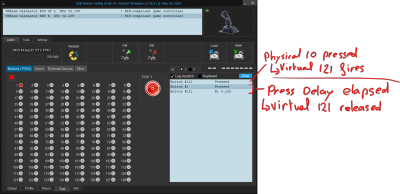

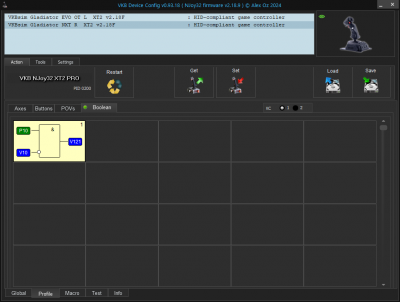

Setting up a 2AND boolean firing virtual 121 as soon as the ButtonD Physical button is pressed and turning off when the ButtonD virtual button fires allows one to measure (roughly) the Press Delay duration (plus or minus the overhead from executing the boolean):

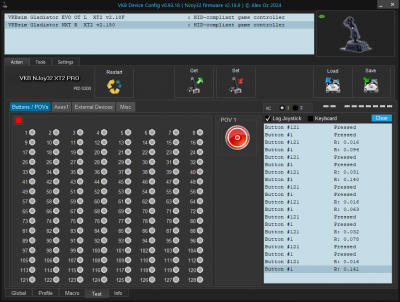

Virtual 151 here appears to be pressed for approximatively 150ms between activation of Physical 10 and activation of Virtual 10, which is the max Press Duration.

When testing with 2.15.0 (which does not have a Press Delay option), the Boolean registers a press duration for Virtual 121 between 16 and 32ms.

[Alex Oz]

there are acceptable delay ranges for this function:
https://www.njoy32.vkb-sim.pro/home/inp ... ns/buttons

Code: Select all

Delay parameters:

Press - delay in turning on the 1st button when pressing the trigger. The delay allows you to "skip" the button press when pressing quickly. Recommended values ​​- 20-40 mS

Release - delay in turning on the Master Button button after releasing the 2nd button. Allows you to "skip" pressing the 1st button when fully releasing the trigger. Recommended values ​​- 60-100 mS

[Icer_CRO]

Sorry for resurrecting this old question, but I can't get any delay options with VKB Config 0.93.17 (Have the GF Ult TW XT2 v2.115)

Has this been dropped completely? The manual states the various delay options, as does this post...

[jukelo]

The delay options for ButtonD were introduced in firmware v2.15.0

[jukelo]

there are acceptable delay ranges for this function:
https://www.njoy32.vkb-sim.pro/home/inp ... ns/buttons

Code: Select all

Delay parameters:

Press - delay in turning on the 1st button when pressing the trigger. The delay allows you to "skip" the button press when pressing quickly. Recommended values ​​- 20-40 mS

Release - delay in turning on the Master Button button after releasing the 2nd button. Allows you to "skip" pressing the 1st button when fully releasing the trigger. Recommended values ​​- 60-100 mS

The problem is that the Press delay setting entered by the user is ignored and is instead forced to be ~150ms regardless. A Press Delay value of 20-40ms will suppress the first stage's virtual for 150ms, just like a Press Delay of 80ms (or 0ms) will.
This makes it impossible to ignore the 'skip' behaviour or adjust its delay.

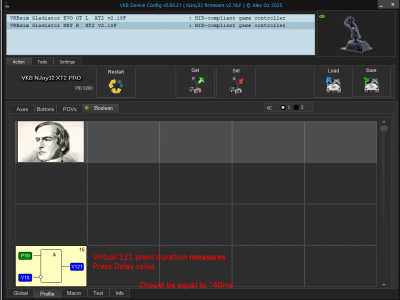

Holding the first stage of the trigger (not pressing the second stage) I use Virtual 121 in this setup to measure the delay between the press of physical 10 and the activation of virtual 10, giving me an (approximate) measurement of the actual Press Delay value.

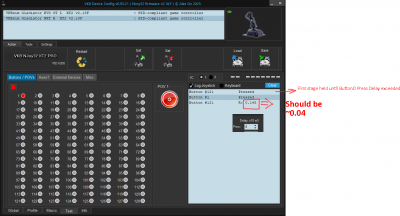

Virtual 121 should be released after ~40ms of being pressed, instead I get 145ms:

Adjusting ButtonD Press Delay to 110ms, I get 155ms on the Virtual 121 press duration instead of ~110ms.

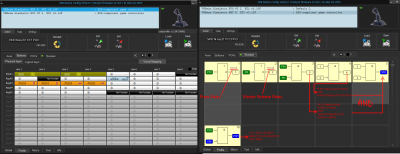

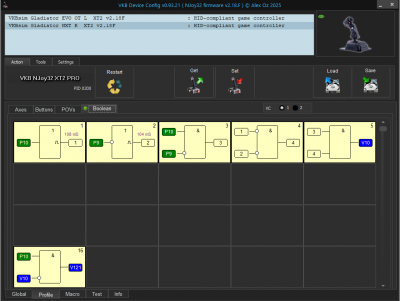

By comparison and to validate the measurement method using Virtual 121, here is a reproduction of the ButtonD behaviour using booleans which respects the 'Press Delay' value (set by adjusting the duration of the Boolean 1 pulse length). Physical 10, the trigger first stage, is set to 'NoF', Virtual 10 is left to default Logical 1.

With a Boolean 1 pulse length of 40ms, I measure (using virtual 121) a press duration of ~48ms, good enough:

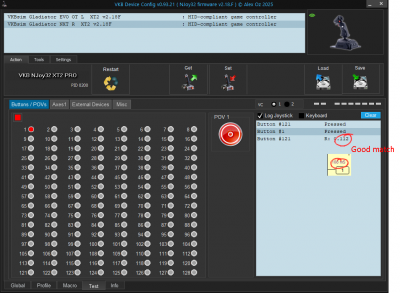

With a Boolean1 pulse length of 110ms, I get a press duration of 112ms, a close match again:
