MCG Gunfighter mk3 Button repeating twice

[_Mals_]

Hi, I have a MCG gunfighter mk3 Ultimate and when I press the #1 button, it press at the same time the #94, #2 will be #95, etc.
When it's time to map keys in some game it give me some kind of headache...
I can't find anything about that issue (if it was).

[fallout9]

Something must be messed up on the profile. Run VKBDevCfg, click the Default button under the Tools tab, then calibrate.

[_Mals_]

That did not fix the issue, do you think I should delete the profile/gunfighter and restart the flash it from the beguining?

[Victorus]

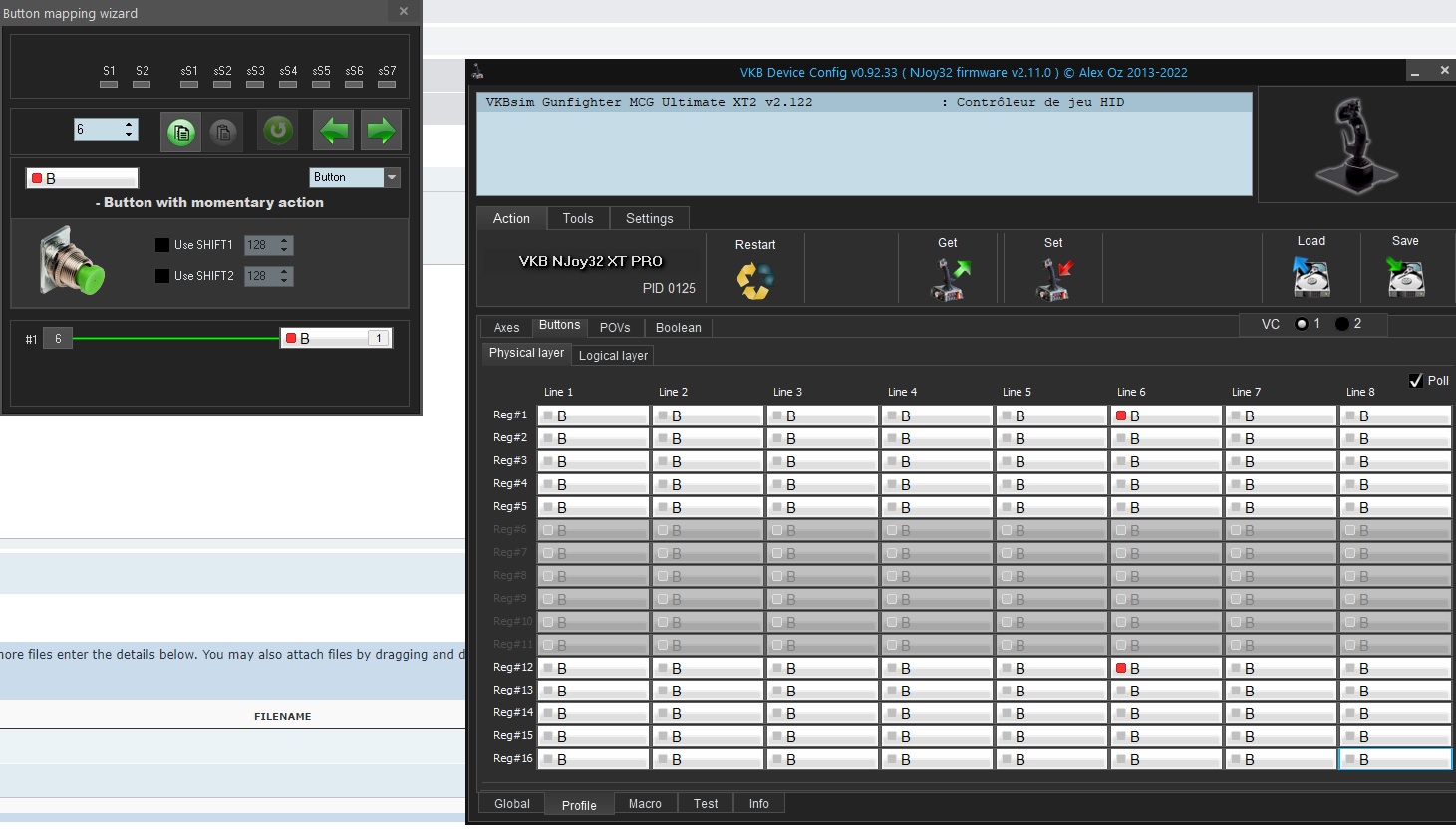

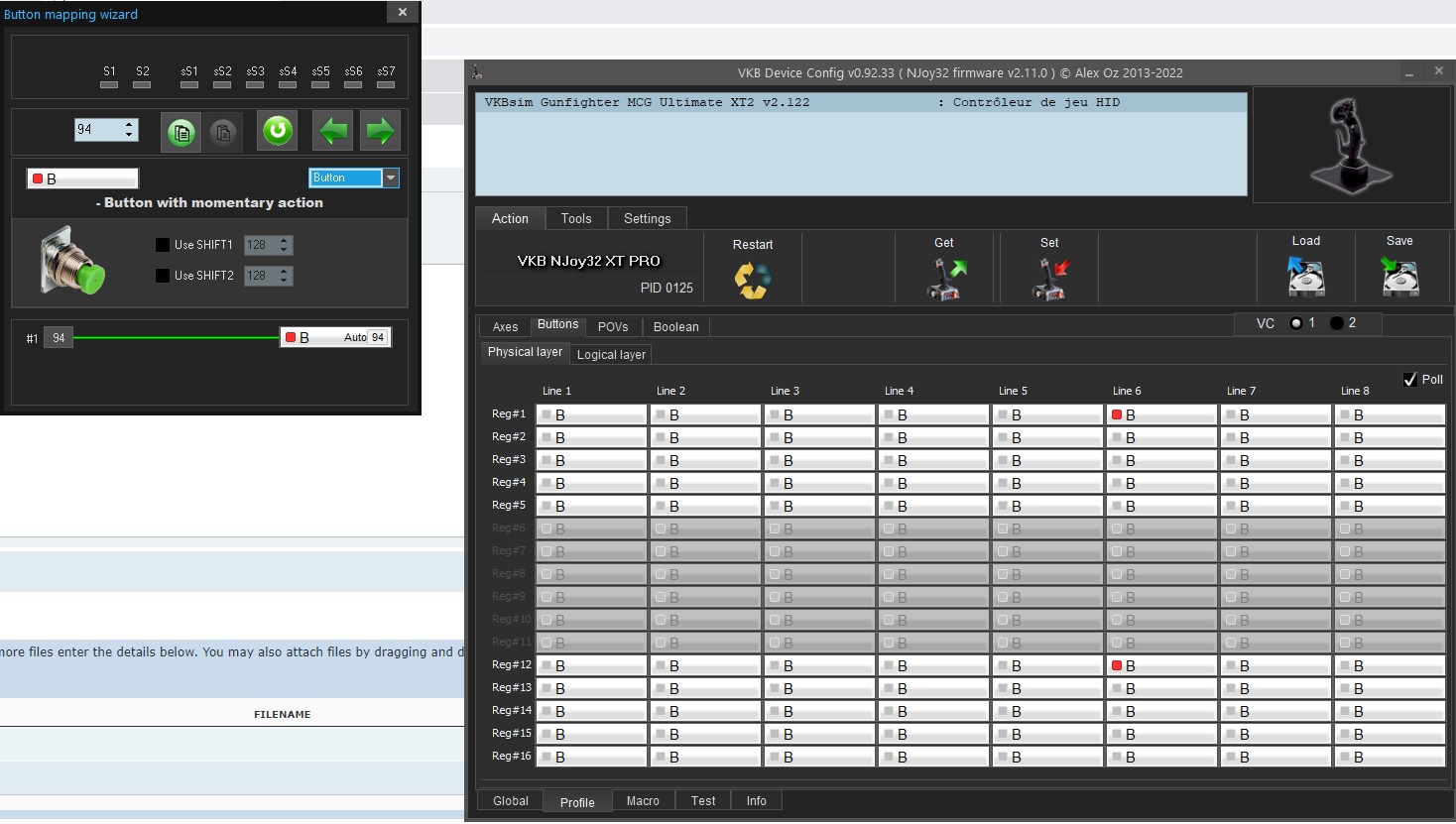

Please show screenshots of Physical and Logical Buttons tabs.

[_Mals_]

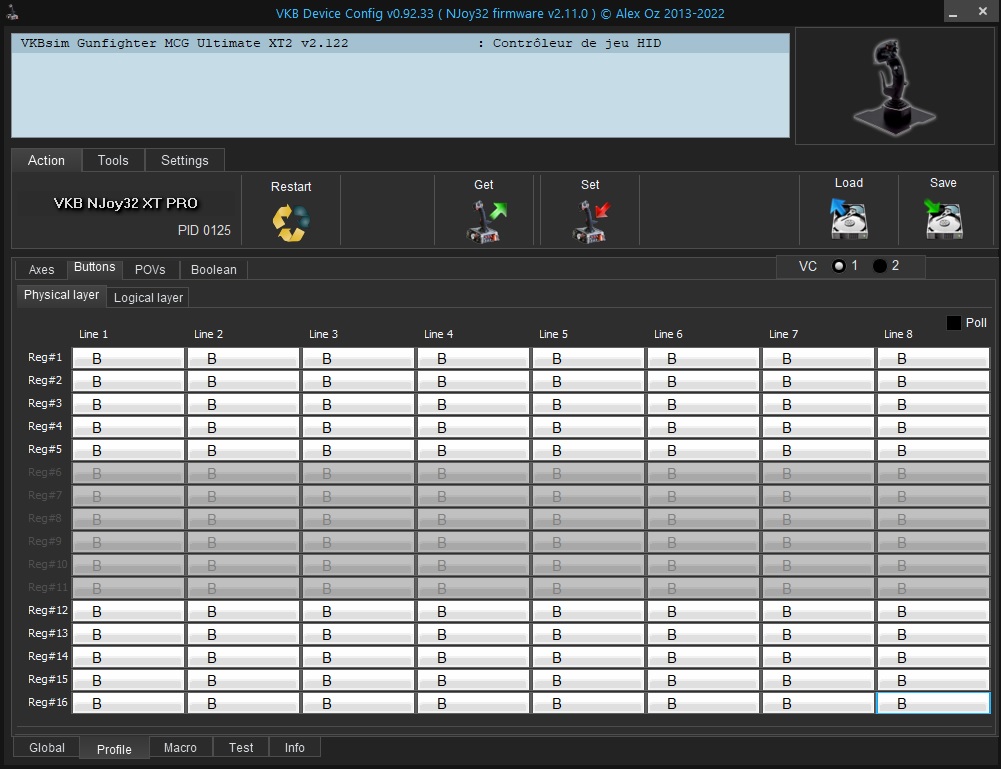

here they are

[Ron61]

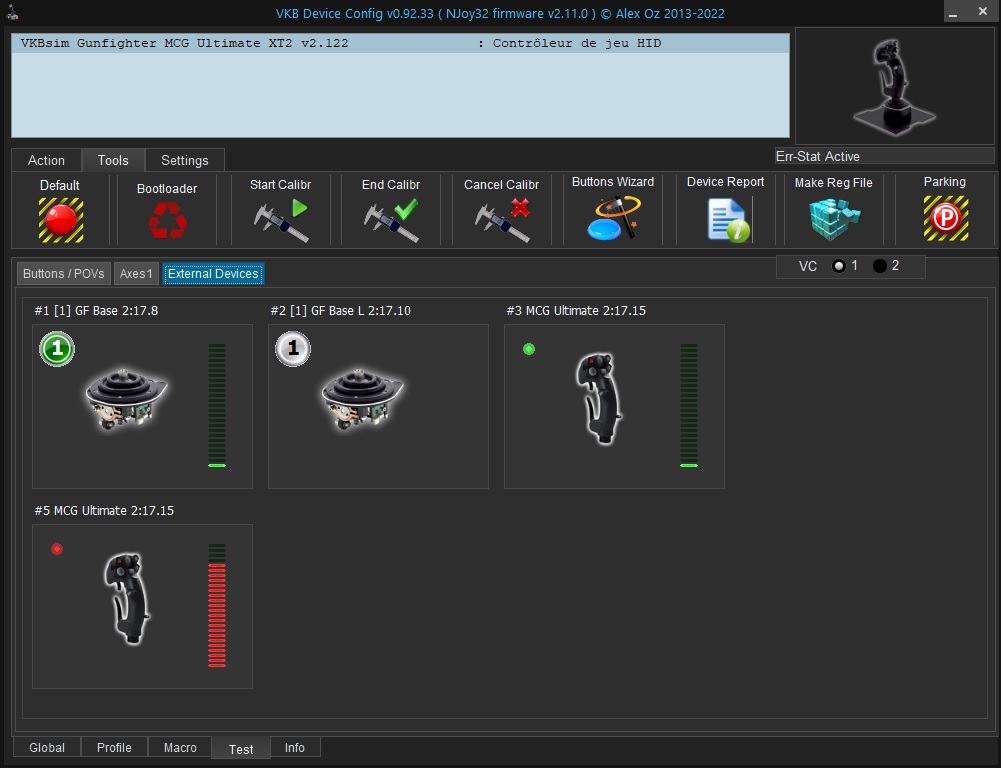

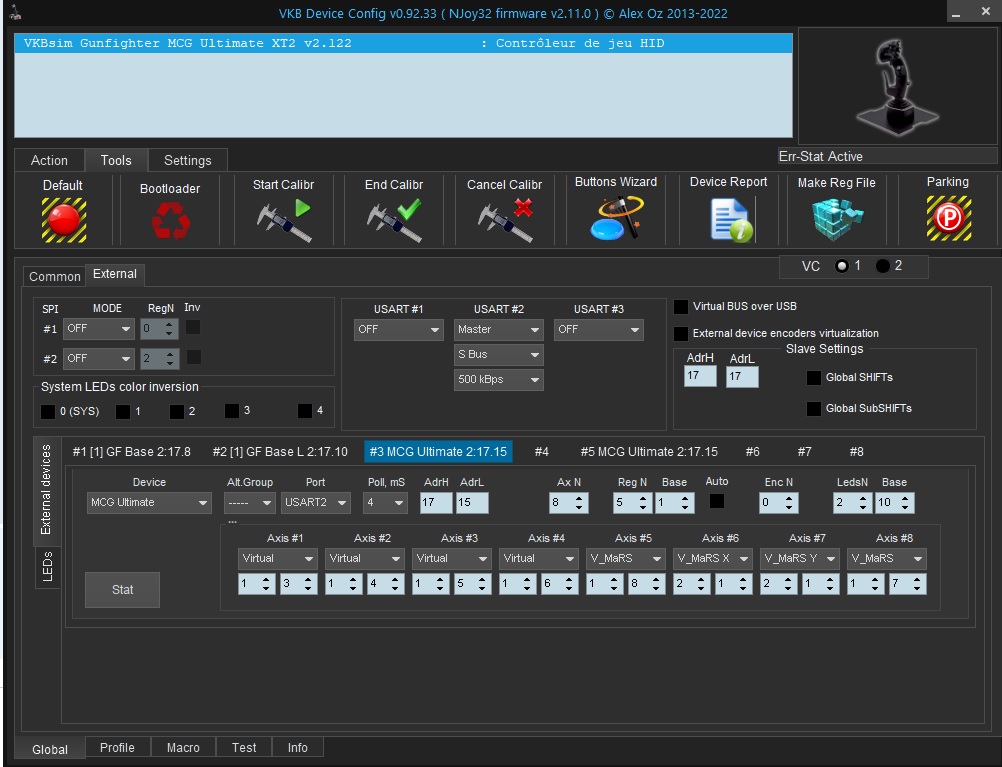

The problem is in the handle settings (double). This can be viewed in the Global-External tab. It is fixed by resetting to default with the button in the configurator, followed by calibration of all axes or manual editing of parameters. But I need a screenshot of the above tab and also Test- External Devices.

[_Mals_]

I see that I have a second mcg that is red, should I delete it? Also if I reset to default, I will need to re-enable the mcg brake button and the second trigger?

[Ron61]

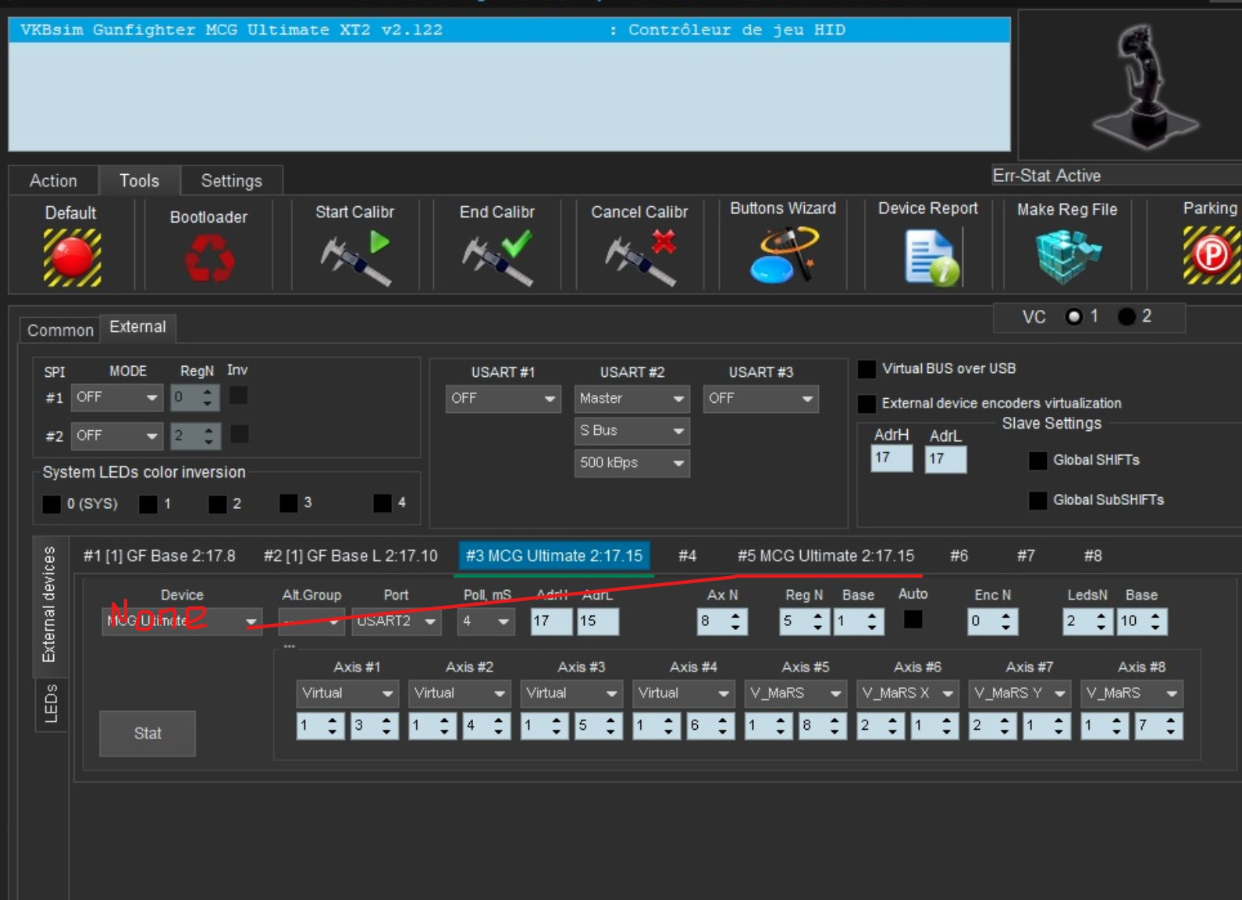

There are two MCGUs in your picture, you need to leave only one, green. Select red, follow the arrow and set to None. Write it to the controller with the Set button and everything should work.

[_Mals_]

Yes it’s all good now! Thank you!
