Right stick C1 hat/rapid trigger issue

Moderator: AdminGroup

Jim875
Posts: 7
Joined: Mon Aug 08, 2022 4:56
Has thanked: 1 time

Right stick C1 hat/rapid trigger issue

Postby Jim875 » Tue Aug 09, 2022 6:39

I purchased a pair of NXT EVO Premium space edition week ago, and I discovered couple of minor issues with the right stick

This first issue is C1 hat switches on my right stick doesn't feel the same on that of the left.
Each switch on left C1 feel distinctive as it provides enough return force and clear click sound.
The right C1 switches, however, feel mushy and provide little click sound when clicked.
It also feels harder to press in general, and sometime during gaming I can't tell if a button is pressed.

The second issue is the right rapid trigger has faint creaky noise when pressed or released.
In some occasion, it doesn't return to its original position after the trigger is released.
Comparing with the left rapid fire trigger, the right rapid fire trigger seems to have weaker spring force.

Can these issues be solved?

Thx

User avatar
fallout9
Posts: 4260
Joined: Wed Oct 03, 2018 20:37
Has thanked: 181 times
Been thanked: 1008 times

Re: Right stick C1 hat/rapid trigger issue

Postby fallout9 » Tue Aug 09, 2022 7:51

Pull out the C1 hat cap and see if it's in proper position.
About the trigger, open up the grip and see what's happening in there. Take pics and post them here if unsure.

Jim875
Posts: 7
Joined: Mon Aug 08, 2022 4:56
Has thanked: 1 time

Re: Right stick C1 hat/rapid trigger issue

Postby Jim875 » Tue Aug 09, 2022 9:42

Just pull out the white cap as shown here at 1:40?
https://www.youtube.com/watch?v=rYu8erD2BtM&t=182s

Is that a proper way to it? Do I have to open it up to check?

User avatar
fallout9
Posts: 4260
Joined: Wed Oct 03, 2018 20:37
Has thanked: 181 times
Been thanked: 1008 times

Re: Right stick C1 hat/rapid trigger issue

Postby fallout9 » Wed Aug 10, 2022 3:48

First see if the cap is in the proper position.

Jim875
Posts: 7
Joined: Mon Aug 08, 2022 4:56
Has thanked: 1 time

Re: Right stick C1 hat/rapid trigger issue

Postby Jim875 » Wed Aug 10, 2022 3:58

From the surface the cap looks fine? It not like its tilted or something.
It also on right orientation

User avatar
fallout9
Posts: 4260
Joined: Wed Oct 03, 2018 20:37
Has thanked: 181 times
Been thanked: 1008 times

Re: Right stick C1 hat/rapid trigger issue

Postby fallout9 » Wed Aug 10, 2022 6:23

But try to pull it out and put it back, maybe it was out of position.

Jim875
Posts: 7
Joined: Mon Aug 08, 2022 4:56
Has thanked: 1 time

Re: Right stick C1 hat/rapid trigger issue

Postby Jim875 » Wed Aug 10, 2022 6:55

Finally pull it up.
Nothing out of ordinary inside. The hat switches still feel to same after putting it back.
Do all units use the same hat switch from the same manufacturer?

User avatar
fallout9
Posts: 4260
Joined: Wed Oct 03, 2018 20:37
Has thanked: 181 times
Been thanked: 1008 times

Re: Right stick C1 hat/rapid trigger issue

Postby fallout9 » Wed Aug 10, 2022 7:31

They're all the same. Please fill up a service ticket, maybe you need a replacement.

Jim875
Posts: 7
Joined: Mon Aug 08, 2022 4:56
Has thanked: 1 time

Re: Right stick C1 hat/rapid trigger issue

Postby Jim875 » Fri Aug 12, 2022 7:20

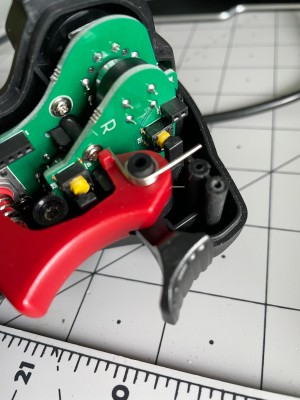

Is this what orientation of the spring suppose to look like?
The spring would tilt to the left after couple the rapid trigger presses. Is this a normal behavior?

User avatar
fallout9
Posts: 4260
Joined: Wed Oct 03, 2018 20:37
Has thanked: 181 times
Been thanked: 1008 times

Re: Right stick C1 hat/rapid trigger issue

Postby fallout9 » Sun Aug 14, 2022 1:01

Made a walkthrough for you:

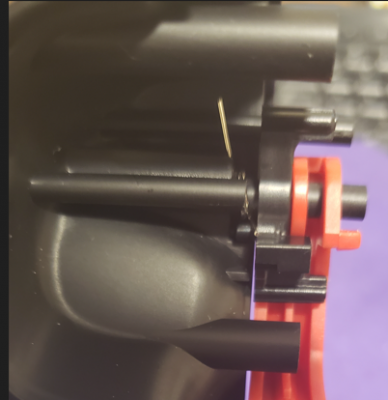

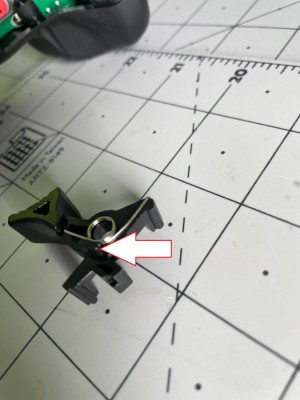

Notice the tab on the side of the rapid trigger.

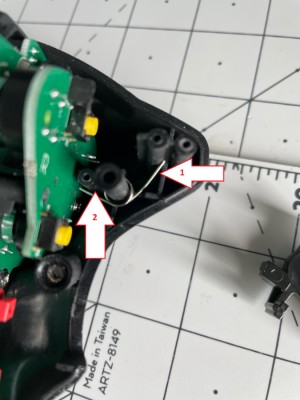

Seat the spring with the longer leg over the screw post 1, then seat the rapid trigger over the spring with the tab over the shorter leg 2.

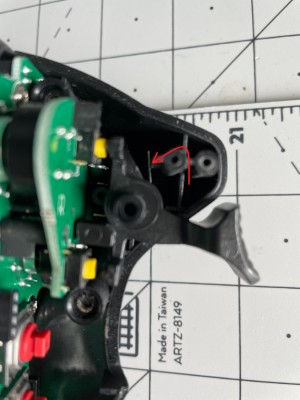

When the trigger is in position push the longer leg over the screw post with a narrow screwdriver.

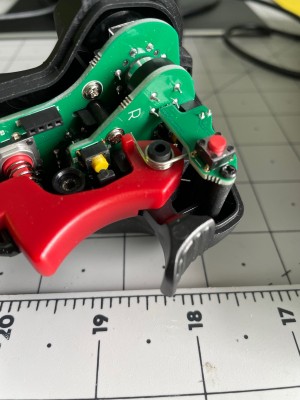

Install the red trigger and its spring as shown.


Connect the PCB and at this moment both triggers are secured in place.
