Gunfighter III MCE Ultimate Stick Stopped Working

Moderator: AdminGroup

HowardParker
Posts: 12
Joined: Thu Apr 07, 2022 5:03

Re: Gunfighter III MCE Ultimate Stick Stopped Working

Postby HowardParker » Fri Jul 01, 2022 12:11

I have a multi meter. What am i looking for and where do i test.

Thanks for helping

Ron61
Posts: 2851
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 42 times
Been thanked: 567 times

Re: Gunfighter III MCE Ultimate Stick Stopped Working

Postby Ron61 » Fri Jul 01, 2022 12:27

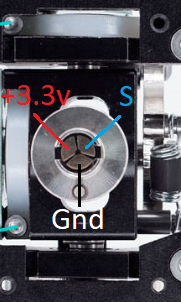

With the USB cable connected and the grip removed, you can see the voltage on the top pins relative to the bottom Gnd. It should be on the left + 3.3v, on the right - about + 2.6v or a little more.

HowardParker
Posts: 12
Joined: Thu Apr 07, 2022 5:03

Re: Gunfighter III MCE Ultimate Stick Stopped Working

Postby HowardParker » Sat Jul 02, 2022 8:01

Ron61 YOU ARE A LEGEND!!!!! Thank you so much. Using your information I checked the connector plate and sure enough there was one dead connector (the blue lettered one in your photo. I then used the multimeter and started working back through the wiring and found a connector where the wire plugs into a circuit board that was dodgy. It is an crap job but using a big magnifier and some tweezers I was able to repair the plug.

I am sure that there had been some issue with this since new as the LEDS on the joystick grip (red and green) have always both been on since day 1. My sons grip only had the green LED on and also one of the buttons never worked but now the button has started working the red LED has gone out and I think everything is perfect.

I am now off to jump into DCS and give it a good shakedown.

Thank you again.

Ron61
Posts: 2851
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 42 times
Been thanked: 567 times

Re: Gunfighter III MCE Ultimate Stick Stopped Working

Postby Ron61 » Sat Jul 02, 2022 10:56

Excellent!
One small measurement made a huge difference in solving the problem. I am pleased to. :D
