Gunfighter Mk.3 Ultimate not able to connect...

Moderator: AdminGroup

Ron61
Posts: 2490
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 506 times

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Ron61 » Sun Sep 19, 2021 12:42

Can you record a video of how you do it?

Jerrygeez
Posts: 22
Joined: Sat Sep 18, 2021 22:36
Been thanked: 1 time

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Jerrygeez » Sun Sep 19, 2021 12:58

Of course, is there somehow i can upload it to here?

Jerrygeez
Posts: 22
Joined: Sat Sep 18, 2021 22:36
Been thanked: 1 time

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Jerrygeez » Sun Sep 19, 2021 13:03

https://files.fm/jerryg/f/q9hx5su2h


https://sprend.com/download?C=f8dd3b9af ... afd6b58930

One of those might work, i guess it needs to download though.

I plugged in only the Blackbox this time, no gunfighter involved.

Ron61
Posts: 2490
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 506 times

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Ron61 » Sun Sep 19, 2021 13:28

I looked.
1. Try after flashing, just reconnect the USB cable to BB. It is desirable that the GF base is connected. By the way, which port is BB connected to (USB2,3, HUB)?
2. You can try to flash the BB with a different firmware, for example, from the T-Rudder pedals. Temporarily, to appear in the configurator, and then flash the desired one.
3. Start the firmware process from the configurator with the Bootloader button, so it will be more correct.
4. You can try later firmware and configurator from here by creating a different folder for this version.
5. Unplug the MCGU, leave only the base plugged in. Connect the grip after the device appears in the configurator.

Jerrygeez
Posts: 22
Joined: Sat Sep 18, 2021 22:36
Been thanked: 1 time

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Jerrygeez » Sun Sep 19, 2021 13:42

Appreciate the support but its still the same issue, after the flash it disconnects and when i open VKBDeviceConfig it doesnt reconnect, i always have to do the "SYS" button hold and cable out-in..

And im using USB 2.0 from the back of the computer, but ive tested every port already, same result.

Ron61
Posts: 2490
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 506 times

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Ron61 » Sun Sep 19, 2021 14:12

After the firmware, there should be 2 Windows sounds - disconnecting and connecting a new device. Until there is a second one, nothing will change in the configurator - it will be empty there. Please wait longer. One more tip - in the flasher before flashing, uncheck the Auto checkbox and take a screenshot after flashing.
Have you tried other tips - with the grip disabled, pedal firmware?

Jerrygeez
Posts: 22
Joined: Sat Sep 18, 2021 22:36
Been thanked: 1 time

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Jerrygeez » Sun Sep 19, 2021 14:29

I feel like ive tried all possible variations, grip mounted/unmounted, Gunfighter base + BB, only BB, every USB port, a bunch of different firmware, different versions of VKBDeviceConfig and bootloader, everything leads back to the device not connecting again in VBKDeviceConfig..
Ive also tried on 2 other separate laptops with the same result.
Attachments

Ron61
Posts: 2490
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 506 times

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Ron61 » Sun Sep 19, 2021 14:42

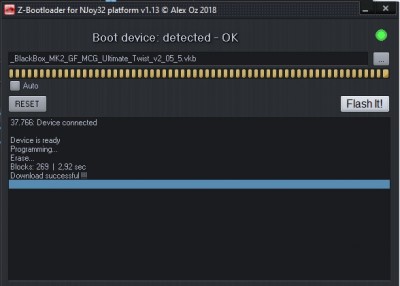

This is how the window should look after the firmware. You don't have that. I advise you to try flashing on another machine, laptop.


Are there any other devices connected to USB? Whether software is running, such as Gigabyte Aorus, Razer mice, Logitech - should be closed.

Jerrygeez
Posts: 22
Joined: Sat Sep 18, 2021 22:36
Been thanked: 1 time

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Jerrygeez » Sun Sep 19, 2021 14:58

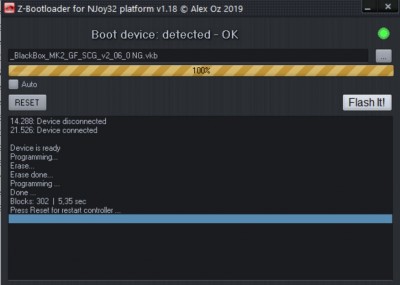

I get "press reset for restart controller..." if i choose "_BlackBox_GF_MCG_Ultimate_Twist_v2_05_5.vkb" the one for the old version of the Blackbox. but its still the same when i start DeviceConfig.

Ive closed all such things, cant find any Gigabyte Aorus but ive tried to close down ASUS Aura Sync. turned off all my RGB on my computer.
And the only USB connected when i try is a Logitech G5 mouse(i use a Razer mouse normally) and the VKB blackbox.

Ron61
Posts: 2490
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 506 times

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Ron61 » Sun Sep 19, 2021 15:47

Unplug the base and try to flash any BB MK2 firmware not required for MCGU. Try out the last ones, I gave a link to them earlier.

Jerrygeez
Posts: 22
Joined: Sat Sep 18, 2021 22:36
Been thanked: 1 time

Re: Gunfighter Mk.3 Ultimate not able to connect...

Postby Jerrygeez » Sun Sep 19, 2021 15:59

IT WORKED!!!!

i downloaded "_BlackBox_MK2_GF_MCG_Ultimate_Twist_v2_07_1" and flashed that instead of v2_05 ive used earlier, and now its working.
Wow, guys like you Ron61 and fallout9 on forums like these are the best! THANK YOU!
