Gladiator MK.I Not Recognized by Windows 10

Moderator: AdminGroup

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Sun Sep 12, 2021 16:03

Greetings,

My Gladiator Mk.I is no longer being detected by Windows 10. It is showing up in Device Manager as Unknown USB Device (Device Descriptor Request Failed) and is not being detected by any of the VKB software. I have tried the joystick on multiple computers and in different USB ports, none of them are registering the device. In addition, the lights on the joystick base no longer light up. I have attempted the “non-software” calibration and the hard reset on the stick and nothing has made any effect.
Please help me get this joystick working again as it is my favorite.

Thanks,

1 - Device model and version
VKB-SIM-Gladiator Mk.I
79D4F53973-ECC0CC6DD3
E239E4E544-71CB765449

2 - Controller Firmware version
Unknown - Cannot recall last firmware version

3 - Number and type of springs used
Default

4 - Тype of cams used
Default

5 - If VKB original software is used, please always mention its version
ZBootloader-C-v1_18
VKBDevCfg-C_v0.91.96
VKB_JoyTester

6 - Vkbjoytester screenshots.
See Screenshot

7 - Vkbdevcfg-c screenshots.
See Screenshot
Attachments

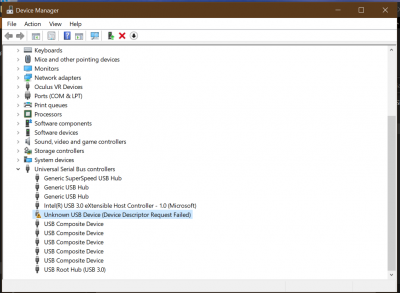

Scr Win10DeviceManager.png
Win10 Device Manager

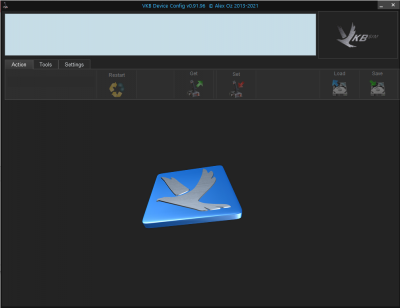

Scr VkbDevCfg.jpg
VkbDevCfg Screenshot

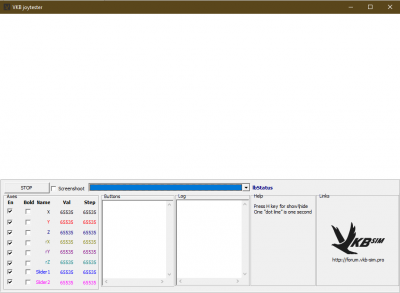

VkbJoyTester Screenshot

Ron61
Posts: 2525
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 507 times

Re: Gladiator MK.I Not Recognized by Windows 10

Postby Ron61 » Sun Sep 12, 2021 19:02

It looks like a problem with the connection to the USB port. And the first thing to check is the USB cable itself. If there is a tester, then you need to ring it for the presence of contact of all conductors.

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Re: Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Tue Sep 14, 2021 3:26

I used a volt meter to check the continuity on all the wires and leads in the USB, and they all appear to be working. The following is how they appear to be wired.

USB A Plug - Port Wires
Outer shell - black (thick)
Pin 1 (right most) - red
Pin 2 (right center) - white
Pin 3 (left center) - green
Pin 4 (left most) - black (thin)

What else can I check or do next?

Thanks

Ron61
Posts: 2525
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 507 times

Re: Gladiator MK.I Not Recognized by Windows 10

Postby Ron61 » Tue Sep 14, 2021 9:34

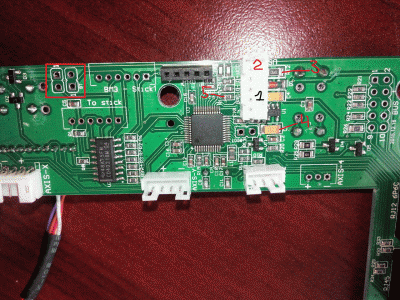

Once there is a tool, you can find out what stresses are between the points in the picture:
1-2 =
1-3 =
1-4 =
1-5 =
Inked+2 buttons.gif

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Re: Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Tue Sep 14, 2021 15:32

When will this tool be available? I'm currently unable to use my joystick and would like to get back to playing. Are there any replacement PCB's available that I can purchase for this?

Ron61
Posts: 2525
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 507 times

Re: Gladiator MK.I Not Recognized by Windows 10

Postby Ron61 » Tue Sep 14, 2021 15:49

English is not my native language, maybe that's how Google translate it.
I wrote that since you have a multimeter, then take measurements of the voltages at the indicated points.
This will allow you to make the right subsequent decision.

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Re: Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Thu Sep 16, 2021 6:02

The voltage readings are as follows:

1-2 = 5.03
1-3 = 4.96 on right side, left side of 1R0 = 5.03
1-4 = 3.34 on right side of C1, left side = 0
1-5 = 3.3 on both sides

4 pins on left side = top left & right = 0, bottom left & right = 0.2

Ron61
Posts: 2525
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 507 times

Re: Gladiator MK.I Not Recognized by Windows 10

Postby Ron61 » Thu Sep 16, 2021 11:02

There are several things to do before making the right decision:
1.disconnect the USB cable from the controller and carefully ring out all the wires in it for integrity and absence of a short circuit with the adjacent wire
2.if the cable is intact, then we connect it to the controller, but disconnect the cable from the sensors, buttons and grip - see the result in the configurator

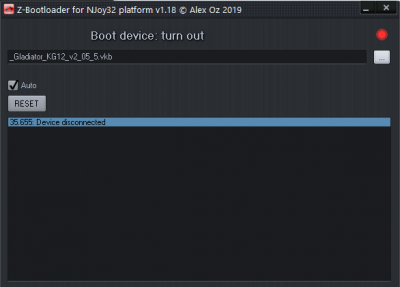

3.If there is no result, then by launching the configurator, disconnect the USB cable from the computer, close two Boot pins with tweezers (paperclip), and (without removing the jumper) connect the cable to USB, then open the Boot pins - see the result in the configurator
It is advisable to show screenshots from the configurator for points 2 and 3. You can upload a photo of the controller itself.

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Re: Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Sat Sep 18, 2021 3:02

Here are the next set of results:

1. No presence of any short or crosstalk with the connections in the USB cable. This tested good.

2. The configurator (I assume the VKBDevCfg app, but I tested it on all of them) shows no signs of any change with or without the sensors plugged into the main PCB. Still not displaying any information at all.

3. Attempting the hard reset also shows no sign of any change.

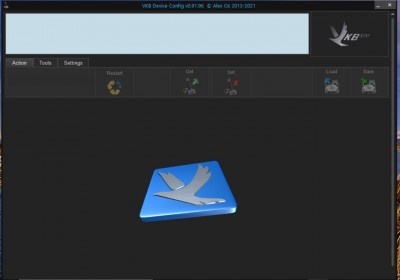

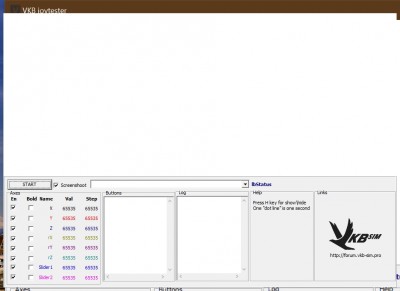

Screenshots for both steps were exactly the same, so I'm only posting one set of screenshots.
Attachments

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Re: Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Sat Sep 18, 2021 3:04

The controller photo isn't able to load to the website. It is in .jpg format and 0.99 MB. Is there a size limit or file format that will work better with this website?
Last edited by landericus on Sat Sep 18, 2021 3:07, edited 1 time in total.

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Re: Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Sat Sep 18, 2021 3:07

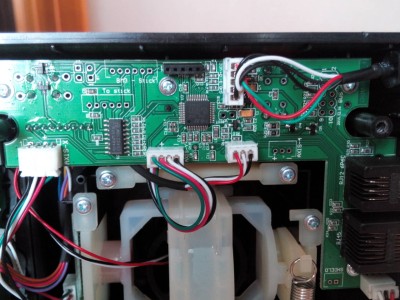

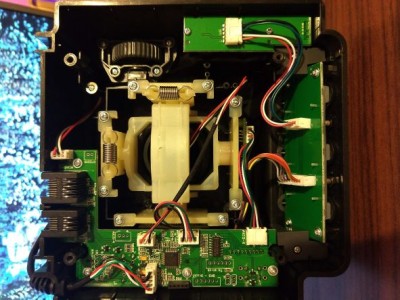

Here is the photo of the inside of the controller.
Attachments
Controller Insides.jpg

Ron61
Posts: 2525
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 40 times
Been thanked: 507 times

Re: Gladiator MK.I Not Recognized by Windows 10

Postby Ron61 » Sat Sep 18, 2021 9:58

Email sales@vkb-sim.pro about the controller board.

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Re: Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Sat Sep 18, 2021 15:01

I have emailed them and hope to hear back from them soon. I will update later. Thanks for all your help.

User avatar
ZERO_Thunder
Posts: 36
Joined: Thu Apr 25, 2019 5:04
Has thanked: 3 times
Been thanked: 6 times
Contact:

Re: Gladiator MK.I Not Recognized by Windows 10

Postby ZERO_Thunder » Wed Sep 22, 2021 5:43

Hello, I've send you a Email. Please check

landericus
Posts: 10
Joined: Sun Sep 12, 2021 15:06

Re: Gladiator MK.I Not Recognized by Windows 10

Postby landericus » Thu Sep 23, 2021 19:25

I've responded to the email.
Thanks
