Any way to use the MCG Ultimate thumbstick depress as a bindable button?

Moderator: AdminGroup

zencryst
Posts: 19
Joined: Mon Jul 05, 2021 8:12
Has thanked: 4 times
Been thanked: 1 time

Any way to use the MCG Ultimate thumbstick depress as a bindable button?

Postby zencryst » Sat Aug 28, 2021 13:30

Like the title says, is there any way to bind a logical button to the Master Mode thumbstick's depress?

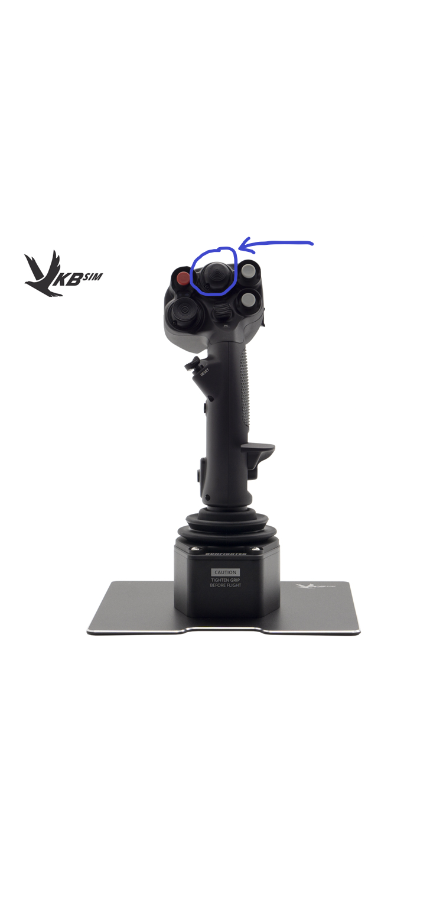

For clarification, this is the switch I'm referring to:

User avatar
fallout9
Posts: 5455
Joined: Wed Oct 03, 2018 20:37
Has thanked: 222 times
Been thanked: 1267 times

Re: Any way to use the MCG Ultimate thumbstick depress as a bindable button?

Postby fallout9 » Sat Aug 28, 2021 19:10

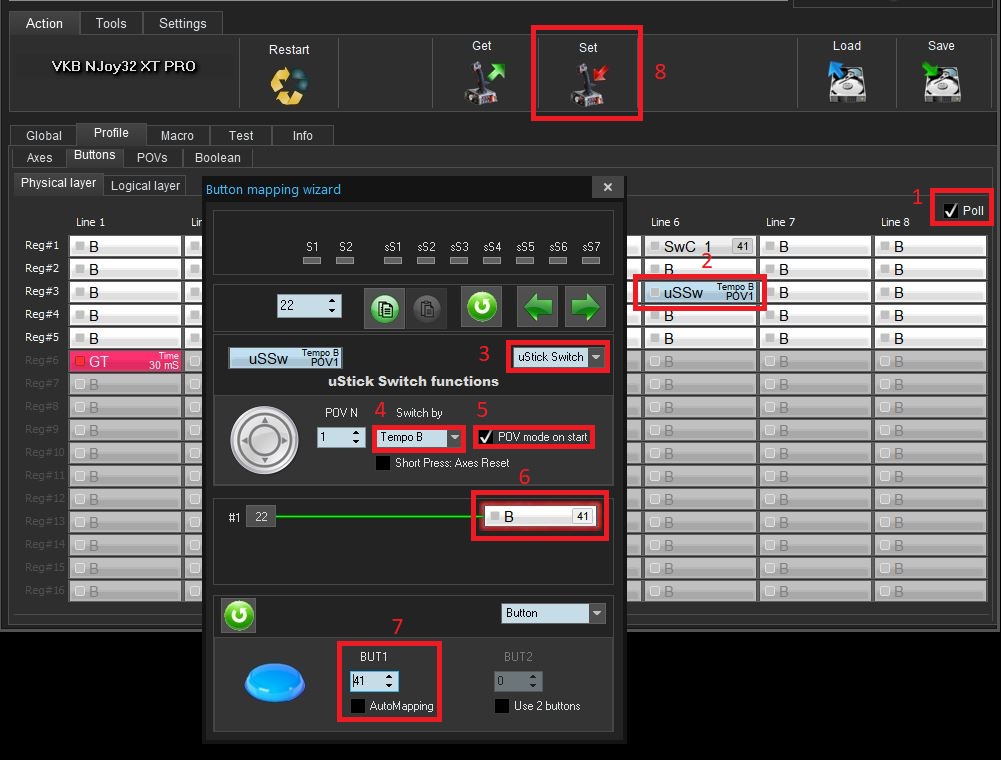

Do this:
- when in Profile/Buttons/Physical Layer check the Poll tab on the right side (1);
- click the center push button of the Master Mode ministick, then click mouse on the cell from the chart that's lightening up (2);
- in the new window make sure that's a uStick Switch (3);
- set that button up to get switched by TempoB (4);
- check the POV mode on start box (5) if you want it to start in POV mode; if you want axes mode at start leave it unchecked;
- click on the logical button cell (6);
- relocate the button to position 41 so it won't interfere with existing button mapping (7);
- close this window and hit the Set button to save the changes.

Now you'll have a short press on the Master Mode ministick as button 41, which could be used to any digital binding in games and a long press making the transition from POV mode to Axes mode and back.
