Hello All,

I have 2 Mk2 black box configured with old grips.
I d like to configure them with new grips but is failing when associating .vkb associated to the grip i want using the bootloader.

Could you plz help me?

Thx

Hi Simba,

More info is needed in order to get help. Like what are the old grips, what are the new grips, which firmware you're trying to flash, which software version you're using, what exactly does not work.
I think it would be helpful to post some screenshots showing the error. Also check this video: https://youtu.be/8Ht8yMsdlCQ and try to follow the steps; just be careful that there are 2 firmware versions for each stick - one unlabeled for the orange Black Box and the other one marked MK2 for the new black Black Boxes.

hello

thx for the answer some screenshots to show you my issues.

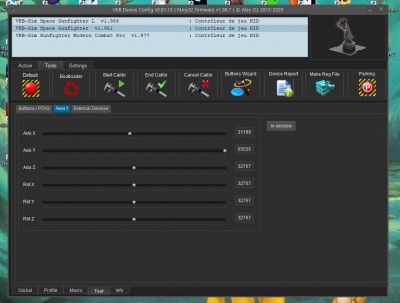

when i open VKBDevCfg-C_v0.91.15

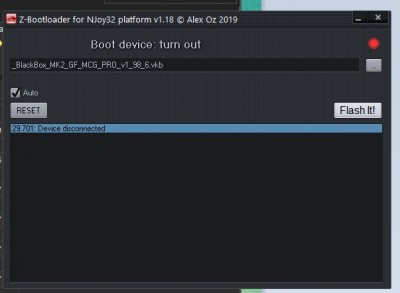

when i open bootloader las version with the good grip


At the end the black box is considered as disconnected

From your second picture I'd say the grip is not properly seated on the base, try to re-seat it; eventually clean up the 3 contact pads on the base shaft with a bit of cotton and alcohol and verify the pins on the bottom of the grip. If everything is ready for flashing the bootloader dialog box (the one in the second picture should display a message that the device is connected and there should be a green light there.
Don't forget to disconnect the USB cable from the Black Box when swapping grips.

i am 100% sure that the grip is well set.
when i connect it to a black box with mcp pro already set it is working fine.
so ...

Sorry, I'm missing something here. Could you please be more specific:
1. What grips do you have? Which ones are the original (working) and which the new ones (not working)?
2. What bases (MKI, MKII, MKIII) do you have and how many?;
3. What black boxes (orange or black) do you have and how many?
4. Please describe the combination of black box + grip + base working and the same combo for the non-working variant.

Ok so i have 3 gunfighter connected to my pc + 1 vkb t rudder mk4
2 black box are well set (1 orange with a mcg pro with gf mk 3 and 1 black with a space grip left hand gunfighter mk2)
The black box i want to change is black too and is set for space grip right. I want to reflash it for a mcg pro with gunfighter mk3.

Thats it ^^

Try to disconnect all the devices from USB and leave only the one you want to flash.

i have disconnected all devices and it still generating an iissue.
i have deactivated my antivirus too.

Close VKBDevCfg and look for the file called zconfig.ini, will be in the same folder with VKBDevCfg. Open it up and add these 2 lines: Test Misc Enabled=1 under [Common] section and User=Developer under [User] section. Save, restart VKBDevCfg and try again.

not workin

my config file:

[Misc]
Read_Delay1=0
Read_Delay2=0
[Skins]
Active=1
Current Skin=DarkMetro (internal)
AllowAnimation=1
ExtendedBorders=0
[Common]
Test Misc Enabled=1
Auto Read Parameters=1
Autoconnect=0
Reconnect=1
Expert Mode=0
Set After Load=0
Internal Bootloader=0
Auto Read Macro=0
Test Button Color=0
Active Tab0=1
Active Tab1=0
Tab Global=0
Tab Profile=1
Tab Axes=0
Tab Axes Logical=0
Tab Buttons=0
Tab ExtDev=0
Tab External=0
Tab Test=0
Njoy32 preactivation=1
Njoy32 activation on demand=0
Splash Screen=0
Release_DI=1
DeviceListShort=1
[Forms]
F0_X_POS=144
F0_Y_POS=129
F6_X_POS=144
F6_Y_POS=129
F9_X_POS=144
F9_Y_POS=129
F10_X_POS=144
F10_Y_POS=129
F11_X_POS=144
F11_Y_POS=129
F12_X_POS=144
F12_Y_POS=129
F13_X_POS=144
F13_Y_POS=129
F16_X_POS=144
F16_Y_POS=129
F17_X_POS=144
F17_Y_POS=129
F18_X_POS=144
F18_Y_POS=129
F20_X_POS=144
F20_Y_POS=129
F23_X_POS=144
F23_Y_POS=129
F25_X_POS=144
F25_Y_POS=129
F26_X_POS=144
F26_Y_POS=129
F27_X_POS=144
F27_Y_POS=129
[Device]
Type=6
CurrentProfileN=0
VID=231D
PID=0126
Version=1981
Path=\\?\hid#vid_231d&pid_0126#8&cba0a27&2&0000#{4d1e55b2-f16f-11cf-88cb-001111000030}
[User]
User=Developer
PartialWrite=0
PartialCalibration=0
AutoRegFileMake=1

Other options to try:
- change USB cable and data cable (Black Box to base);
- boot Windows in safe mode and try again;
- change USB port, connect directly to the computer;
- try on another computer.

Hello Fallout

i directly applied the last advice and have flashed my black box with an other computer.
All was extremely easy and fine.

I axhieved to connect my 2 mcg pro to my computer and reconnect them to the computer i wanted.

So thx a lot for you great help.
