REPLACED hardware parts (PCB and case updates) GUNF MKI TO MKIII + MCG Pro Twist/KG12 adapter OrangeBox not working after pluging the grip. All diodes are OFF
ONLY BASE IS WORKING (axes ect.). THE BASE DOESN'T WORK with any type of grip connected.
VKB Device Firmware (v1.98.1)
ZBootloader (v1.18)
_BlackBox_GF_MCG_PRO_v1_98_1.vkb
After connecting to USB all diodes on Orange BOX are OFF. There are no controller in Windows. ALL DIODES ARE OFF including green one in BASE case and green one on PCB in BASE.
After removing the grip and replugging to USB the diodes on Orange BOX are ON (the Stick diode blinking red). Green diodes in base are ON. But hey there's no grip.
???
I didn't used the black end M3 screw (that part was missing in my order) but I think it isn't necessary and it's only for dry clutch?
(this M3 screw is in 4:08 https://www.youtube.com/watch?v=Do6E8971FqY)
EDIT: Just tried connecting the KG12 grip and there is the same issue all diodes on OrangeBox are OFF. The stick does not work with the grip connected. So the Base is generating the problem.
EDIT2: I've connected (black,yellow,red) stick wires without using micro male white connector. I've just plugged each wire individually and precisely to female connector on PCB and all diodes are sill OFF. So maybe the PCB has some malfunction...
UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.
Moderator: AdminGroup
- fallout9
- Posts: 5182
- Joined: Wed Oct 03, 2018 20:37
- Has thanked: 208 times
- Been thanked: 1218 times
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.
Are you sure you put the wires back in the connector in the same order as they were originally in your device? Swap black and red.
-
- Posts: 3276
- Joined: Tue Jan 15, 2013 23:56
- Location: г.Минск
- Has thanked: 44 times
- Been thanked: 637 times
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.

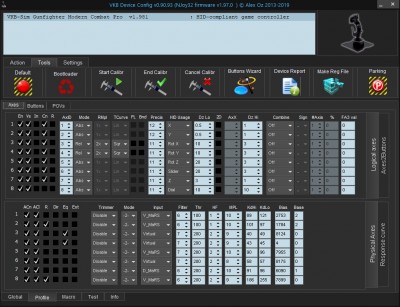

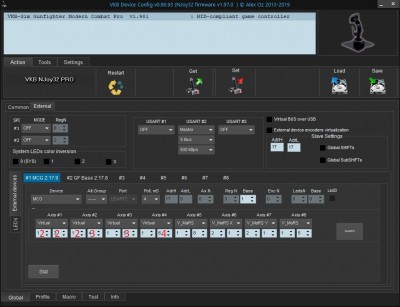

Show screenshots from the tab configurator Global-External, Profile-Axes, Test-External Devices. It will be better than any words.
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.
fallout9
Yes. The wires are in the same order. I'm sure.
Ron61
Nothing is detected in VKBDevC when the grip is connected.
When running VKBDevCfg-C.exe
When the grip is connected. All diodes are OFF on the OrangeBox.
No device is detected in VBDevCfg-C the window is blank.
When the grip is disconnected. Diodes are ON, stick diode is flashing red.
In VBDevCfg-C the VKB-Sim (Gunfighter Modern Combat Pro v1.981 : HID-complinat game controller) is detected and displayed.
I can do calibration etc. X Y axis are working.

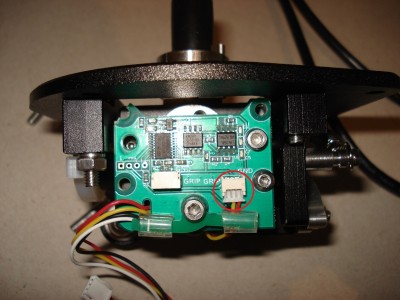

I also noticed the left upper corner of PCB is factory broken (on photo) but this shouldn't be an issue.
Yes. The wires are in the same order. I'm sure.
Ron61
Nothing is detected in VKBDevC when the grip is connected.
When running VKBDevCfg-C.exe
When the grip is connected. All diodes are OFF on the OrangeBox.
No device is detected in VBDevCfg-C the window is blank.
When the grip is disconnected. Diodes are ON, stick diode is flashing red.
In VBDevCfg-C the VKB-Sim (Gunfighter Modern Combat Pro v1.981 : HID-complinat game controller) is detected and displayed.
I can do calibration etc. X Y axis are working.
I also noticed the left upper corner of PCB is factory broken (on photo) but this shouldn't be an issue.
-
- Posts: 3276
- Joined: Tue Jan 15, 2013 23:56
- Location: г.Минск
- Has thanked: 44 times
- Been thanked: 637 times
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.
Swap black with red in this connector. It is necessary to carefully lift the locking tab in the connector with a needle and insert in the desired sequence.
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.
Thanks Ron61 and fallout9. Swapping wires solved the problem! Grip and twist adapter are working now.
Twist adapter And Trudder Mk.IV can be used on one OrengeBox at the same time?
Twist adapter And Trudder Mk.IV can be used on one OrengeBox at the same time?
Last edited by hazel on Thu Jan 30, 2020 23:01, edited 1 time in total.
-
- Posts: 3276
- Joined: Tue Jan 15, 2013 23:56
- Location: г.Минск
- Has thanked: 44 times
- Been thanked: 637 times
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.
If you were more careful, you would have noticed that fallout9 advised you to swap wires earlier.
The configurator allows you to use all the axes, but with some system limitations.

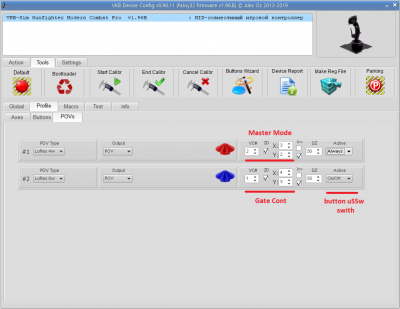

We make Hat from the first stick (3, 4 axes) and at the same time transfer it to the second virtual controller (2-2,2-3).
In its place, we transfer the second stick (from the 5th, 6th axis) with the modification of the central button, not only as the uSSw Switch, but also as the Tempo B button.
Thus, we have free 5 and 6 axis. On any of them you can hang the axis of the twist.
The configurator allows you to use all the axes, but with some system limitations.
We make Hat from the first stick (3, 4 axes) and at the same time transfer it to the second virtual controller (2-2,2-3).
In its place, we transfer the second stick (from the 5th, 6th axis) with the modification of the central button, not only as the uSSw Switch, but also as the Tempo B button.
Thus, we have free 5 and 6 axis. On any of them you can hang the axis of the twist.
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.
By limitations You mean I need to sacrifice one axis from HAT to have twist adaptor axis instead?
It's working but I lost control on the left circle HATs Y axis...

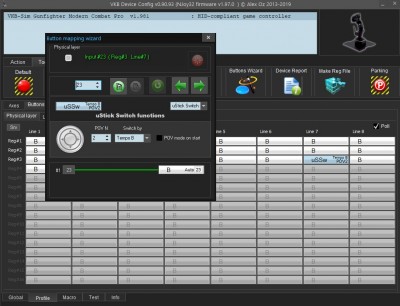

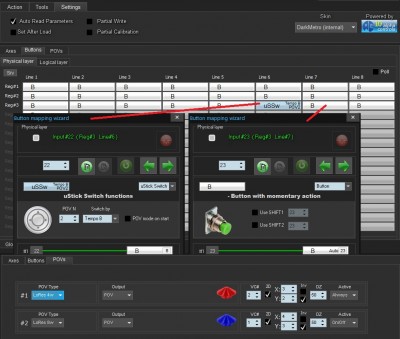

My button wizard also appeared in line 7 instead of 6
and it is in input #23 instead of #22. I Don't know why and I don't know that is important.
Can i have both Twist and trudder without sacrificing HATs Y axis?
It's working but I lost control on the left circle HATs Y axis...
My button wizard also appeared in line 7 instead of 6
and it is in input #23 instead of #22. I Don't know why and I don't know that is important.
Can i have both Twist and trudder without sacrificing HATs Y axis?
-
- Posts: 3276
- Joined: Tue Jan 15, 2013 23:56
- Location: г.Минск
- Has thanked: 44 times
- Been thanked: 637 times
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.
Carefully read and repeat exactly what is shown in the pictures. Then the result will not be long in coming.
Re: UPGRADE from GUNF MKI TO MKIII + MCG Pro Twist adapter OrangeBox not working after plugin the grip.

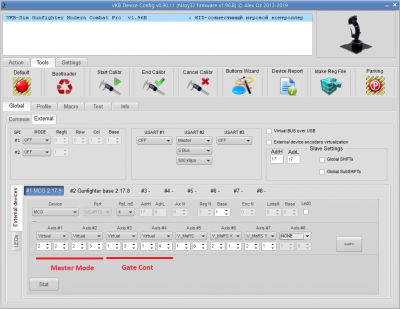

Thank You. I have twist axis and I have the trudder axis. It's working now...but this setup swapped functionality of POV hats. Now the Left circle hat has the 2seconds press (switch from XY sliders to pov hat with reset with single press) and the top rectangle hat has simple 4way hat function. Before the top rectangle hat has the switch pov/sliders (default factory) functionality. How to bring the default hat functionality and have the twist and trudder axis?
