Blackbox out of order

[Stonehenge]

I have to reconnect my black box after every restart. So pull out the USB plug and reconnect. I already deactivated the power saving mode on the USB port. What could help here?

[fallout9]

More details? Like why do you have to reconnect it - is it off when restarting the computer?

[Stonehenge]

Yes! All Lights off! Everytime i start my PC!

[fallout9]

2 things you could try: change the USB port and jiggle the USB cable a bit when the device is off (without disconnecting it) to see if there's a loose connection or broken wire.

[ddrake1984]

is this a powered USB port on a hub or PC?
or
is this a un-powered USB port on a hub?

[Stonehenge]

No USB Hub....simply on a USB2.0 Port on my PC.

But actually, i think it`s another problem:
I`ve enabled the Trigger for Missile Lock in Star Citizen (Armed/Pulse) After some time I noticed that the missile lock still didn't work. But in return the blackbox didn't switch off anymore! So with every restart the box was running again. As soon as I load my profile, all lights go out! Because of that I have flashed now times again. Currently it runs again. I must test the whole further and in the

[fallout9]

When you load your profile unmark the LED section.

[Stonehenge]

Can you explain it please?

[fallout9]

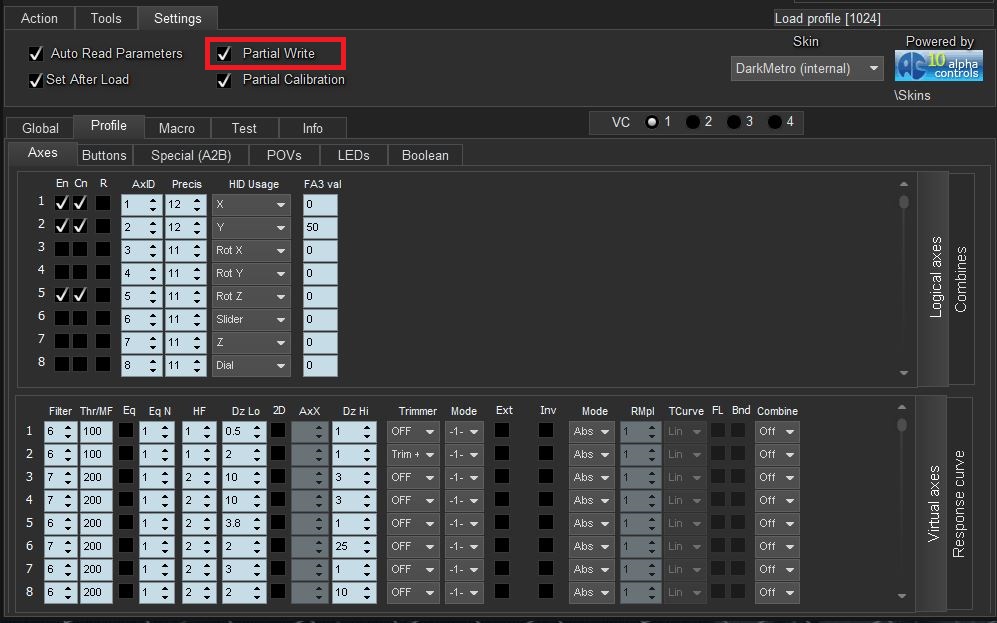

After re-flashing, setting to default and calibration (details here: https://www.youtube.com/watch?v=8Ht8yMsdlCQ) go to Settings and mark Partial Write option.

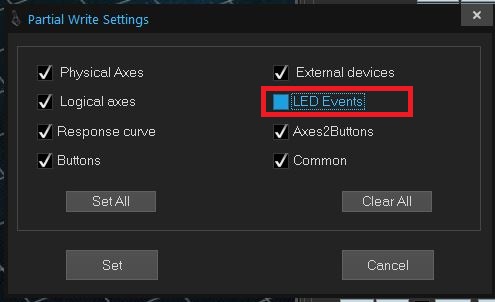

Now when you load your profile a new dialog box appears. Uncheck the LED option, check everything else like in picture and hit Set.

[Stonehenge]

Great and a very big THANK YOU!!! I`ll try it as soon as possible

[Stonehenge]

Great! First Restart and everything works! And NO Error Messages

[Stonehenge]

The anticipation was short lived. Now I'm really desperate! There is simply nothing left! Even the hard reset does not help me. No matter what I try ..... I get an error message with every action. And I somehow get no "set" - option anymore. I thought then ..... okay, then I'll just do it all. But that too is no longer possible. What am I doing wrong? Or is the black box broken?
https://1drv.ms/u/s!AuIrefFbEoSXiCG3GLa ... e?e=e9mfrT

[Ron61]

Screenshots from the configurator may help to establish the reason for this behavior of the BlackBox.
Also show the folder where the configurator is launched from.

[Stonehenge]

No Problem
https://1drv.ms/u/s!AuIrefFbEoSXiCVatZN ... f?e=bYzdy3

[Ron61]

In the very first (top) line of the configurator, the so-called "header", its version and recommended firmware are written.
You cannot use the versions below; above, you can. You need to use an earlier configurator with the current firmware.
