Mode button flashing on Glad pro MK1

Postby blackram » Thu Oct 04, 2018 10:16

Sometimes mode buton is shortly flashing itself from green to red and back, when I use my Gladiator mk1 pro. It behaves like that only in the first minutes of using, later it doesnt happen or very rarely happen. What could be the problem? I have the latest firmware (v1.85b) installed and mode button is usually red after I boot up my PC and then i switch it to green (im using pinky button for dropping bombs in IL2 GB which is programmed under mode2 - green).
thanks in advance

Ron61
Posts: 1015
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Mode button flashing on Glad pro MK1

Postby Ron61 » Thu Oct 04, 2018 12:11

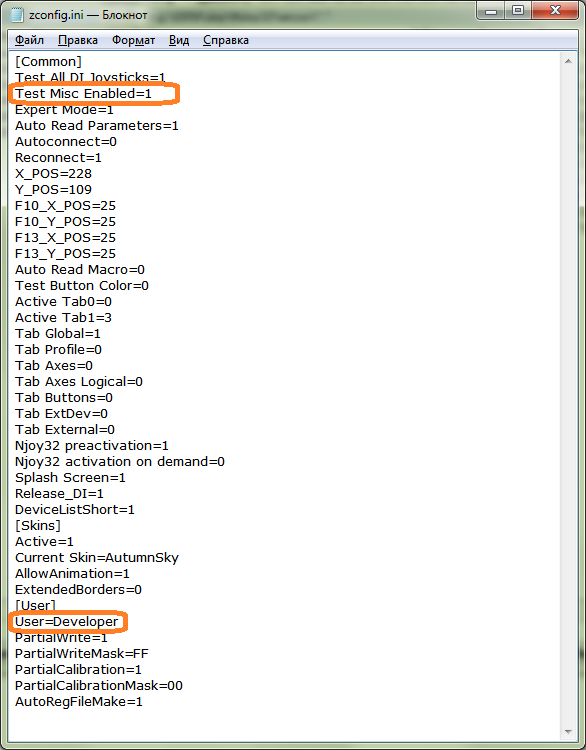

To gain access to the Led settings (and not only that), it is necessary to add the User = Developer line to the [User] section of the Zconfig.ini file that appears after the first launch in the configurator folder.
Do this and then show screenshots of the Global-External-Leds tabs. And Profile-Buttons.


blackram
Posts: 54
Joined: Tue Mar 13, 2018 15:26
Been thanked: 2 times

Re: Mode button flashing on Glad pro MK1

Postby blackram » Thu Oct 04, 2018 22:06

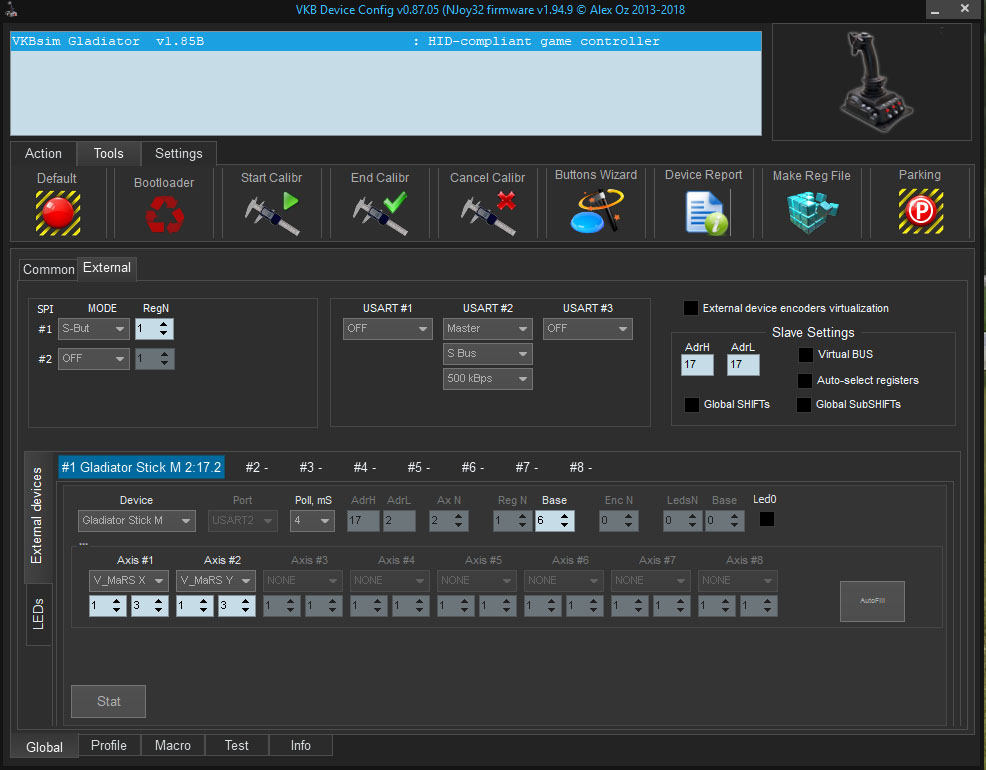

Thanks for fast response. Here it is:
Attachments

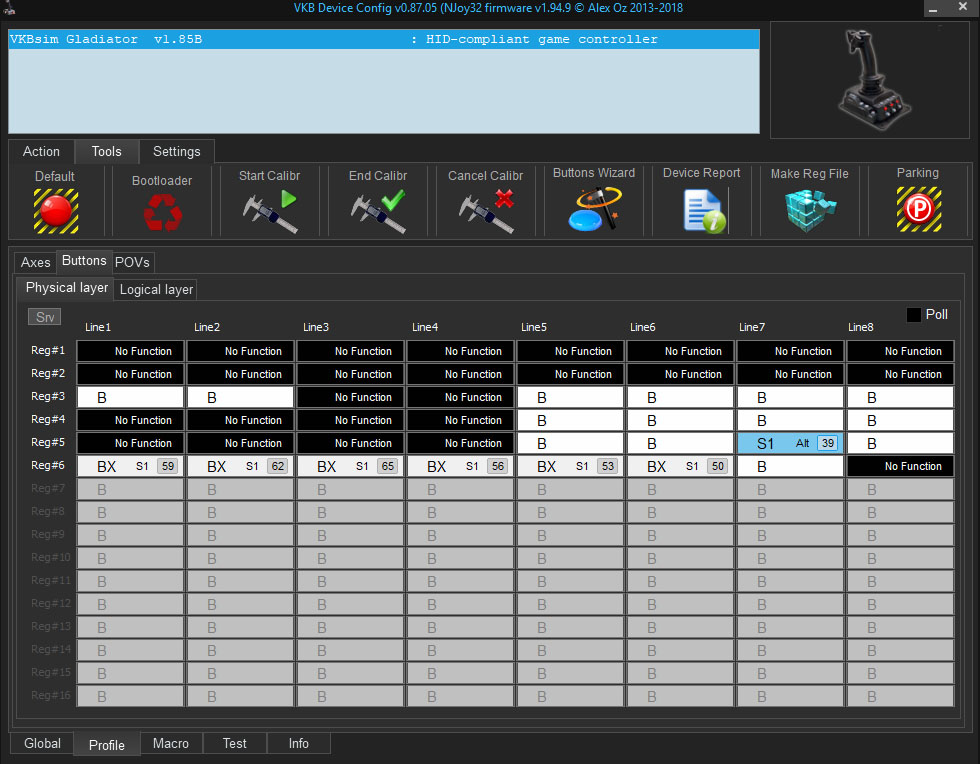

Profile buttons.jpg

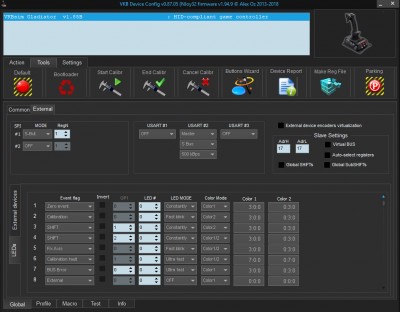

Global external devices.jpg
Global LEDs.jpg
Last edited by blackram on Thu Oct 04, 2018 22:11, edited 1 time in total.

blackram
Posts: 54
Joined: Tue Mar 13, 2018 15:26
Been thanked: 2 times

Re: Mode button flashing on Glad pro MK1

Postby blackram » Thu Oct 04, 2018 22:08

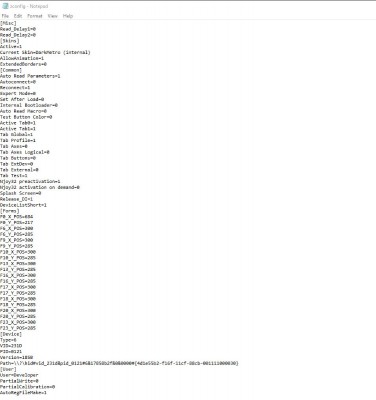

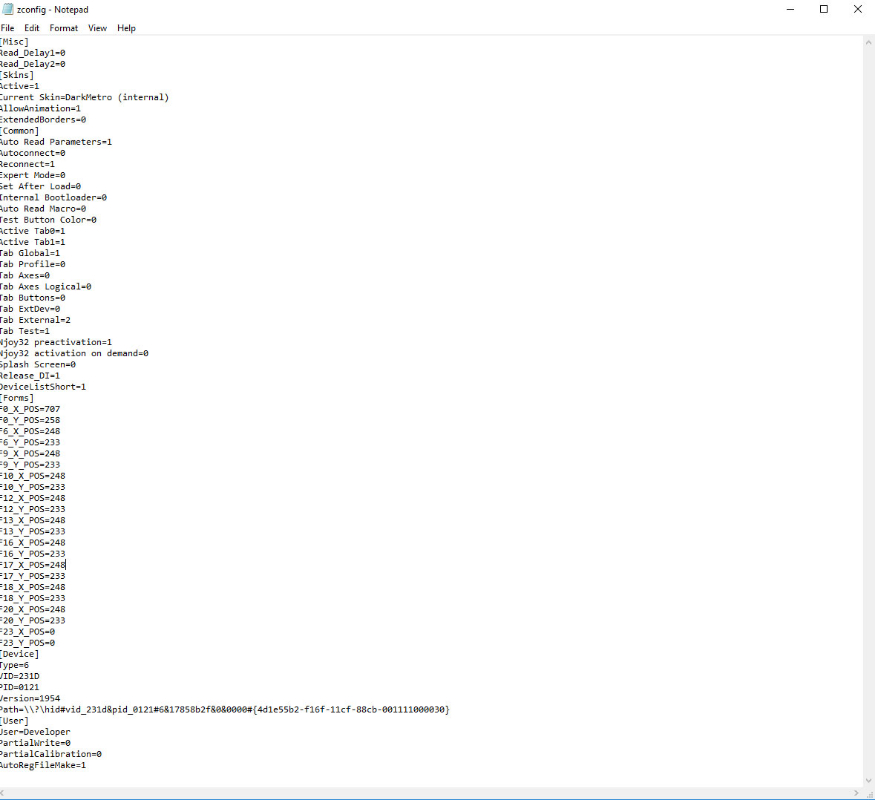

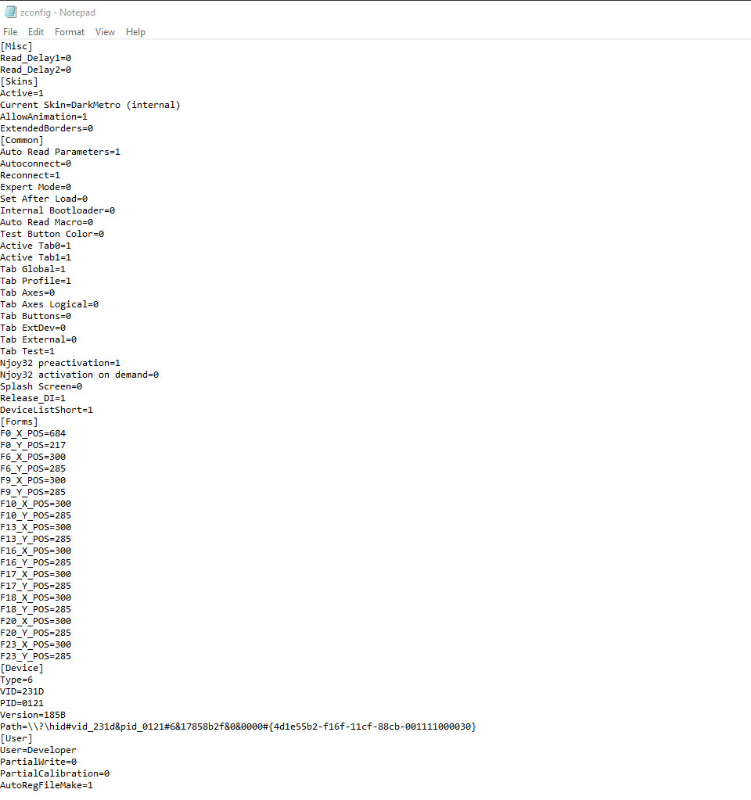

zconfig
Attachments

Ron61
Posts: 1015
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Mode button flashing on Glad pro MK1

Postby Ron61 » Thu Oct 04, 2018 23:03

It is necessary to update the firmware, this is clearly hinted at the topmost line (header) in the configurator.
Required at least 1.94.9 - you have 1.85B. Take from here. At the same time and the configurator. After installing everything, check the result.

blackram
Posts: 54
Joined: Tue Mar 13, 2018 15:26
Been thanked: 2 times

Re: Mode button flashing on Glad pro MK1

Postby blackram » Fri Oct 05, 2018 1:15

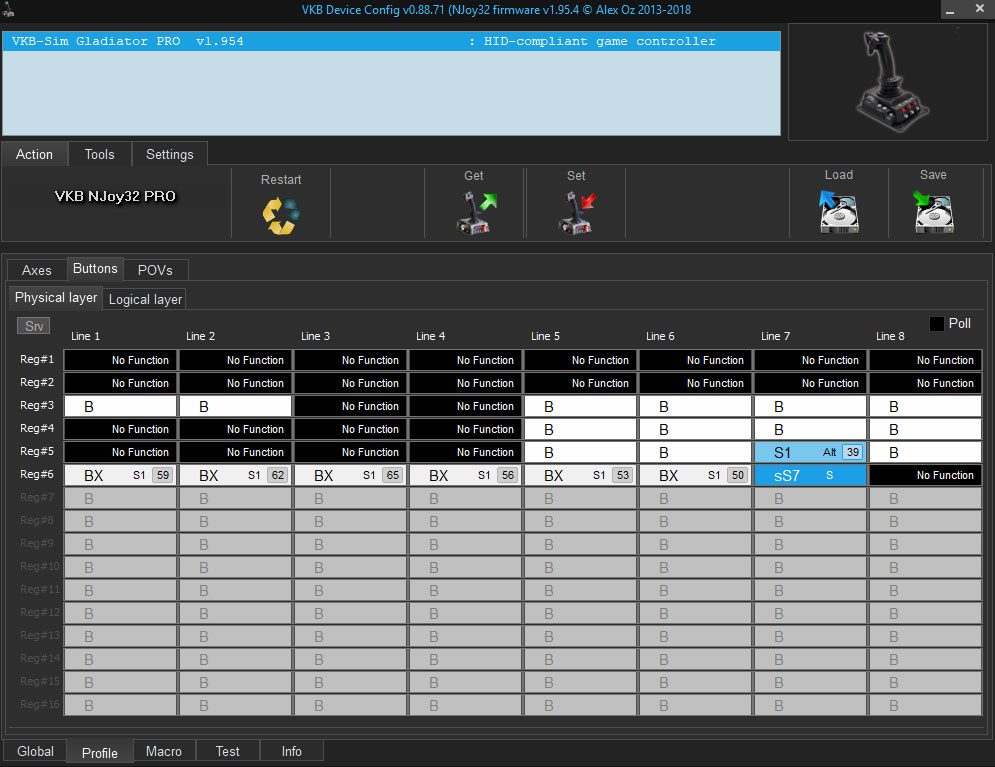

Here you go (now I see one shift mode is set to both colors but I will wait your response):
Attachments
Profile buttons2.jpg
Global LEDs2.jpg

Ron61
Posts: 1015
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Mode button flashing on Glad pro MK1

Postby Ron61 » Fri Oct 05, 2018 1:44

I propose to reset to default settings with the appropriate button. And study paragraph 2.5 of the manual more thoroughly.

blackram
Posts: 54
Joined: Tue Mar 13, 2018 15:26
Been thanked: 2 times

Re: Mode button flashing on Glad pro MK1

Postby blackram » Fri Oct 05, 2018 11:27

The manual is super confusing in LED part. Can you tell me what I need to set in LED option to get the mode button (on the base) just switch red and green depending which mode is set (pressed)?

Ron61
Posts: 1015
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Mode button flashing on Glad pro MK1

Postby Ron61 » Fri Oct 05, 2018 13:56

After resetting to default, the response to pressing Shift, Led will work exactly as you described.
See line 3 in the Led settings. It makes no sense to retell here a paragraph from the manual.
If it is more detailed about line 3, then it’s like this:
Flag event? - Shift, Shift number? -1 (and the only one), LED number? - 0 (and the only one, we have no others, 2 of our led form one under # 0), how will it burn? - constantly, what color? - 2, what brightness? - color2 column - 3. Everything. :D

blackram
Posts: 54
Joined: Tue Mar 13, 2018 15:26
Been thanked: 2 times

Re: Mode button flashing on Glad pro MK1

Postby blackram » Fri Oct 05, 2018 23:27

I did reset. Now the red button is blinking rapidly for few seconds in the first minutes of the flight (after it was set on green light because im using that shift mode). Im using flaps and other buttons too, during flight. I need to say that I also designated pinky button as ordinary button (for bombs) so maybe that is changing something with LEDs?
Attachments
Global LEDs3.jpg

Ron61
Posts: 1015
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Mode button flashing on Glad pro MK1

Postby Ron61 » Sat Oct 06, 2018 0:02

We also need a screenshot of the Global tab and Profiles-Axes.
You can leave a reaction to the events of only the first 3 lines in the Led settings.
To do this, put External in the first column (starting from line 4) or select Off in the Led Mode column.
And at the same time to change colors among themselves in the first 3 lines in Color Mode.
Then when you connect the joystick will be green, and the calibration and Shift will respond red.

blackram
Posts: 54
Joined: Tue Mar 13, 2018 15:26
Been thanked: 2 times

Re: Mode button flashing on Glad pro MK1

Postby blackram » Sat Oct 06, 2018 10:26

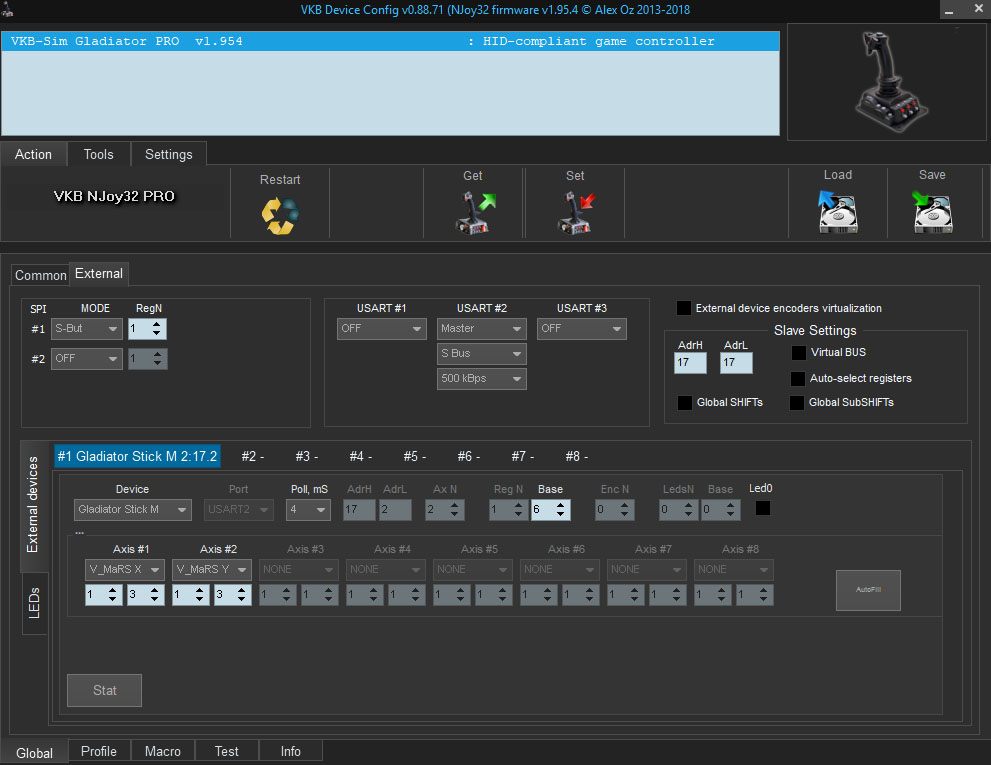

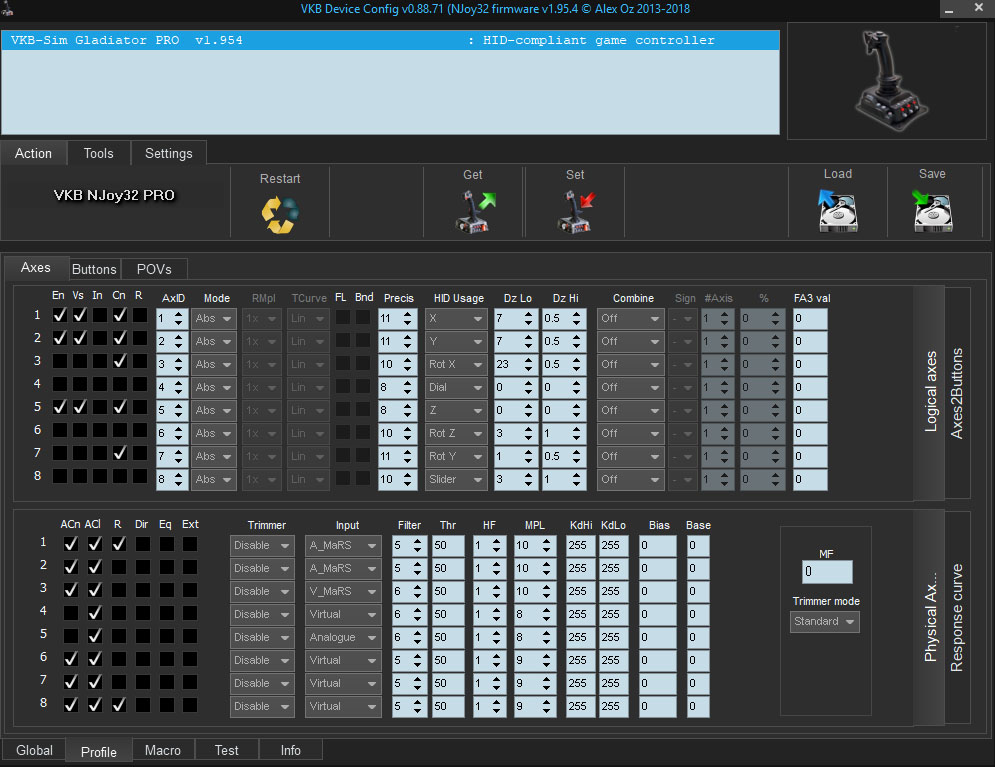

here you go:
Attachments

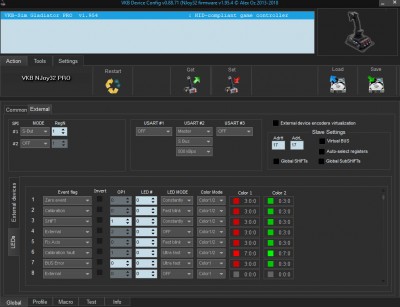

global external.jpg
profile axes.jpg

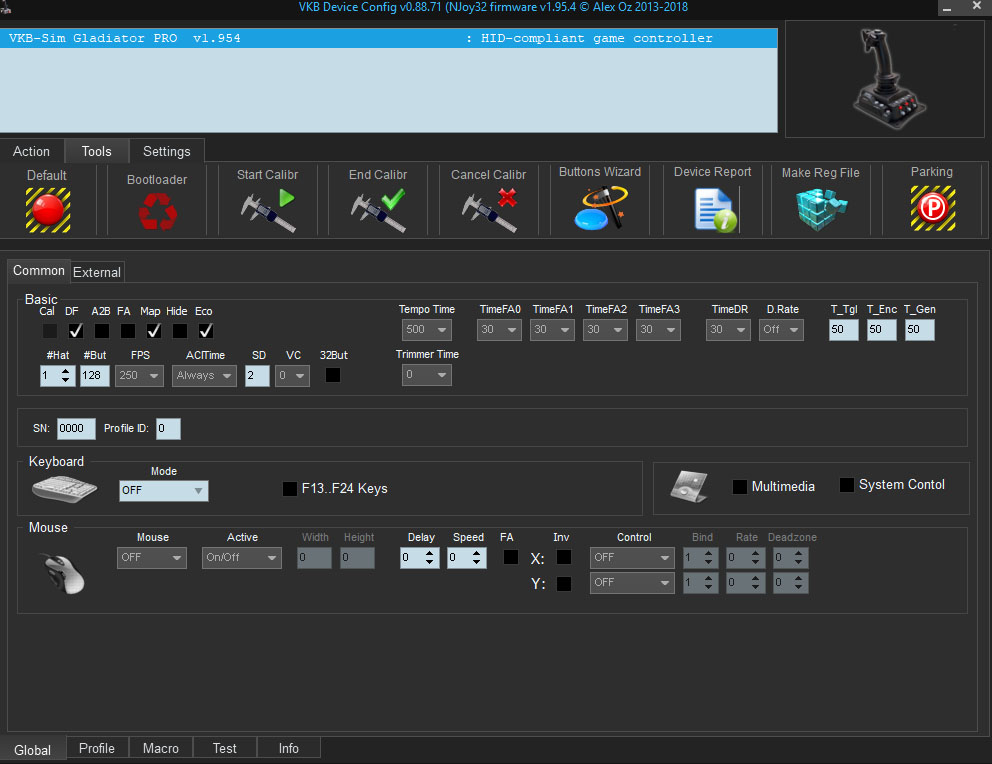

global tab.jpg

blackram
Posts: 54
Joined: Tue Mar 13, 2018 15:26
Been thanked: 2 times

Re: Mode button flashing on Glad pro MK1

Postby blackram » Sat Oct 06, 2018 10:35

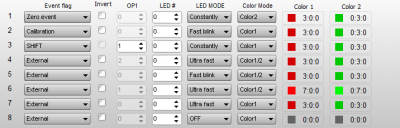

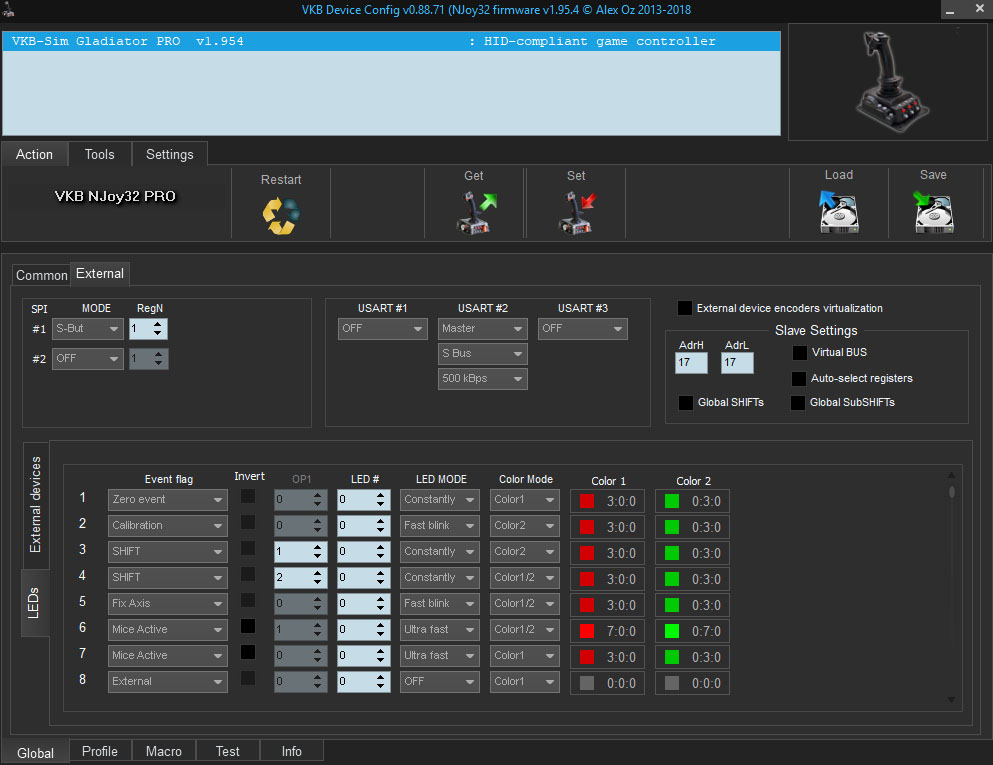

My new LED settings. If I get you right...but now when Its only green. When I press mode /shift button it stays green.
Attachments

Ron61
Posts: 1015
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Mode button flashing on Glad pro MK1

Postby Ron61 » Sat Oct 06, 2018 11:01

Do as in the picture and understand where your mistake.And don't forget to do the calibration, this is indicated by the lack of a daw on the Cal check box in Global.


blackram
Posts: 54
Joined: Tue Mar 13, 2018 15:26
Been thanked: 2 times

Re: Mode button flashing on Glad pro MK1

Postby blackram » Sat Oct 06, 2018 11:47

Ron61, thank you very much for replying even on weekend. It seams now is working fine. I only reversed the colors of leds so its green when my shift mode is ON and is red when its off (default color at Pc startup). Also I calibrated the joystick (I forgot to do it after hitting default button :roll: ).

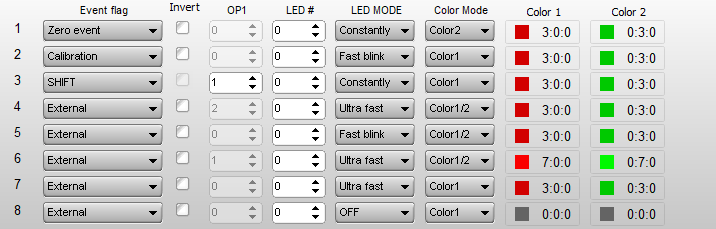

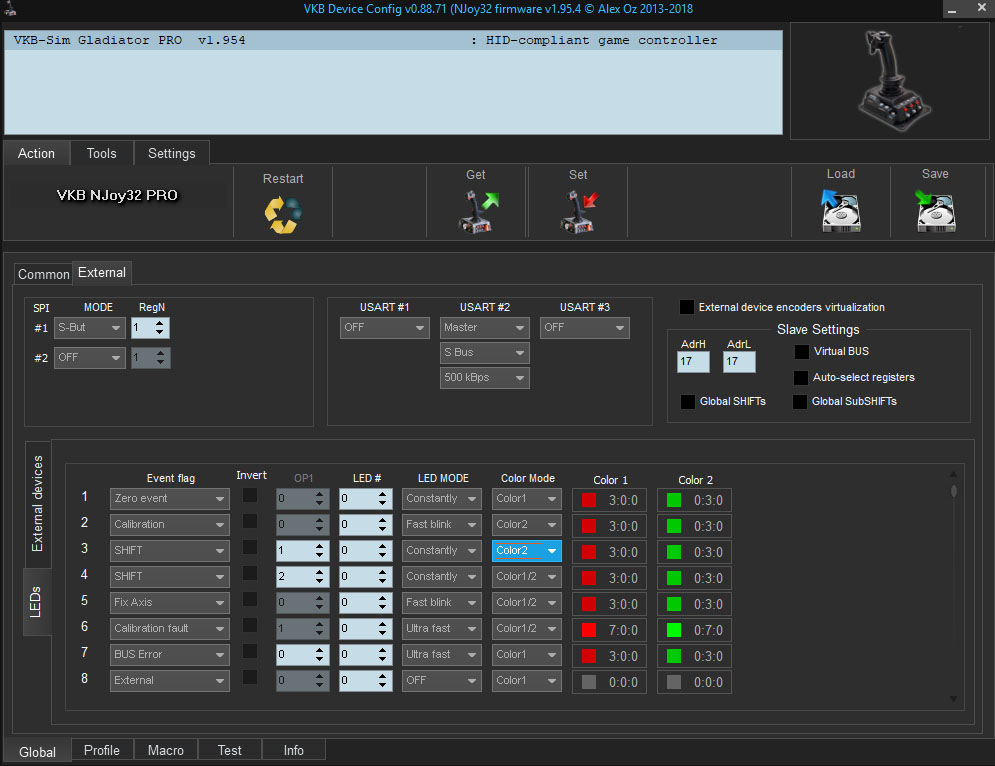

Here it is how I have it now:
Attachments
LEDs u configu.jpg
