Gunfighter KG12 - X-axis not work correctly

Postby pavsko » Wed Aug 29, 2018 21:43

I have been using my Gunfighter since August without any problem, but suddenly x-axis not work correctly: I cannot perform full deflection to the right even if my grip is full right and x-axis indicator erratically moves.
I tried to recalibrate it but the error is still there.

The detailed description of the problem:
While I fluently and slowly move grip to the right, the indicator suddenly stops moving in the last quarter of the path towards the right side and/or started to erratically oscillate. I cannot perform full deflection to the right. The deflection to the left is OK (fluent and precise). Y-axis is OK as well.

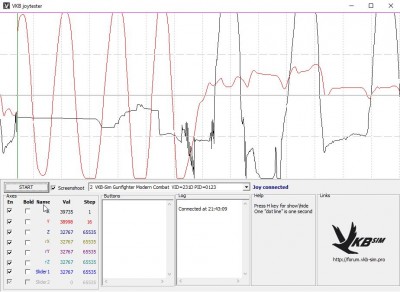

See attachment - you can see x-axis indicator while my grip is full right

I use VKB Device Config v.0.87.05.

BTW: while I tried to solve the problem I mistakenly flashed firmware from BlackBox 1_94B - this firmware is not for KG12 but for MCG. Where can I download the firmware for KG12?

Thanks for help.

EDIT: I also tried the advice from this post http://forum.vkb-sim.pro/viewtopic.php?f=25&t=3235: I unplug and plug again the X-axis connector (see attachment). But after plugging device to USB port and set the device to Default and then calibrating - no change :-/

Note: I use very soft springs (custom made) - they are softer than the softest default springs no. 10
Attachments
2018-08-29-VKB joytester_003.jpg
my VKB.jpg
move right not ok.jpg
Last edited by pavsko on Wed Aug 29, 2018 22:50, edited 3 times in total.

Ron61
Posts: 1011
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby Ron61 » Wed Aug 29, 2018 22:35

Show screenshots of the tabs Global, Profile-Axes.
Firmware download here. Software here.

pavsko
Posts: 21
Joined: Tue Feb 28, 2017 14:53
Been thanked: 2 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby pavsko » Wed Aug 29, 2018 22:59

Thanks very much. I have just successfully flashed the right firmware for KG12. I also downloaded the newest VKBDevCfg v.88 and again calibrated the stick.

Unfortunately, the problem with the X-axis is still there...

pavsko
Posts: 21
Joined: Tue Feb 28, 2017 14:53
Been thanked: 2 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby pavsko » Wed Aug 29, 2018 23:01

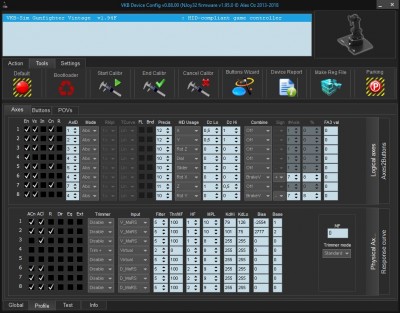

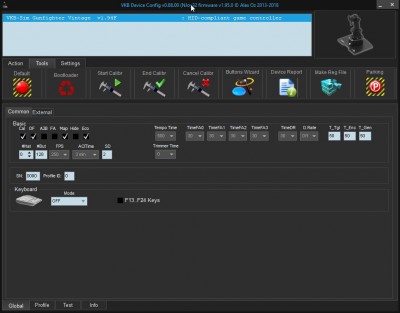

My Global tab and Profile axis tab
Attachments
Profile axis.jpg
Global tab.jpg

Ron61
Posts: 1011
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby Ron61 » Wed Aug 29, 2018 23:43

The arrow on your photo shows the connector KG12 - it is not interesting to us. After all, there are no problems with pressing the buttons on the handle?
It is worth checking out the X-axis connector, I think it will not be difficult. There were cases of bad contact in it.
It is worth dumping into default and calibrating. Before that, save your customized profile.

pavsko
Posts: 21
Joined: Tue Feb 28, 2017 14:53
Been thanked: 2 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby pavsko » Wed Aug 29, 2018 23:49

OK, what connector is for x- Axis then? I don't have the scheme of wiring. Thx

Ron61
Posts: 1011
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby Ron61 » Wed Aug 29, 2018 23:58

Front of the X-axis board, on the side - Y.
This X.


X and Y.png


It is necessary to check the connectors on both sides of the cable.


pavsko
Posts: 21
Joined: Tue Feb 28, 2017 14:53
Been thanked: 2 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby pavsko » Thu Aug 30, 2018 8:00

Great info Ron! Thanks very much for the clarification. I will try it ASAP and report back.

pavsko
Posts: 21
Joined: Tue Feb 28, 2017 14:53
Been thanked: 2 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby pavsko » Thu Aug 30, 2018 18:08

Unplug and plug again fixed it! X-Axis is now OK.
Many thanks again!

Ron61
Posts: 1011
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Gunfighter KG12 - X-axis not work correctly

Postby Ron61 » Sat Sep 01, 2018 13:40

Excellent, I am happy for you.
