Funky X-Axis Behaviour

Moderator: AdminGroup

User avatar
snuffles
Posts: 20
Joined: Sun Apr 02, 2017 8:14
Has thanked: 26 times
Been thanked: 2 times

Funky X-Axis Behaviour

Postby snuffles » Sun Aug 26, 2018 17:47

1 - Device model and version: VKB Gunfighter Mk I Base + VKB Extension + MCG Pro
2 - Controller Firmware version: BB_GF_MCGP_v1_94_B
3 - Number and type of springs used: Default, no changes.
4 - Type of cams used: Default, no changes.
5 - If VKB original software: VKBDevCfg-C v0.87.05

The question is in regards to joystick / pedals axes:

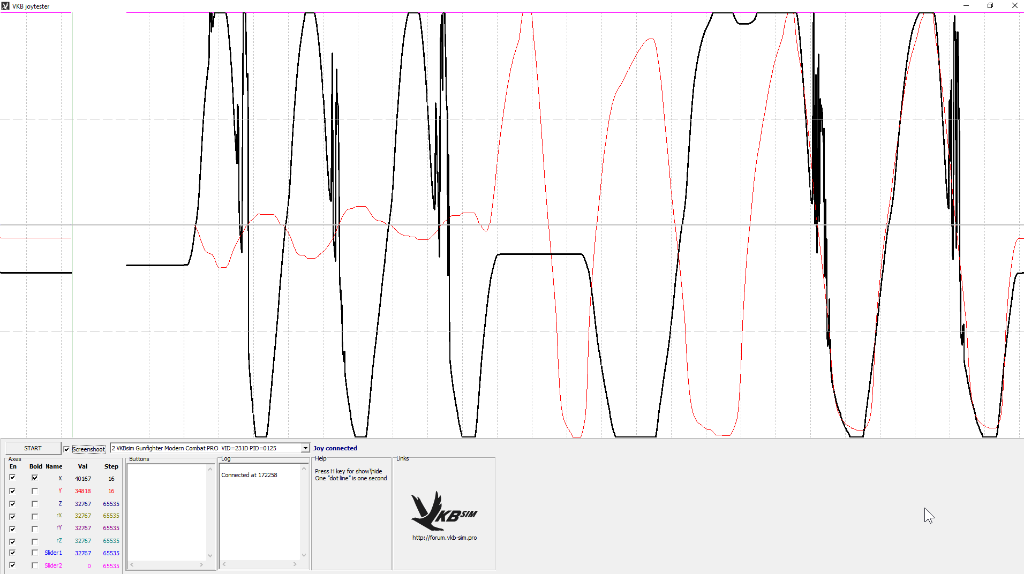

6 - Vkbjoytester screenshot:
20180827 172412-VKB joytester.png
Movement of X in Bold

7 - Vkbdevcfg-c screenshots: See video linked below.

Hi Team,

I've noticed this behaviour getting worse on my MCG Pro + Extension + Gunfighter Mk I base for some time.
I had first seen it shortly after receiving my GF, and emailed about it. With a FW update, it only seemed to go away.

I've updated to the latest v1_94_B FW for the MCG Pro, and the problem is no better or worse. It is only affecting the X-Axis.
I've opened the GF's case to inspect for debris or other funky things in the housing, and haven't spotted anything that shouldn't be there. Visually, everything seems fine.

What can we do, gents?

Best Regards,
A Happy Customer

Video of the problem:
https://youtu.be/AXpv9jJxEO8

@00:23 - Calibration
@01:40 - Testing Calibration
@02:20 - Testing MCGPro Error Level
@03:02 - Testing GFMK1 Base Error Level
@03:20 - My Give Up ¯\_(ツ)_/¯
Attachments
VKB Device Report 2018.pdf
Report generated by VKB Device Configurator
(498.31 KiB) Downloaded 7 times

User avatar
AeroGator
Posts: 400
Joined: Wed May 31, 2017 7:40
Has thanked: 100 times
Been thanked: 157 times

Re: Funky X-Axis Behaviour

Postby AeroGator » Mon Aug 27, 2018 10:49

Shouldn't be difficult to fix, I think.
Remove the mechanism from the base and unplug the connectors of X-sensor. Don't just try to push them in with brute force hoping to restore contact: unplug and replug. No excessive force needed, just full out and full in.
Tell me if it worked.
Best Regards,
AeroGator

User avatar
snuffles
Posts: 20
Joined: Sun Apr 02, 2017 8:14
Has thanked: 26 times
Been thanked: 2 times

Re: Funky X-Axis Behaviour

Postby snuffles » Mon Aug 27, 2018 13:41

YOU'RE A WIZZARD 'ARRY!

It seems to have fixed that issue - I read the "MCG Pro Roll Axis Jumping" thread and suspected this had a chance of affecting my GF1 base as well, but not enough to go ahead and try that fix.
The problem was exactly that - a connector that was no longer fully seated. When I re-plugged the X-Sensor's cable into the socket, I noticed that the socket shifted on its pins. Possible dry joint?

On another note, I have a query regarding the smoothness of the movement on the X-Axis. I've noticed that despite the cams being clean and the X-Axis dry clutch being loose, I still have a fair amount of friction to overcome to move the stick on the X-Axis. It's enough to block out very fine movements, which isn't nice. On the other hand, the Y-Axis is buttery smooth.

What can I do to remove the friction on the X movement?

Cheers!

Ron61
Posts: 1011
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 19 times
Been thanked: 196 times

Re: Funky X-Axis Behaviour

Postby Ron61 » Mon Aug 27, 2018 14:14

Try to swap the cams - the problem goes to the Y axis?

User avatar
snuffles
Posts: 20
Joined: Sun Apr 02, 2017 8:14
Has thanked: 26 times
Been thanked: 2 times

Re: Funky X-Axis Behaviour

Postby snuffles » Mon Aug 27, 2018 14:34

I wish that were so, but the problem exists even if I depress the X-cam away from the roller and move the stick.

User avatar
AeroGator
Posts: 400
Joined: Wed May 31, 2017 7:40
Has thanked: 100 times
Been thanked: 157 times

Re: Funky X-Axis Behaviour

Postby AeroGator » Tue Aug 28, 2018 8:38

snuffles wrote:YOU'RE A WIZZARD 'ARRY!
'at's why they call me 'Arrygator 8)
Talking that scratching thing, pls take off the bottom cover and take a good picture of the inside. Pls allow some time to make it a really good picture (no hand-held camera, even no-shadow light, good sharpness, etc.) - as we need to look inside like the thing is sitting on our desk. Better take a couple of pics at a bit different angles. Don't be savvy on size/resolution.
Post them here, we will chew on it.
Best Regards,
AeroGator

User avatar
snuffles
Posts: 20
Joined: Sun Apr 02, 2017 8:14
Has thanked: 26 times
Been thanked: 2 times

Re: Funky X-Axis Behaviour

Postby snuffles » Wed Aug 29, 2018 9:09

Thanks Aerogator, will do - I'll have photos posted here as soon as possible.

User avatar
snuffles
Posts: 20
Joined: Sun Apr 02, 2017 8:14
Has thanked: 26 times
Been thanked: 2 times

Re: Funky X-Axis Behaviour

Postby snuffles » Sat Nov 10, 2018 5:12

Hi Team,

After a stupid long time away, I've been able to return to the problem. Sorry, duty called :(

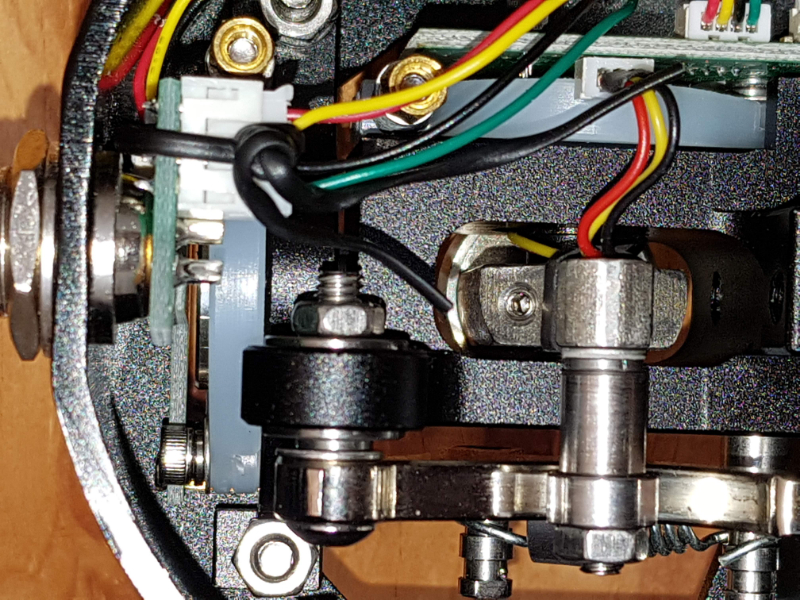

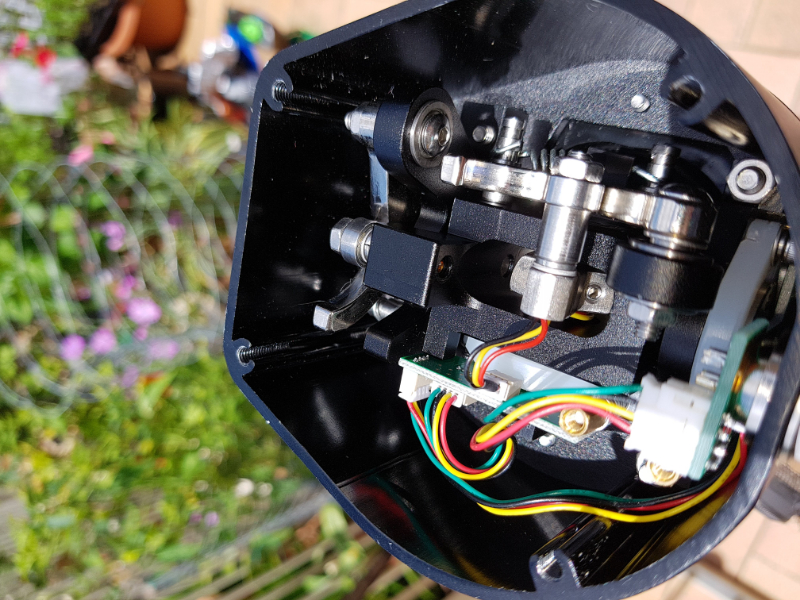

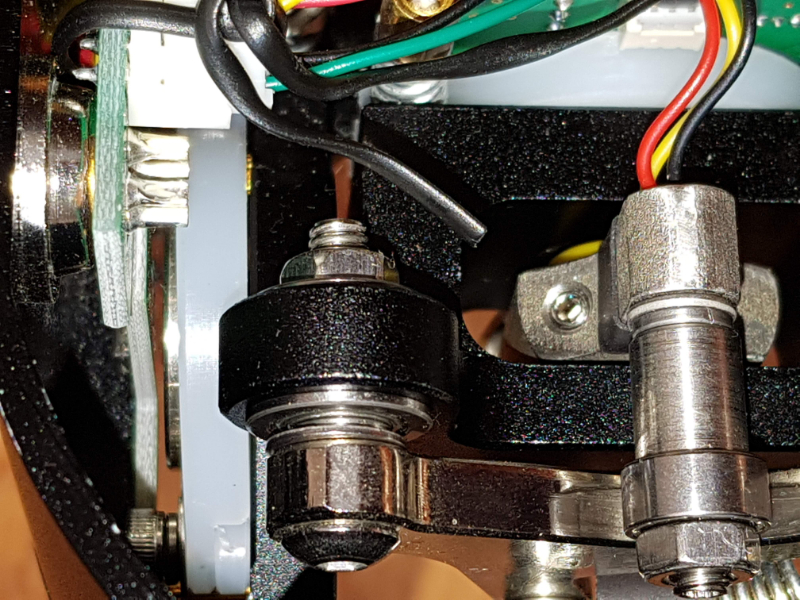

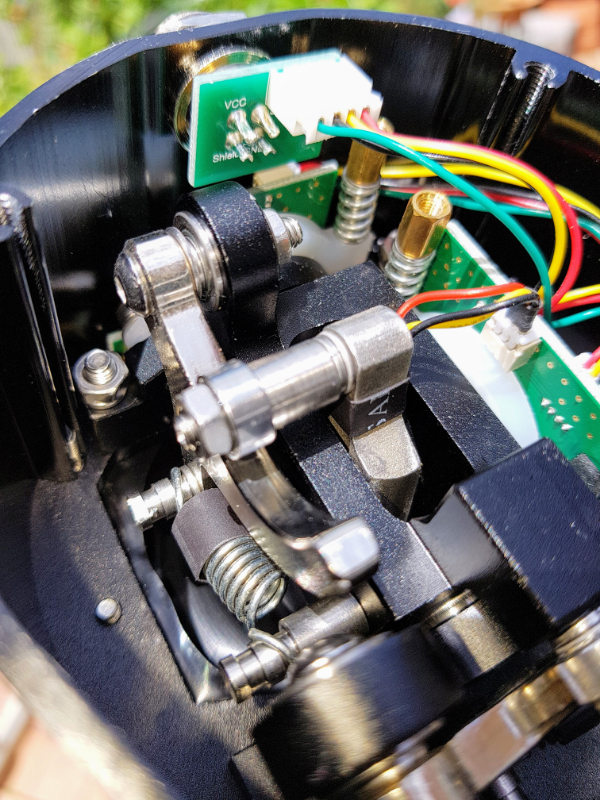

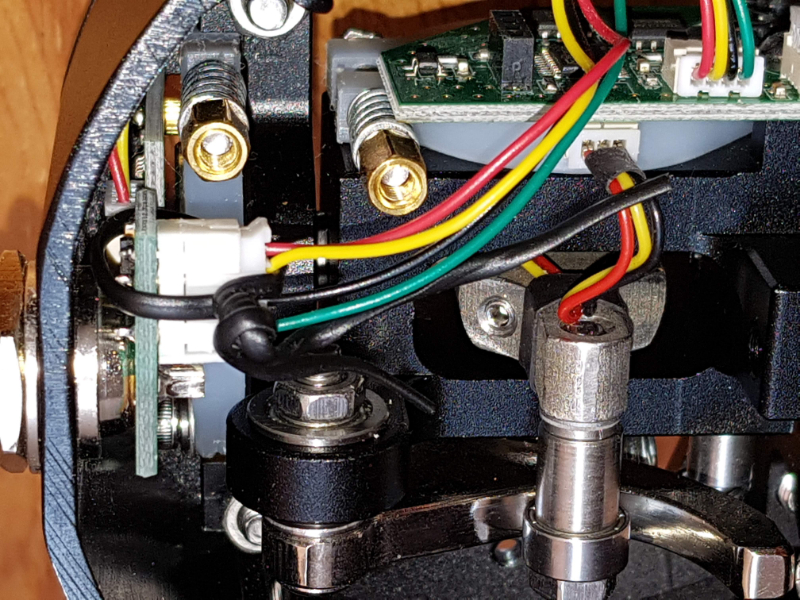

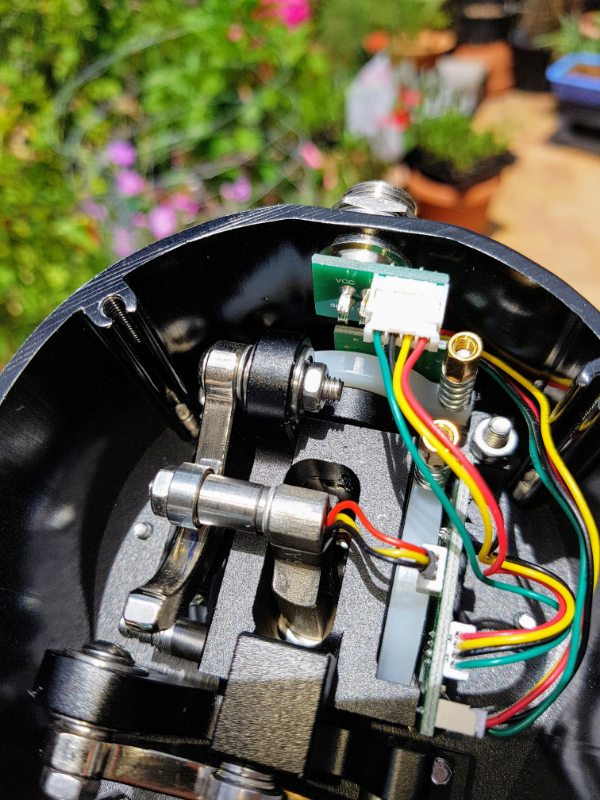

I've compiled a Google Photos album, hopefully it's some help for your team: photos.app.goo.gl/reCADyyR88nUhCxw7

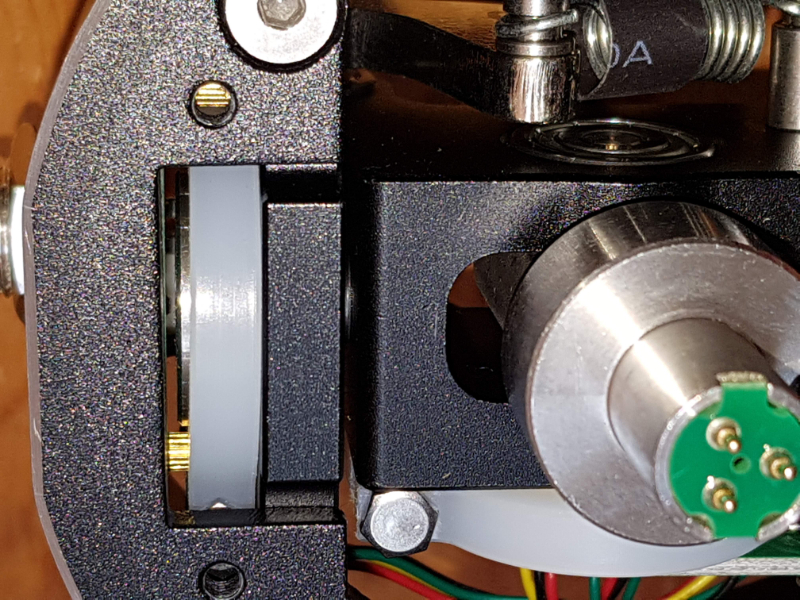

I notice that the X-axis plastic buffer is not truly parallel with the X-axis. This seems to be a minor issue, though.
As a workaround, I loosened off the friction nut for the X-Axis all the way back, and the axis is properly smooth.

Happy to continue to wait, after all I wasn't able to get these images for you before I was sent away.

Cheers,
