Pedal Calibration Issue

Postby Rythm1 » Tue Aug 21, 2018 18:52

Hi!
First of all, hi all! I´ve been using the pedal (MkIV) for 3 months without issues, changed the force of the spring and It worked fine. But now I have calibration issues. In a genius movement (ironic) I reseted the VKB config program pressing the bootloader button. Obviously I didn´t work. So now I don´t know what to do:
The Z axis dosen´t rise the top end of the axis. I tried to calibrate, but it didn´t work.

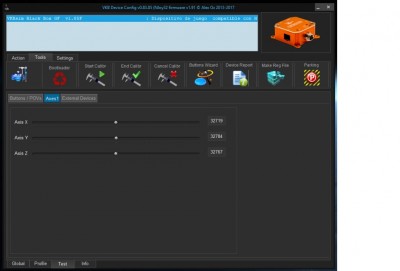

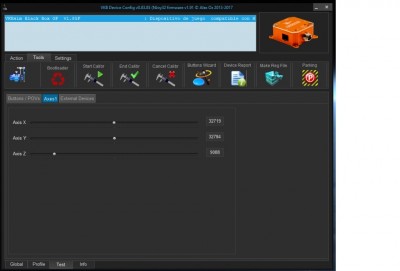

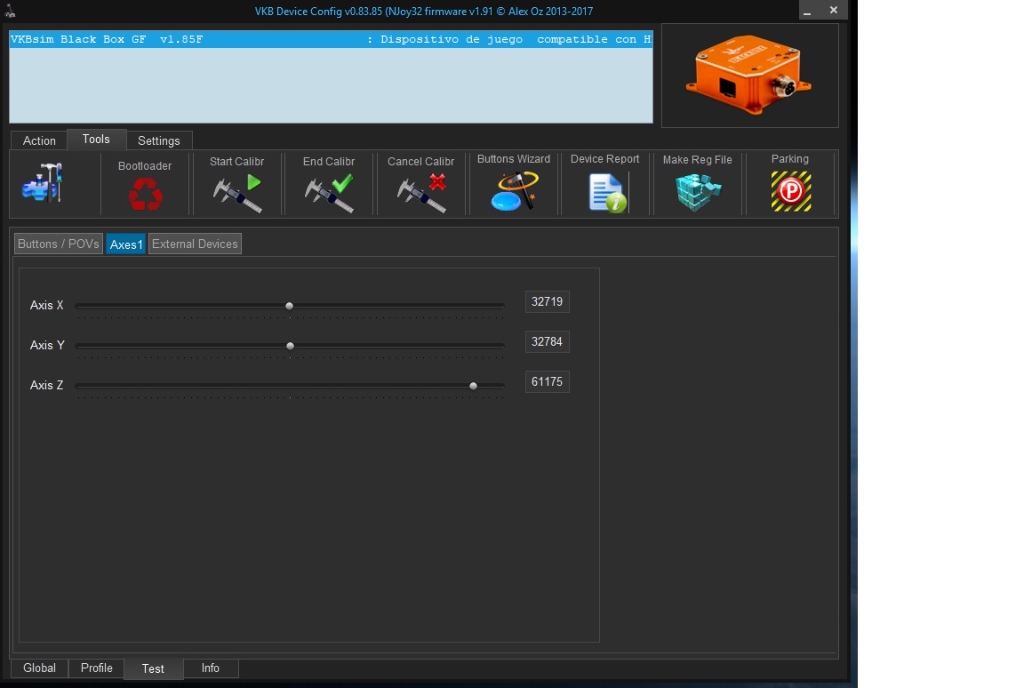

I have attached screenshots. Thanks a lot.
Attachments
Screeshot 3.jpg
Screeshot 2.jpg

User avatar
Victorus
Posts: 1158
Joined: Wed Sep 21, 2011 13:25
Has thanked: 218 times
Been thanked: 174 times

Re: Pedal Calibration Issue

Postby Victorus » Tue Aug 21, 2018 21:36

Rythm1 wrote:Hi!
First of all, hi all! I´ve been using the pedal (MkIV) for 3 months without issues, changed the force of the spring and It worked fine. But now I have calibration issues. In a genius movement (ironic) I reseted the VKB config program pressing the bootloader button. Obviously I didn´t work. So now I don´t know what to do:
The Z axis dosen´t rise the top end of the axis. I tried to calibrate, but it didn´t work.
I have attached screenshots. Thanks a lot.

Hi!
http://forum.vkb-sim.pro/viewtopic.php?f=25&t=2762
Bootloader button is intended to load firmware into controller. You can press Default button to set factory settings. Have you tried?
Here http://ftp.vkb-sim.pro/Documentations/controller_2_10_En.pdf you can find User Guide with detailed calibration description. Try another one time.
Good luck!

Rythm1
Posts: 4
Joined: Tue Aug 21, 2018 17:56

Re: Pedal Calibration Issue

Postby Rythm1 » Tue Aug 21, 2018 22:17

Thanks a lot for the answer, I will try again!

Rythm1
Posts: 4
Joined: Tue Aug 21, 2018 17:56

Re: Pedal Calibration Issue

Postby Rythm1 » Tue Aug 21, 2018 23:52

Default button didn´t work. Finally the problema was that de axis didt´n rise the end. The solution is to increase MPL value and reduce the KdHi and the KdLow values. It´s explained in the manual in the manual calibration section. thanks for all! Hope this Will be useful for anyone else!

User avatar
Victorus
Posts: 1158
Joined: Wed Sep 21, 2011 13:25
Has thanked: 218 times
Been thanked: 174 times

Re: Pedal Calibration Issue

Postby Victorus » Wed Aug 22, 2018 0:09

Yes! Manual calibration additionally to automatic!
