Problem setting mini stick as buttons

Postby scipio72 » Sun Mar 04, 2018 20:26

Hi

I want to set the mini sticks to activate button pushes. I had no problem doing this with the master mode stick but can't get it to work with the gate cont stick.

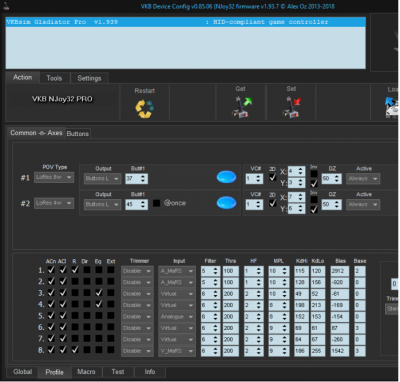

Here are the settings I tried






Thanks

User avatar
Victorus
Posts: 969
Joined: Wed Sep 21, 2011 13:25
Has thanked: 131 times
Been thanked: 120 times

Re: Problem setting mini stick as buttons

Postby Victorus » Mon Mar 05, 2018 23:08

Try to set 6 & 7 axes (your ministick2 input) as virtual instead of DMaRS.

scipio72
Posts: 16
Joined: Thu Jan 11, 2018 3:23
Been thanked: 1 time

Re: Problem setting mini stick as buttons

Postby scipio72 » Tue Mar 06, 2018 0:40

I changed 6 and 7 to virtual
and hit the set button but got no change.

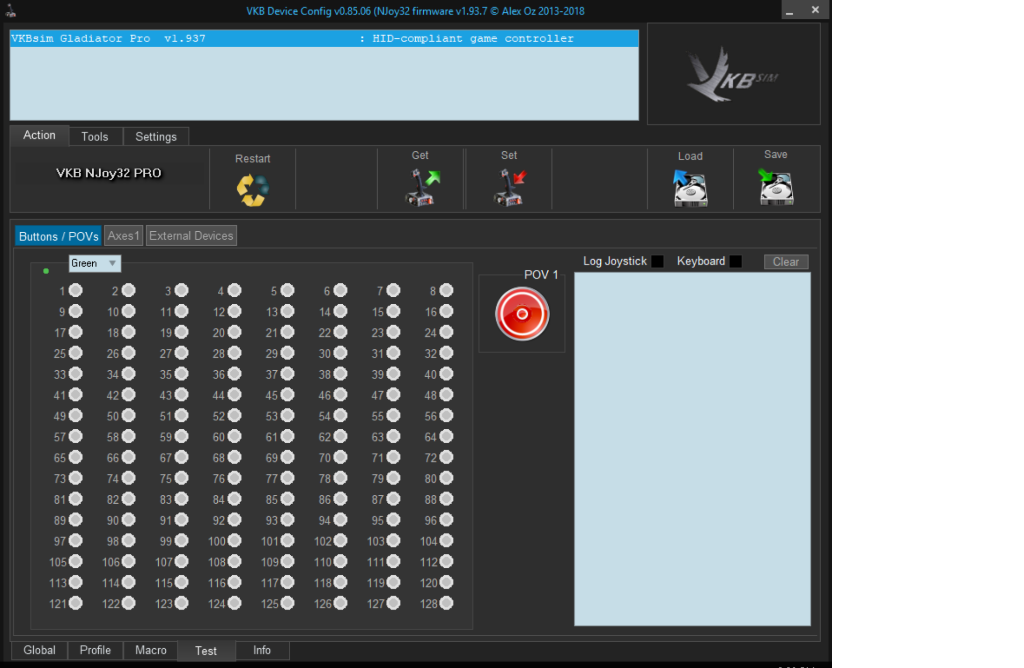

I noticed the test page only shows POV 1. Here's a shot in case it helps

PhoenixCNE
Posts: 22
Joined: Sun Jan 15, 2017 23:44
Has thanked: 2 times
Been thanked: 3 times

Re: Problem setting mini stick as buttons

Postby PhoenixCNE » Tue Mar 06, 2018 1:37

Not sure if I did it correctly but it works ... First set the stick back as dmars, then go to the Axes2Buttons tab, set number 5 and 6 to edges 2 for type, set the hysteresis (I think this is how far you move the stick to activate button push? I have mine set to 1%) and set the virtual button number in the last pulldown box.

scipio72
Posts: 16
Joined: Thu Jan 11, 2018 3:23
Been thanked: 1 time

Re: Problem setting mini stick as buttons

Postby scipio72 » Tue Mar 06, 2018 19:56

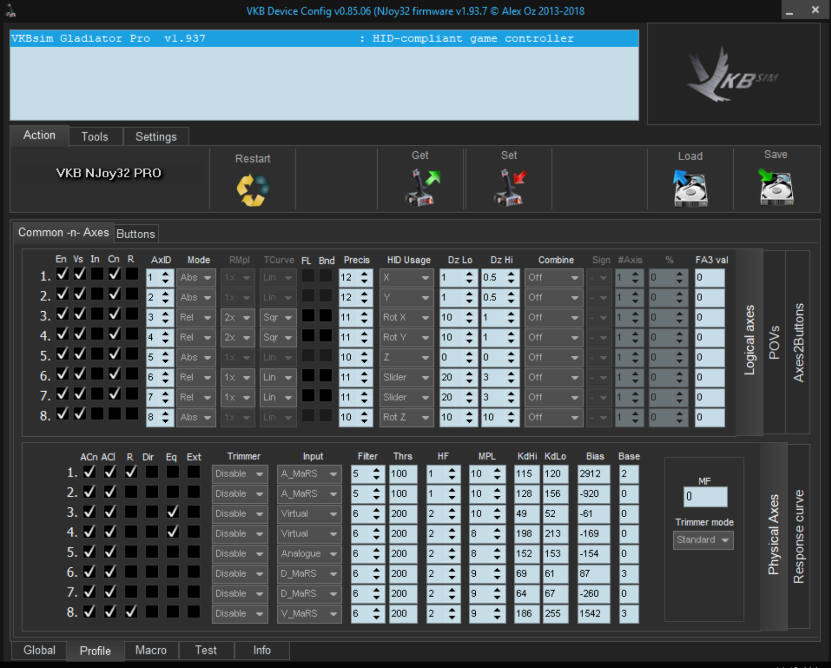

I tried these settings in axes2buttons with no change

User avatar
Victorus
Posts: 969
Joined: Wed Sep 21, 2011 13:25
Has thanked: 131 times
Been thanked: 120 times

Re: Problem setting mini stick as buttons

Postby Victorus » Tue Mar 06, 2018 22:57

Please download firmware v.1.939 https://drive.google.com/open?id=1sz5Rh1KPsA9TqyeOAFGu-KSxaIiQOa3q
I hope problem will be resolved.

Alex Oz
Posts: 989
Joined: Mon May 12, 2008 9:10
Location: Минск
Has thanked: 2 times
Been thanked: 43 times

Re: Problem setting mini stick as buttons

Postby Alex Oz » Tue Mar 06, 2018 22:59

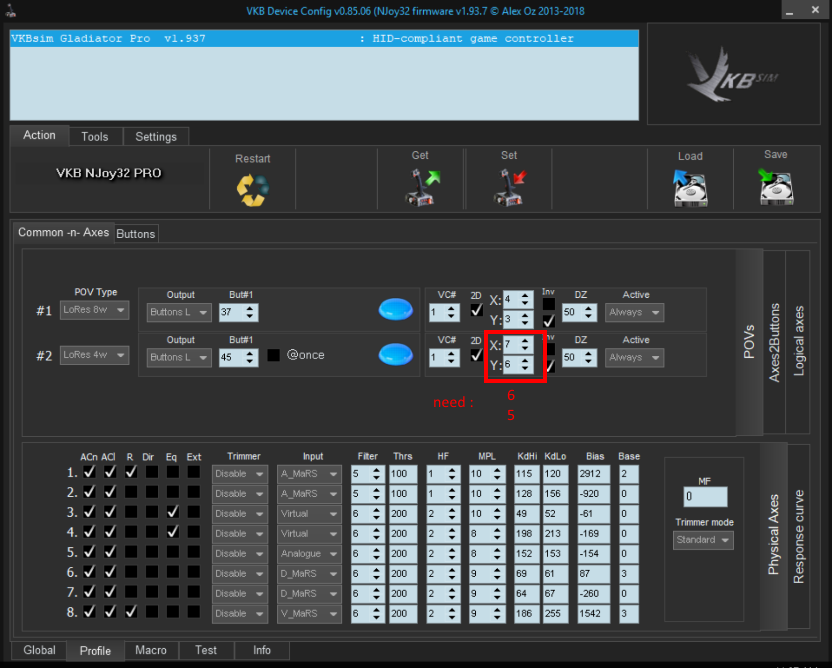

Also set stanard axis bindings in external device,
in settings of POV use
Крайние прошивки и софт / Latest firmware & software
viewtopic.php?f=15&t=908

User avatar
Victorus
Posts: 969
Joined: Wed Sep 21, 2011 13:25
Has thanked: 131 times
Been thanked: 120 times

Re: Problem setting mini stick as buttons

Postby Victorus » Wed Mar 07, 2018 0:09

TS has Gladiator, so Axis#5 is analog, Throttle, Z axis. Axes 6 & 7, Rot Y & Rot Z are used for POV2. By default they are used for pedals, D-Mars type. IMHO. Thus axes numbers are right.
Try! Practice is a criterion of the truth))

scipio72
Posts: 16
Joined: Thu Jan 11, 2018 3:23
Been thanked: 1 time

Re: Problem setting mini stick as buttons

Postby scipio72 » Wed Mar 07, 2018 0:55

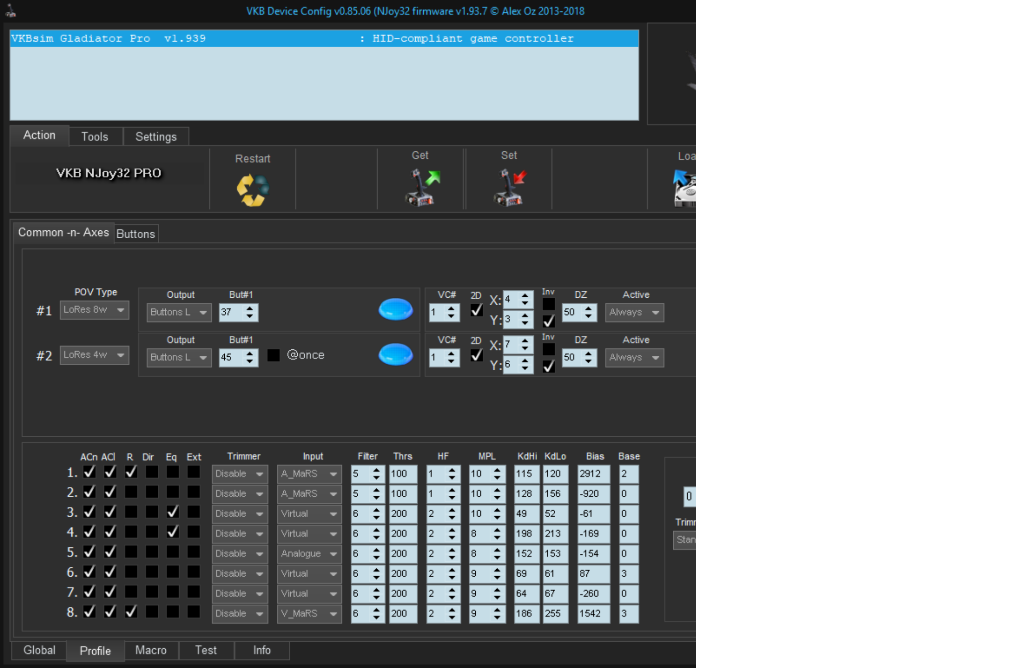

I updated the firmware and tried both 5,6 and 6,7. No change yet. Here are the last settings I tried

Ron61
Posts: 858
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 14 times
Been thanked: 162 times

Re: Problem setting mini stick as buttons

Postby Ron61 » Wed Mar 07, 2018 15:16

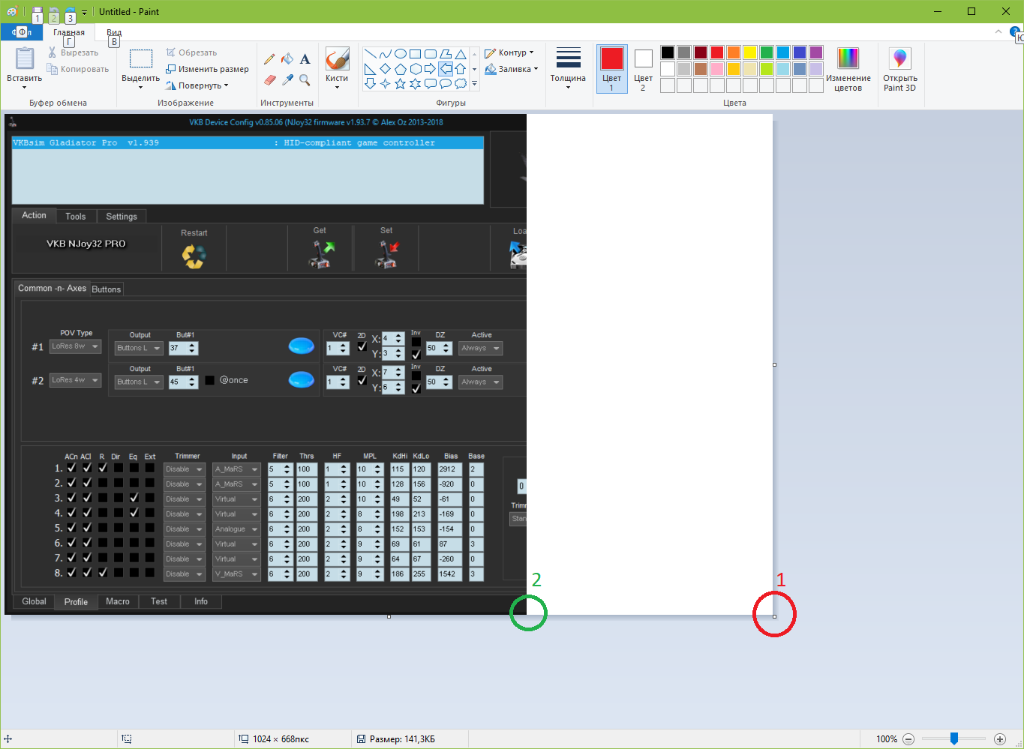

A little bit of advice on how to insert and edit screenshots - when you inserted a screenshot in Paint and want it to occupy the whole place when you save it without an unnecessary white box on the right (maybe not just on the right), you need to drag a small white box to the bottom right (1) (2). Save and paste into your post. I think nothing complicated. An example with your screenshot.



Untitled redacted.png


Show a screenshot of the Global and Profiles tab-> Buttons-> physical and logical level.
Try it after saving the values with the Set button, press Restart next to it, on the left.
And yet, just in case, change the value in HID Usage one Slider to Dial.

scipio72
Posts: 16
Joined: Thu Jan 11, 2018 3:23
Been thanked: 1 time

Re: Problem setting mini stick as buttons

Postby scipio72 » Wed Mar 07, 2018 20:04

I tried changing one HID slider to dial and hit set then restart with no change.




User avatar
Victorus
Posts: 969
Joined: Wed Sep 21, 2011 13:25
Has thanked: 131 times
Been thanked: 120 times

Re: Problem setting mini stick as buttons

Postby Victorus » Wed Mar 07, 2018 21:04

How do you test virtual buttons press? Joytester, Windows, Test tab of VKBDevCfg?
Save your current profile. Go to Butt0ns - logical layer tab. Press Srv button. Press Clear all button and OK in Physical layer dialog. We try to enable all buttons (No function disable) and reset logical button mapping (their numbers will correspond to physical ones). Set new settings and test stick.
You see one POV only because #HAT counter value = 1 (Global - Common tab). Check.
Try to set another first button number. Instead of 45.

scipio72
Posts: 16
Joined: Thu Jan 11, 2018 3:23
Been thanked: 1 time

Re: Problem setting mini stick as buttons

Postby scipio72 » Wed Mar 07, 2018 22:06

That worked Victorus :D Thanks for all your help guys.

User avatar
Victorus
Posts: 969
Joined: Wed Sep 21, 2011 13:25
Has thanked: 131 times
Been thanked: 120 times

Re: Problem setting mini stick as buttons

Postby Victorus » Wed Mar 07, 2018 23:03

Congratulations!
