Gunfighter Y-Axis Spike

Postby hughlb » Sat May 20, 2017 13:03

I have noticed that there is a strange 'step/spike' in my y-axis. It isn't a physical step, in that the spring tension increases in a linear fashion through the y-axis rotation. However when pulling the stick towards me there is a spike in the graph. I have tried running the VKB Device Config tool to calibrate the stick multiple times, but I can't get rid of this step. It is noticeable enough that it is affecting control of the aircraft, which is how I discovered it to begin with.

Can someone explain what is happening?

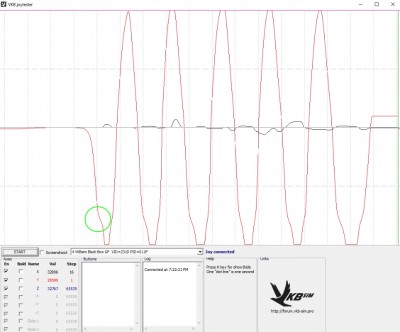

Here is an example with me trying to move the Y-axis at an even speed - note that I felt no additional resistance where the step is.

Last edited by hughlb on Sat May 20, 2017 13:18, edited 1 time in total.

User avatar
rrohde
Posts: 527
Joined: Thu Oct 08, 2015 9:28
Location: Oklahoma, USA
Has thanked: 510 times
Been thanked: 196 times

Re: Gunfighter Y-Axis Spike

Postby rrohde » Sat May 20, 2017 13:18

This is something more along the line of UIV's expertise. Going to ping him.
VKB North America
https://VKBControllers.com

hughlb
Posts: 21
Joined: Fri Aug 05, 2016 11:02
Has thanked: 2 times
Been thanked: 1 time

Re: Gunfighter Y-Axis Spike

Postby hughlb » Sat May 20, 2017 13:22

Thanks Rainer, I really hope its just software related.

Edit: Further testing reveals more about how the problem works.

Basically, when pushing the stick away from center, the travel along the Y-Axis is consistent. Pulling the stick back from center immediately makes the curve steeper (quicker) than average, then it hits the step where the curve is flatter (slower), then it speeds up above average again. It seems that the overall travel across negative and positive y-axis is the same, but it speeds/slows/speed when pulling back on the stick. Again, none of this feels any different physically.

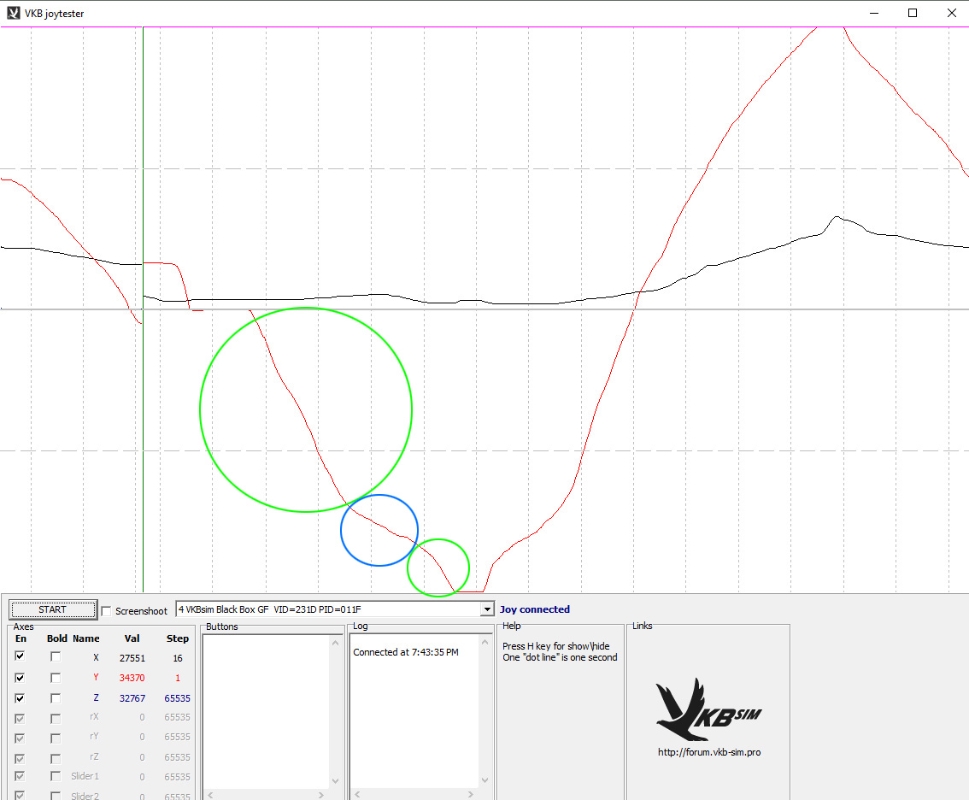

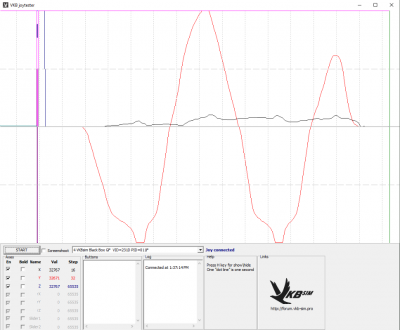

green circles are where travel is faster than average, blue is where it's slower.

Attachments

User avatar
rrohde
Posts: 527
Joined: Thu Oct 08, 2015 9:28
Location: Oklahoma, USA
Has thanked: 510 times
Been thanked: 196 times

Re: Gunfighter Y-Axis Spike

Postby rrohde » Sun May 21, 2017 4:46

Until UIV chimes in, can you post a screenshot from your VKBcfgDev software's Profile screen?

There are some settings for us to look at.
VKB North America
https://VKBControllers.com

hughlb
Posts: 21
Joined: Fri Aug 05, 2016 11:02
Has thanked: 2 times
Been thanked: 1 time

Re: Gunfighter Y-Axis Spike

Postby hughlb » Sun May 21, 2017 5:07

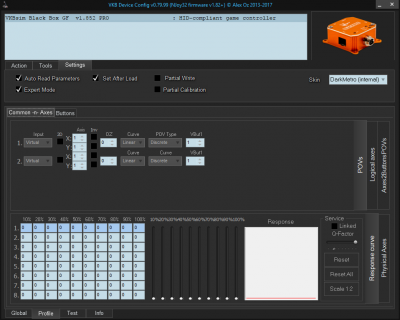

Sure can. Are these the two relevant pages?




User avatar
rrohde
Posts: 527
Joined: Thu Oct 08, 2015 9:28
Location: Oklahoma, USA
Has thanked: 510 times
Been thanked: 196 times

Re: Gunfighter Y-Axis Spike

Postby rrohde » Sun May 21, 2017 5:27

Yep, just checking your calibration - and it looks good.

If you want to experiment a little, change the MPL from 10 to 9 from the Profile page, and then "Set" it, and then recalibrate (full aft, full front, full left, full right) and try Joytester again.

Another thing to try is the maybe increase the dead zone, which is currently 0.5, to 1.0 (got to "Set" it as well), recalibrate, and try again.

Just a few thoughts. :)

Still waiting for UIV to chime in with more detail, but these are software settings you can tweak yourself for now.
VKB North America
https://VKBControllers.com

hughlb
Posts: 21
Joined: Fri Aug 05, 2016 11:02
Has thanked: 2 times
Been thanked: 1 time

Re: Gunfighter Y-Axis Spike

Postby hughlb » Sun May 21, 2017 5:50

Thanks Rainer, I've tried MTL to 9 and Deadzone to 1 (on a side note, that is a better deadzone setting, thanks). But the axis problem still remains the same.

User avatar
rrohde
Posts: 527
Joined: Thu Oct 08, 2015 9:28
Location: Oklahoma, USA
Has thanked: 510 times
Been thanked: 196 times

Re: Gunfighter Y-Axis Spike

Postby rrohde » Sun May 21, 2017 6:00

Roger that.

Let's wait for UIV then. :)
VKB North America
https://VKBControllers.com

User avatar
rrohde
Posts: 527
Joined: Thu Oct 08, 2015 9:28
Location: Oklahoma, USA
Has thanked: 510 times
Been thanked: 196 times

Re: Gunfighter Y-Axis Spike

Postby rrohde » Sun May 21, 2017 6:20

Oh, and just wondering if you tried and adjusted the damper settings on the Y-axis at all? Does that change that little "bump" you're experiencing?
VKB North America
https://VKBControllers.com

hughlb
Posts: 21
Joined: Fri Aug 05, 2016 11:02
Has thanked: 2 times
Been thanked: 1 time

Re: Gunfighter Y-Axis Spike

Postby hughlb » Sun May 21, 2017 7:11

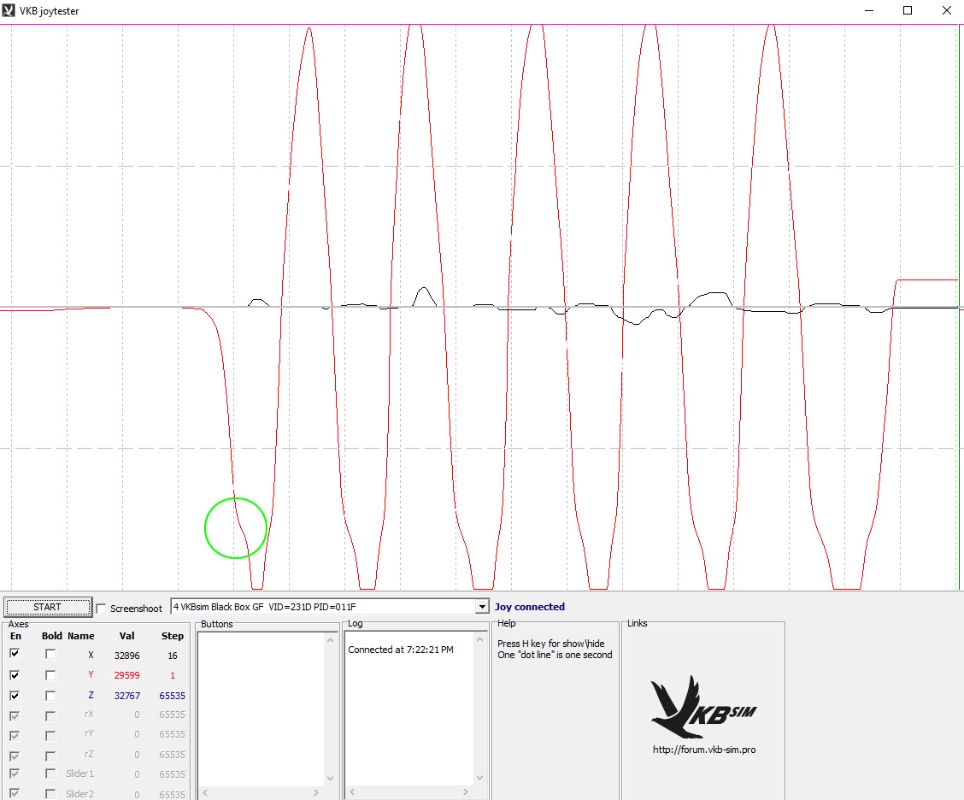

My previous test had been done with the damper engaged - not 'helicopter' style, but enough that the stick would return to center without many oscillations - a damped feeling. I have just tried removing the effect of the damper entirely by loosening both the damper screws and nuts. This hasn't affected the problem at all - the below image is with the dampers completely disengaged:


User avatar
rrohde
Posts: 527
Joined: Thu Oct 08, 2015 9:28
Location: Oklahoma, USA
Has thanked: 510 times
Been thanked: 196 times

Re: Gunfighter Y-Axis Spike

Postby rrohde » Sun May 21, 2017 7:21

Thanks for checking this.

I expect that UIV will chime in once he has a chance.
VKB North America
https://VKBControllers.com

Ron61
Posts: 978
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 18 times
Been thanked: 183 times

Re: Gunfighter Y-Axis Spike

Postby Ron61 » Sun May 21, 2017 11:13

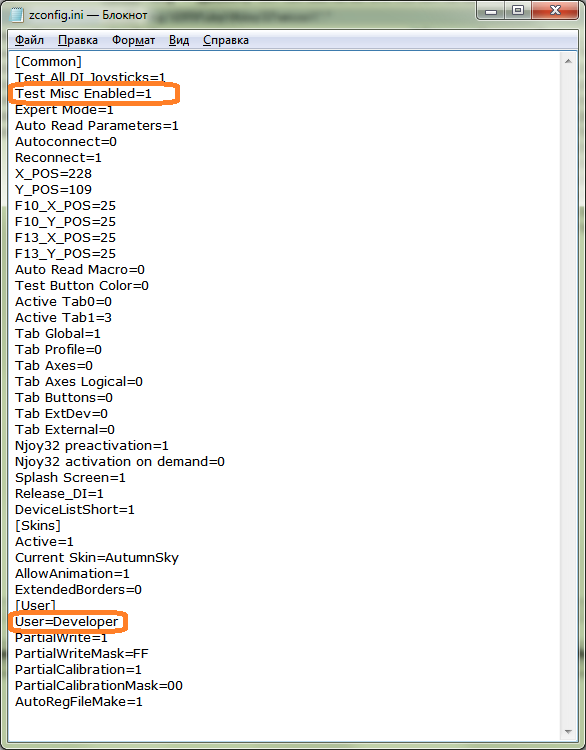

A similar case was with Gladiator (pictures below) It turned out, the problem is in fixing the magnet. Anything can happen. It is unlikely, but it may be worth checking in your case? And write an additional line User = Developer in the zconfig.ini file to have a red "Default" button to reset it to the factory settings.

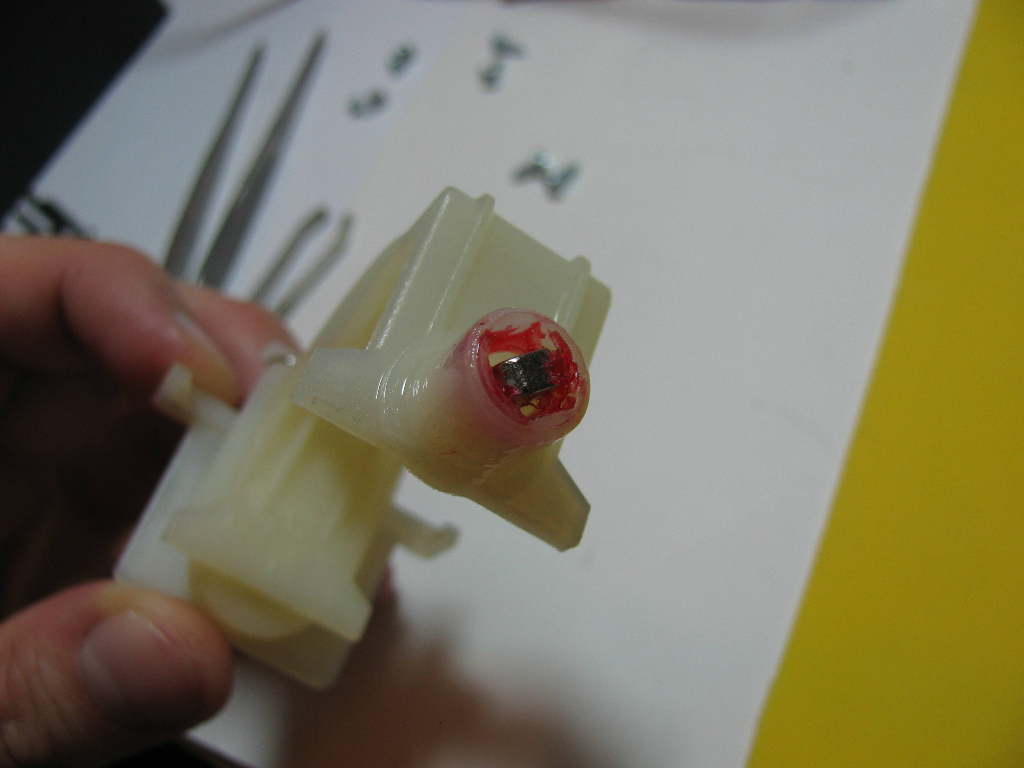

It should be :):

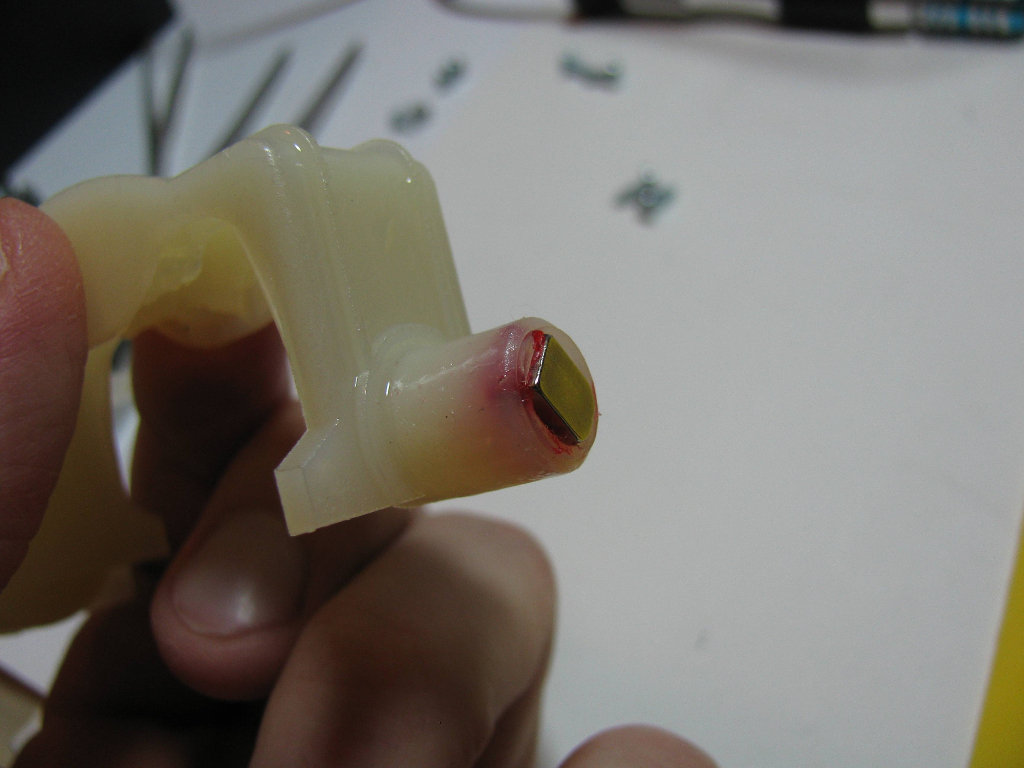

It was :(:

hughlb
Posts: 21
Joined: Fri Aug 05, 2016 11:02
Has thanked: 2 times
Been thanked: 1 time

Re: Gunfighter Y-Axis Spike

Postby hughlb » Sun May 21, 2017 12:19

Thanks for sharing Ron61 - if it turns out to be a hardware issue eg. gimbal alignment or something glued incorrectly, I'd have to discuss an RMA procedure with VKB, given it's brand new, and under warranty. My hope is that it's software related. We'll know more soon.

Ron61
Posts: 978
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 18 times
Been thanked: 183 times

Re: Gunfighter Y-Axis Spike

Postby Ron61 » Sun May 21, 2017 12:39

Try resetting to Default and calibrating again. Screenshots after the procedure are only welcome.

hughlb
Posts: 21
Joined: Fri Aug 05, 2016 11:02
Has thanked: 2 times
Been thanked: 1 time

Re: Gunfighter Y-Axis Spike

Postby hughlb » Sun May 21, 2017 12:59

I am just waiting on a response from UIV before I do more investigating. He might know exactly what the issue is, and how to approach fixing it. I'll keep you posted.
