is it posible map axes to key stroke

Moderator: AdminGroup

prainx
Posts: 25
Joined: Wed Jun 01, 2016 23:25
Been thanked: 5 times

is it posible map axes to key stroke

Postby prainx » Sun Apr 16, 2017 6:23

I am trying to map the up and down arrows to my Y access. I have VKB Dev CFG loaded up but can get it to go. Or is it possible to split the axes so forward is one axes and back on stick another axes? Any help would be awesome.

User avatar
Victorus
Posts: 1193
Joined: Wed Sep 21, 2011 13:25
Has thanked: 233 times
Been thanked: 181 times

Re: is it posible map axes to key stroke

Postby Victorus » Sun Apr 16, 2017 22:16

About axis split - yes we can. Iwill find my example configuration.
About mapping - i do not understand what do you want. 1. A2B function allows to assign buttons to certain axis positions. So when you rotate axis some virtual buttons will be consequently be pressed. 2. Trimmer function allows to assign axis for button. A pair of buttons will increase/decrease axis response. This is very brief explanation.
Руководство пользователя по контроллерам VKB (VKB controllers User Guide) Ru&En
https://1drv.ms/u/s!AkQlcss8yrCfhWDsFAX ... 2?e=cqOuhq

prainx
Posts: 25
Joined: Wed Jun 01, 2016 23:25
Been thanked: 5 times

Re: is it posible map axes to key stroke

Postby prainx » Mon Apr 17, 2017 0:46

An example would be awesome thanks. I'm trying to get forward to act like a throttle every back past center to act as a key stroke. It's for star citizen running duel gladiators.

User avatar
Victorus
Posts: 1193
Joined: Wed Sep 21, 2011 13:25
Has thanked: 233 times
Been thanked: 181 times

Re: is it posible map axes to key stroke

Postby Victorus » Mon Apr 17, 2017 12:38

Very briefly.

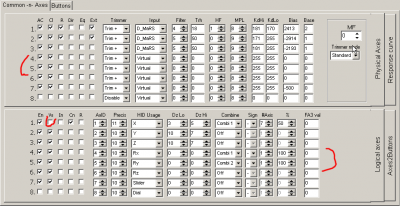

Example. Split axis #1 to 4&5.
Create two Virtual axes (Physical Axes tab)
Make Axis#1 invisible (uncheck Vs)
Set Comby 1 & 2 (different directions) combine type for created axes.
Set combine value = 100 %

Press Set button to set new parameters. Do not look to Combine parameter for Axis#1, That is for other purposes.

Try!
Руководство пользователя по контроллерам VKB (VKB controllers User Guide) Ru&En
https://1drv.ms/u/s!AkQlcss8yrCfhWDsFAX ... 2?e=cqOuhq

prainx
Posts: 25
Joined: Wed Jun 01, 2016 23:25
Been thanked: 5 times

Re: is it posible map axes to key stroke

Postby prainx » Wed Apr 19, 2017 2:22

That got it! Thank you discovered a few other tricks while I was in there. is there a detailed manual on vkb dev cfg? I feel like there is other cool shit that I need to now learn about haha

User avatar
Victorus
Posts: 1193
Joined: Wed Sep 21, 2011 13:25
Has thanked: 233 times
Been thanked: 181 times

Re: is it posible map axes to key stroke

Postby Victorus » Wed Apr 19, 2017 9:48

Hurray!
There is User guide but in Russian only yet(((. You can find a lot of interesting tips, tricks and FAQs in this tread))). Also please ask questions about your wishes and we'll make unbelievable things together))). At least try)))

Advice. Try to find my messages in this forum. I've tried to give illustrated answers to some questions. In English.
Wish success!
Руководство пользователя по контроллерам VKB (VKB controllers User Guide) Ru&En
https://1drv.ms/u/s!AkQlcss8yrCfhWDsFAX ... 2?e=cqOuhq
