KG12 problem - no buttons (SOLVED)

[Ron61]

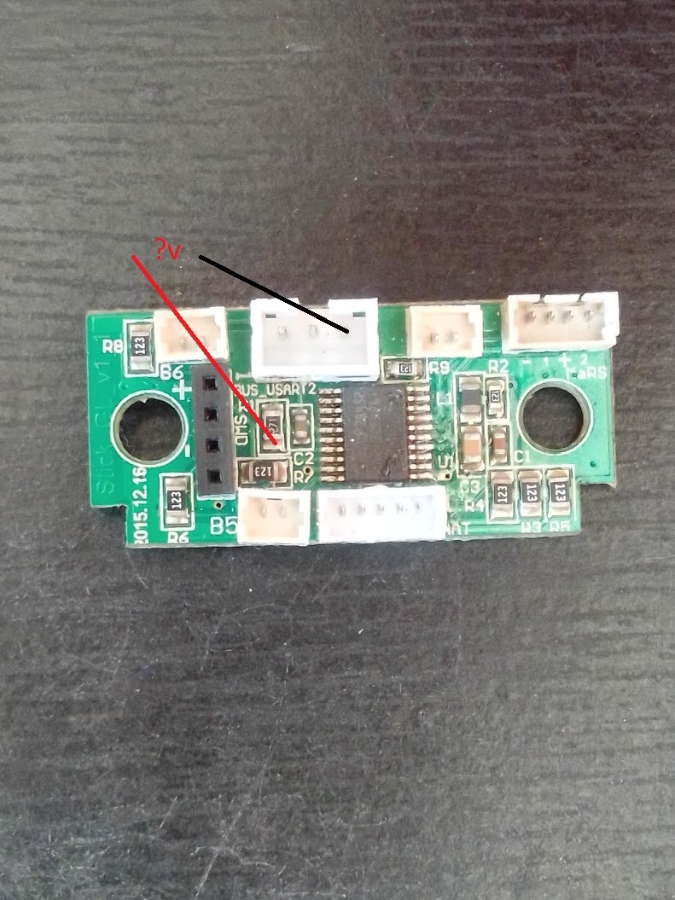

How much is relatively black here?

[Zappovitz]

Ehh .. I can do that .. but what about warranty?

[Ron61]

Dismantling the handle does not affect the warranty. True, if you do not use an ax.

[Zappovitz]

So I have Black - Yellow - red

Black-> Yellow =2.4v
Black -> Red 3.2v

[Zappovitz]

The Black -> yellow is more like 2.48v ~ 2.5v

[Ron61]

Attach your profile to the message so that we can verify it.

[Zappovitz]

Profile

[Zappovitz]

May I assembly the grip .. or is there more measuring to come?

[VirusAM]

Guys i think i have the same issue....
i saw what you asked him here, but i have no skills and tools to do that.
My kg12 arrived last week with the f14 grip. I also have mcg pro.
Both works well, the only one that does not work is the K12.

in this discussion i explain my issues...at the first i thought it was my issue messing with the NG firmware, but then i saw that also with the original one don't work.
viewtopic.php?f=29&p=40180#p40180

I tried with all the latest firmwares and the situation does not change

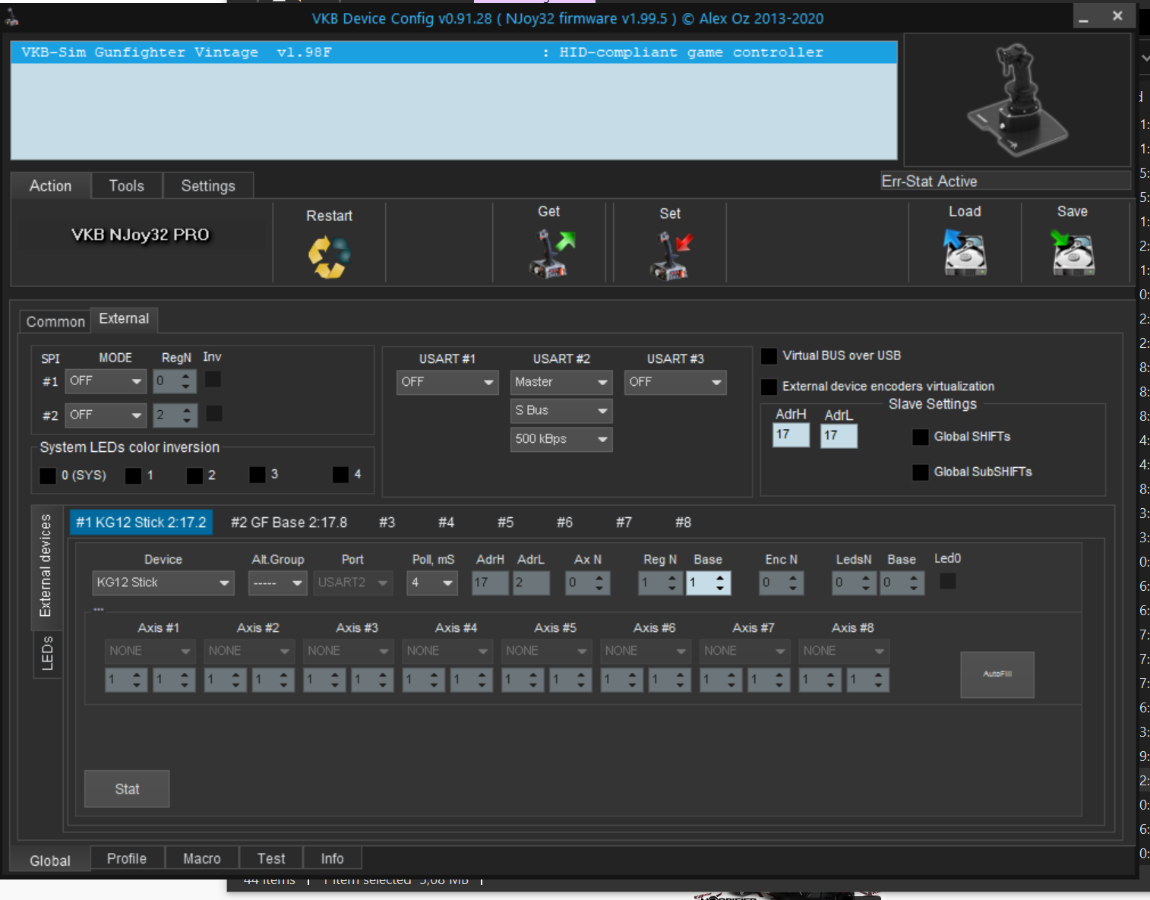

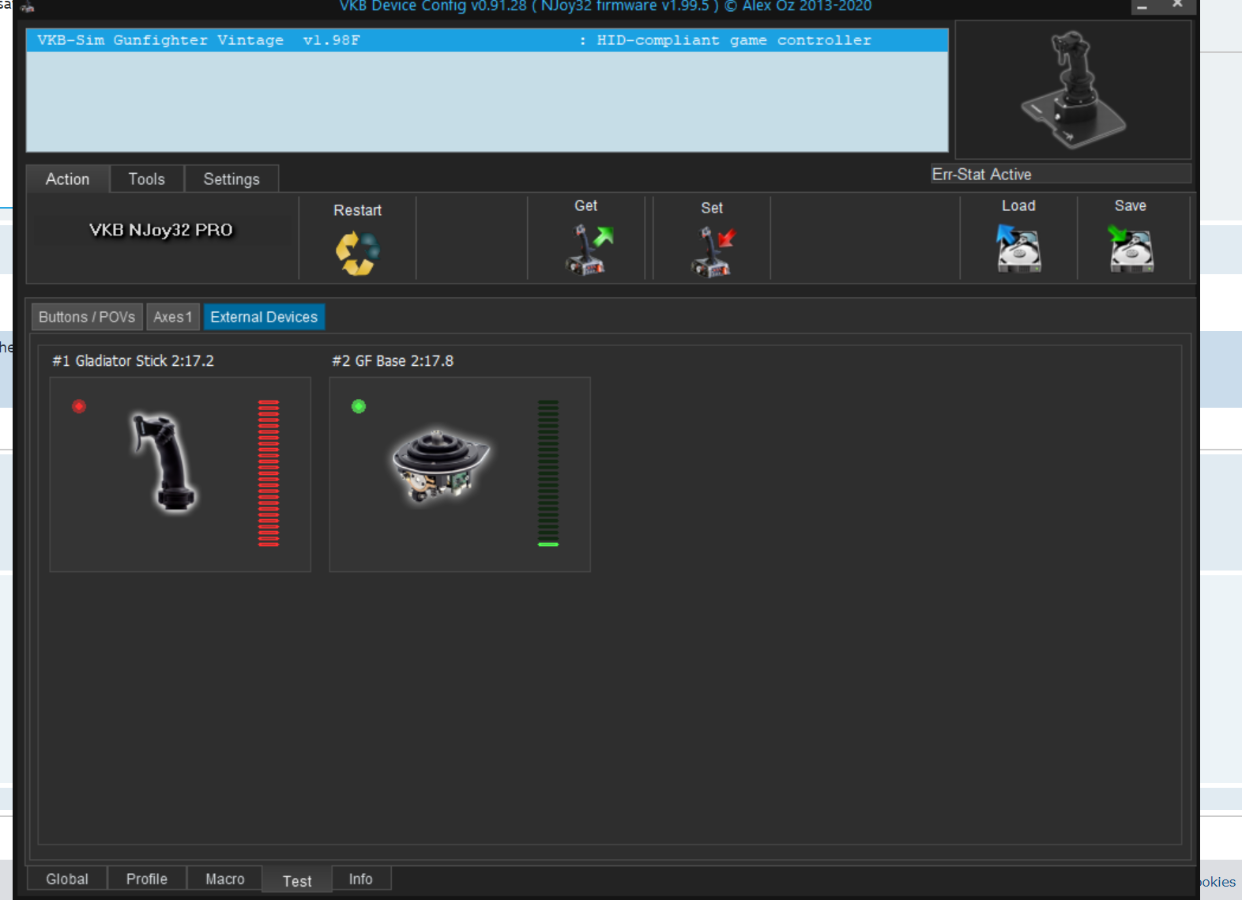

I attach some screenshots here and my profile

[Ron61]

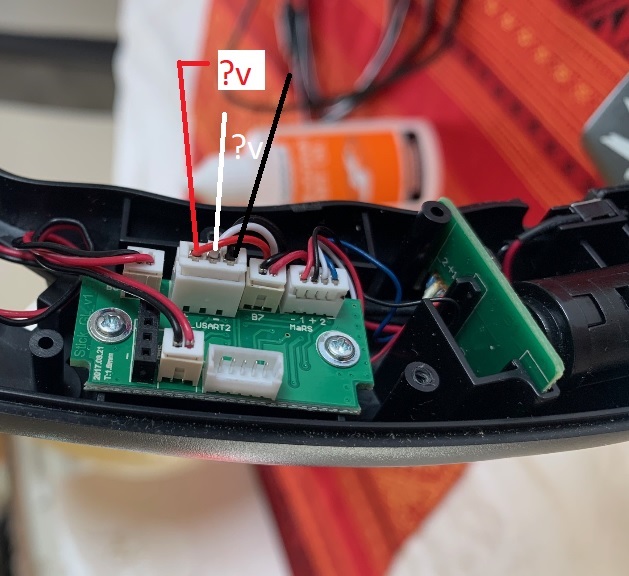

I would like to know the version of your KG12. There will be enough photo boards in the grip.
It concerns both of you.

[VirusAM]

So do you want me to open the grip?
There should be a printed version number on the boards?
If that can be usefult to you, i just received the grip last friday. So it is new, and my base is GFIII

[Zappovitz]

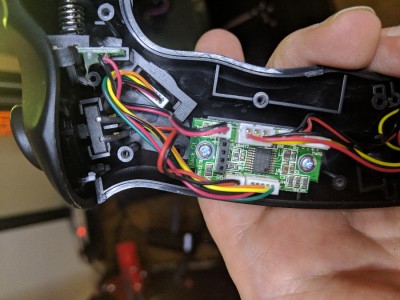

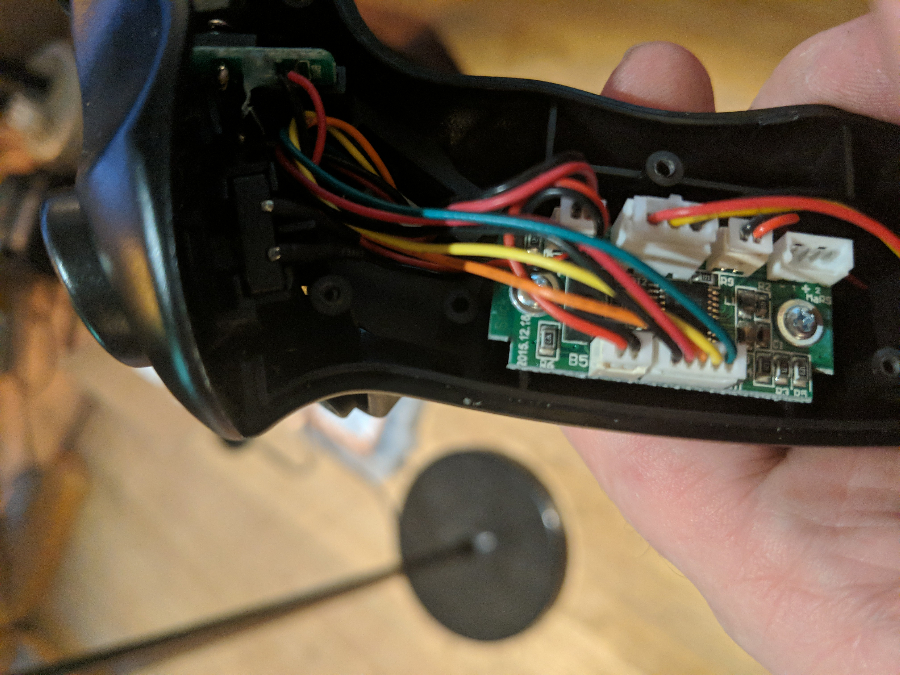

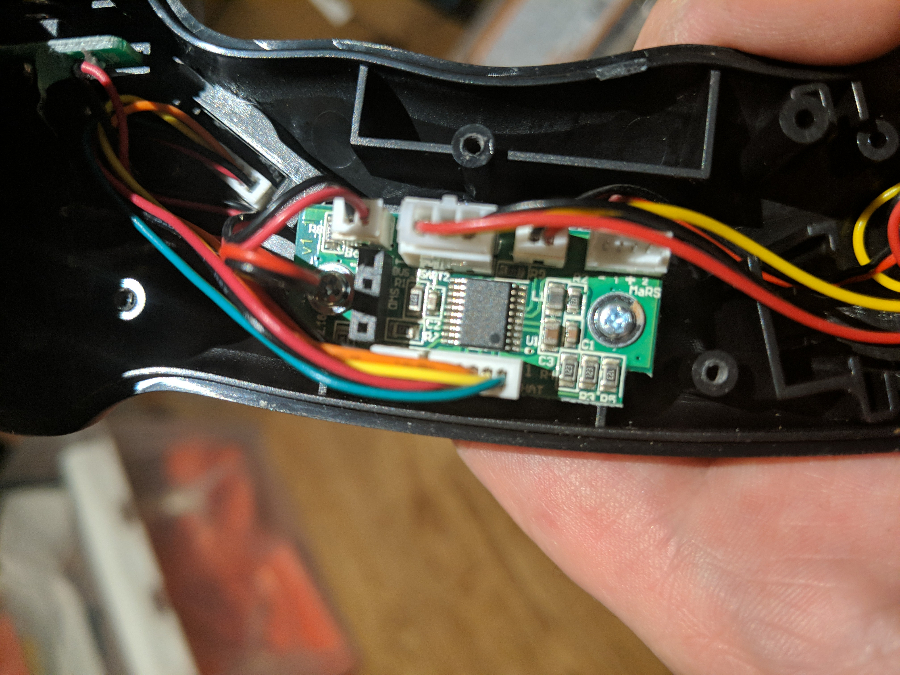

Photos

[Ron61]

This is version GL_v1_1. You can try to measure the voltage to the resistor R1. And also its nominal resistance with the grip turned off. If it's not hard for you. Thank.

[Zappovitz]

2.7v

[Zappovitz]

22 Mohm
