Failed GNX-THQ + Flightstick (in gnx-thq axis x, in flightstick axis z left/right)

[FranSpain]

When connecting GNX-THQ with Flightstick.

Failed:
- On GNX-THQ axis x does not work.
- On Flightstick axis z (left/right) does not work.

Note: Connected with 4 pin cable.

Failure in Flightstick

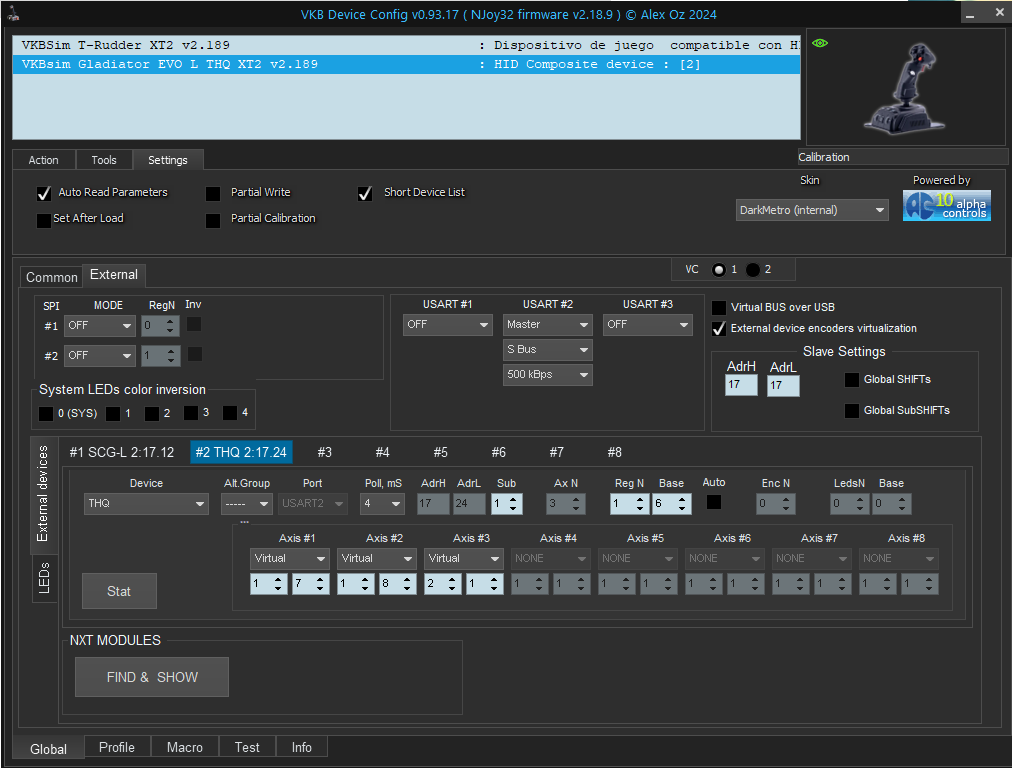

Configuration GNX-THQ

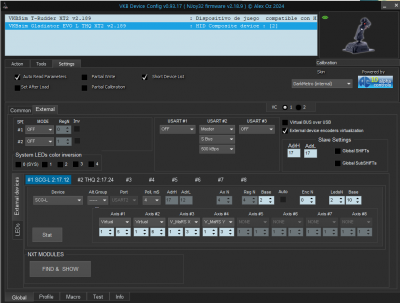

Configuration Flightstick

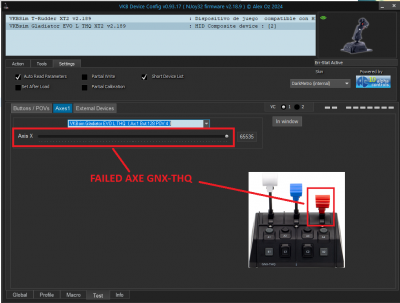

Failure in GNX-THQ

Wired connection between components

[fallout9]

Please use the 3 wires cable to connect them. Plug the 3 pin connector into the Gladiator's 4 pin socket like shown here.
Reset to default and initialize after plugging back to USB.

[FranSpain]

It also fails with a 3-pin connector.

It worked after changing the firmware to version _Gladiator_EVO_v2_18_D.vkd.

However, with the old firmware, the Z axis doesn't reach the maximum value.

[Delta]

Switch your firmware version. 2.18.9 has issues with axes when a THQ is connected.
