Gladiator NXT - jitter on stick axis

[GroowyMg]

Hey, I have two problems with Gladiator NXT, bought a month or so ago:

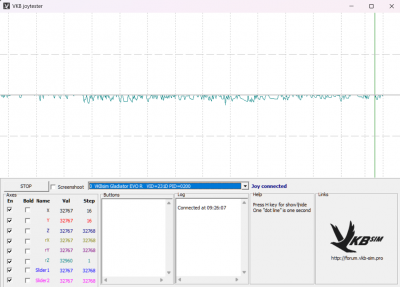

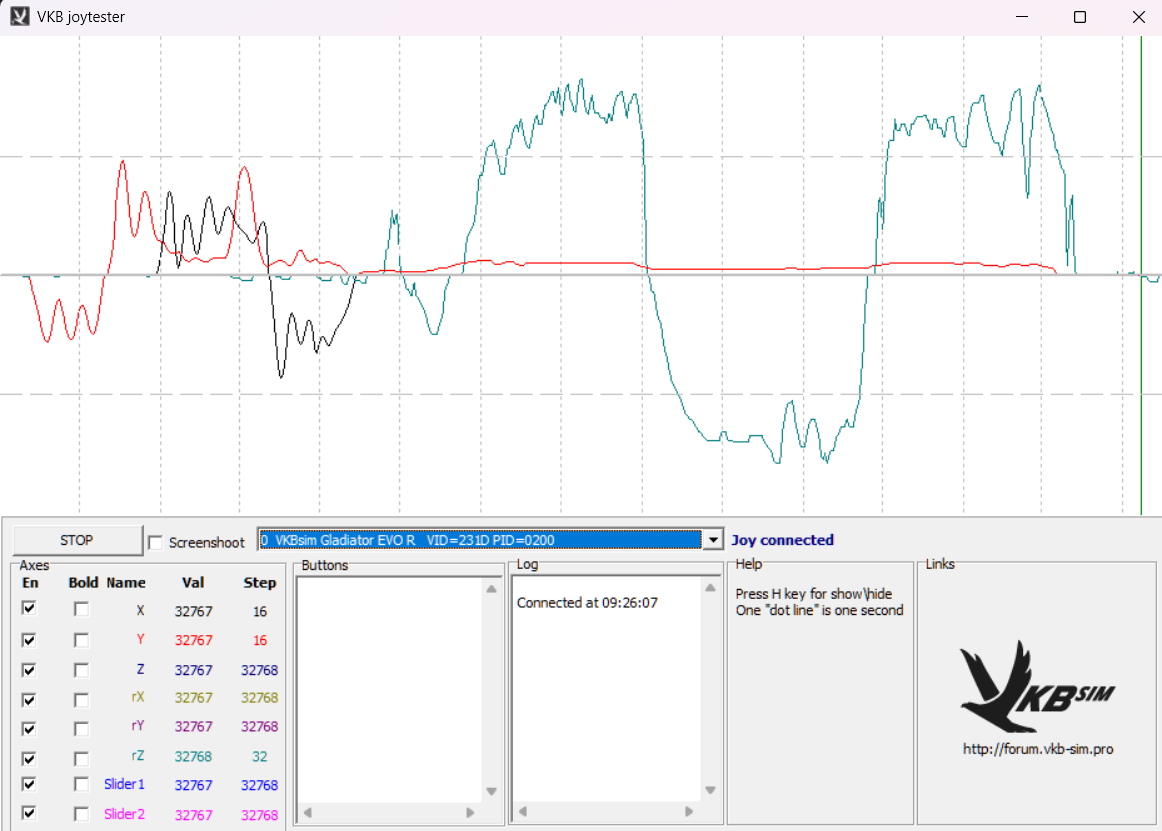

1. "RotZ" axis jitters. See screenshot, to compare it to "X" and "Y" axis.

I tried flashing firmware, and problem persisted. Also, I have a new problem now:

2. "Z" slider jumps from value 0 to 32767 instantly without steps in between.

I tried without success:
- turning off nearby router and speakers,
- flashing it with different firmware,
- used different USB cable,

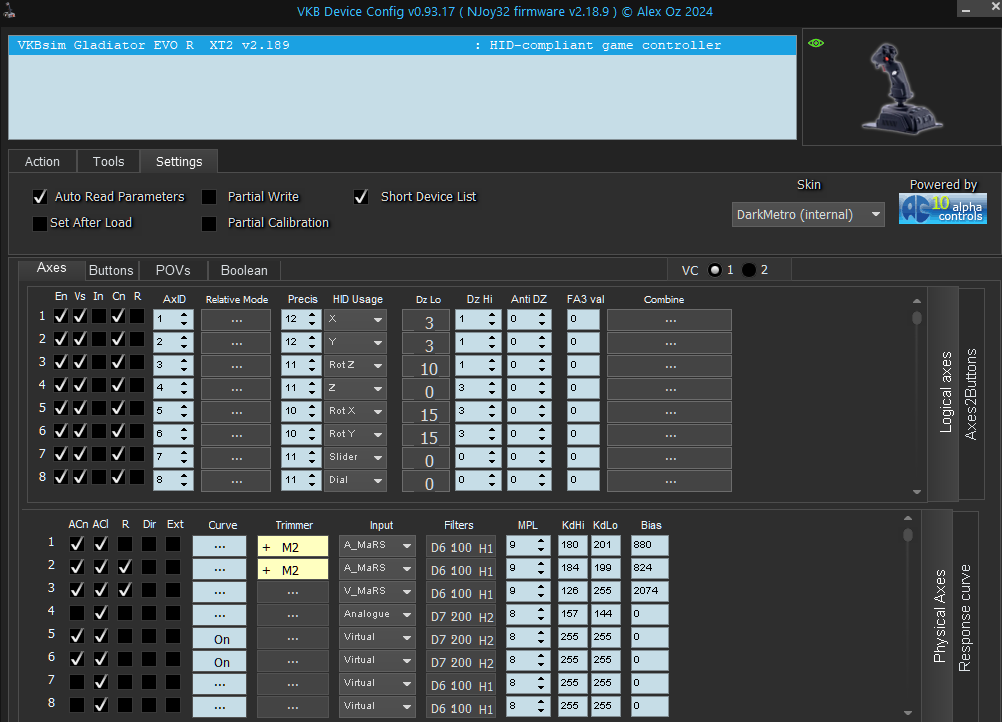

- changing parameters like Deadzone and Precision in VKBDevCfg-C,
- opening the stick and cleaning the magnet.

Maybe I flashed it with wrong firmware? I tried "Gladiator_EVO_kmz41_v2_18_9.vkb" and "Gladiator_EVO_v2_18_9.vkb" with similar problems.

Any suggestions? Thank you.

[fallout9]

Please contact support with this issue.

[GroowyMg]

Thank you, i opened a ticket on support site. I'll let you know here, when resolved.

Forgot to mention: i calibrated it numerous times with different firmware, but Z jitter doesn't go away.

Still, if you have suggestions, feel free to post...

[Ron61]

Try firmware v.2_18_D from here, with reset to default and autoconfiguration before calibration.

[GroowyMg]

Thanks, I tried both "_Gladiator_EVO_kmz41_v2_18_D.vkb" and "_Gladiator_EVO_v2_18_D.vkb"

with similar results: jitter on RotZ. But Z slider doesn't work at all with this version of firmware.

I also tried "_Gladiator_NXT_v2_18_D.vkb" and I get:

!!! Device signature not correct - flash fail !!!
Please check version of firmware file for this device


Any ideas?

[tolai_nd]

I don't know if you've solved your problem yet, but today I discovered my Omni Throttle left hand got jittering. After trying recalibration without success, I found a super strong magnet in the drawer under the desk was the culprit. Now it works perfectly.

[Ron61]

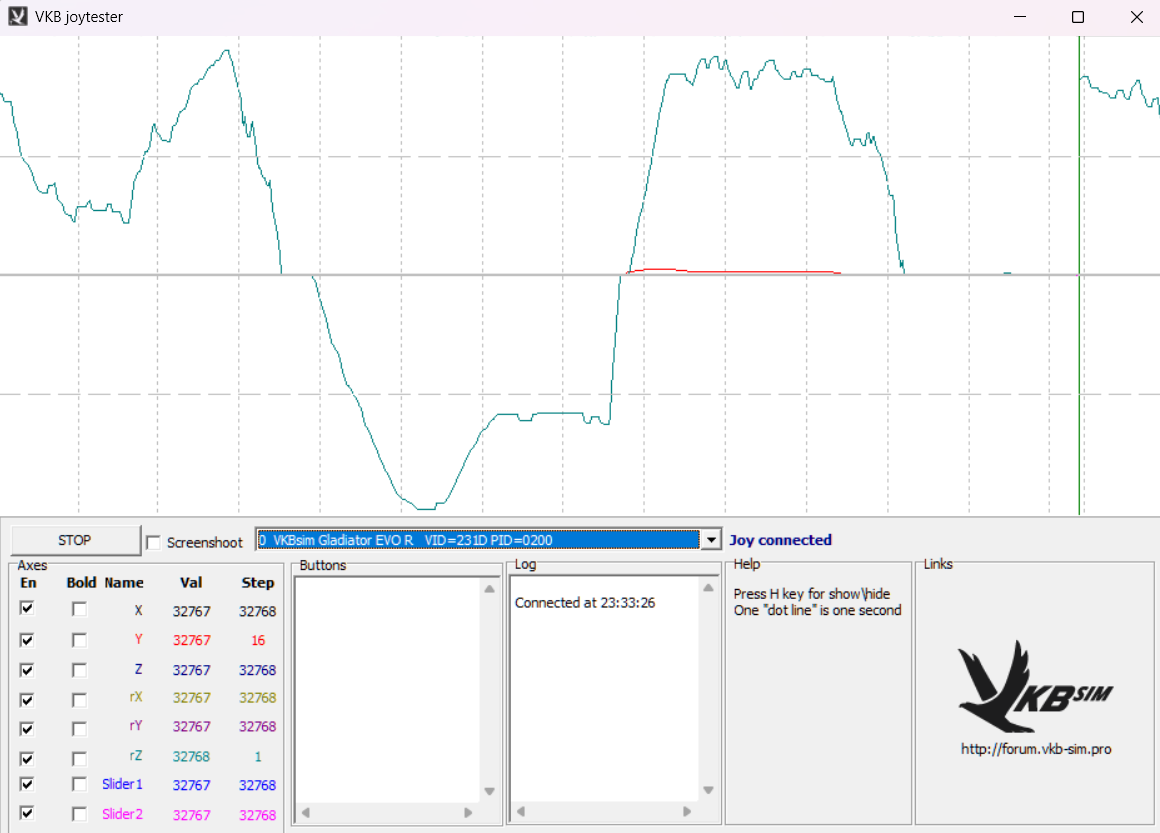

GroowyMg - judging by your screenshots, the twist axis (RotZ) is not fully calibrated. Perhaps something got on the sensor magnet in the grip.
You need to disassemble it and check it.

[GroowyMg]

Update:

- I tried it on different PC (Win 8.1) and second issue with slider goes away! So, i guess it is driver or OS (Win 11) dependant?

- Jitter on axis persists on both PCs, so i guess it is related to a magnet. Will try to clean the magnet.

[GroowyMg]

Update 2:

- Throttle slider still jumps from 0 to 1 on my win11 PC. It must be some software conflict, because i can not reproduce it on other PCs. I need to investigate further.

- Jitter on twist axis was finally FIXED after replacing "main PCB where the grips's controller is located" by the official technical support!
