[solved] Crv and Crv2 functions forcefully assign curves to all axes

[jukelo]

Firmware: 2.18.F(5), 2.18.9, 2.17.7 (absent from 2.17.6 and earlier)
Software: 0.93.21, 0.92.96

Issue(s):

1. When button with Crv function is pressed, all Curves become enabled for all physical axes regardless of the Crv button's options. This respects the Curve N value defined in the Curve Options wizard of the Physical Axes page. This is true even if no axis is selected in the Crv button's options.
2. When button with Crv2 function is pressed, all axes not selected in the Crv2 options will be have their (Physical axes page's Curve N) curve enabled, as with the Crv function above. Axes and curves referenced in the Crv2 button's options are correctly assigned and enabled as expected.

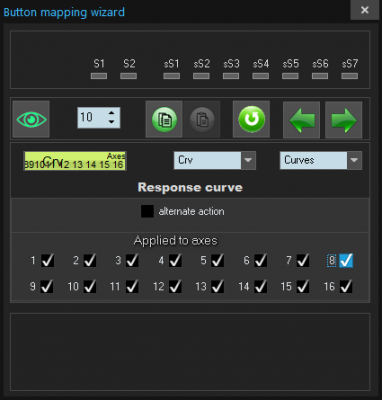

So this:

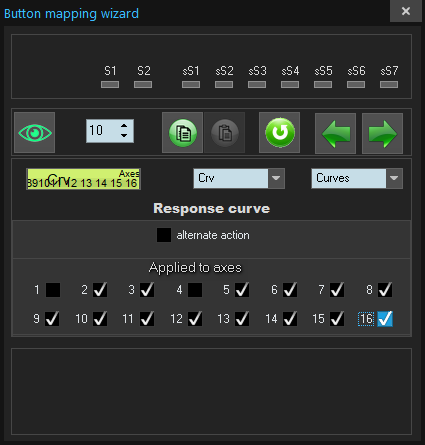

Will behave like this:

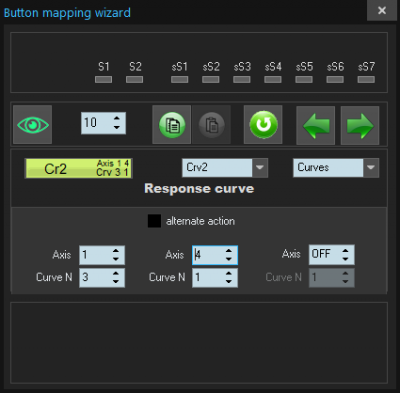

While this:

Will behave like these:

+

[Alex Oz]

Thanks, check v2_18_F(6)

[jukelo]

Awesome, this works.

Edit: Although I'm getting a device signature error with _BlackBox_Mk3_Unified_v2_18_F.vkb for the GF4 + MCGU + TRV.
I'm getting word The BB1 and BB2 files also fails to flash.

Might I also ask you for a GNX USB file?

[Alex Oz]

I rebuilt the batch, try again
