Gladiator NXT EVO Metal Base Dimensions

[MaxJ345]

Hello,

I recently ordered a pair of Gladiator NXT EVO's (Space Combat Edition). I plan to mount them using aluminum extrusions. I'd like to know the dimensions of the metal base that comes included with the kit.

What size are the four mounting holes in the corners? How far away are they spaced from each other (center-to-center)?

For reference, I'm speaking of the holes circled in red:

[fallout9]

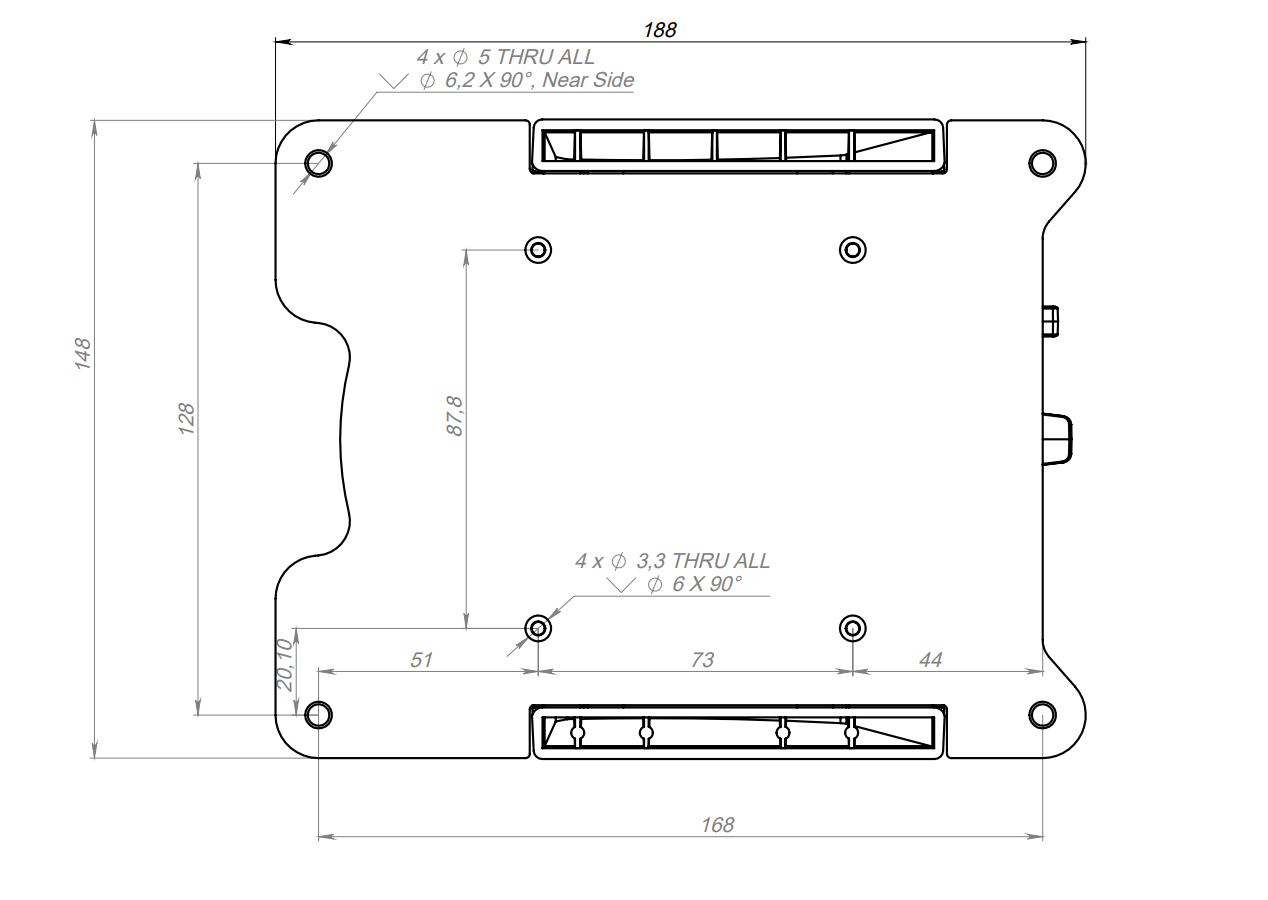

Here you go.

[MaxJ345]

Fantastic! Thank you!

[captain-sq]

Hi,
I need to adapt the Gladiator EVO base to a desk mount as the provided plate is to wide. I think a custom 3D printed PLA plate will do the trick.
The provided drawing is great but I also need the "side slots" dimensions and their placement relative to the center holes. I would be very grateful
if you could add these dimensions.

Best regards

[fallout9]

Best thing for you is to remove the base plate, then draw the shape of the base on a sheet of paper. You already have the screw mounts on the blueprint above, as well as the side panes; that will help with orientation.
