GNX WWII Throttle Combo

Postby EL Cid » Thu Jul 11, 2024 21:43

GNX WWII Throttle Combo. Do you have the dimensions and mounting screw locations for base of this unit? I want to mount it (screw) to a metal base that is cut with universal mounting holes and slots and I need to know if it will fit. Thank You.
Top
Ron61
Posts: 3542
Joined: Tue Jan 15, 2013 23:56
Location: г.Минск
Has thanked: 46 times
Been thanked: 690 times

Re: GNX WWII Throttle Combo

Postby Ron61 » Fri Jul 12, 2024 13:38

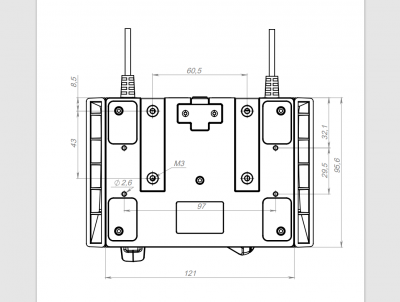

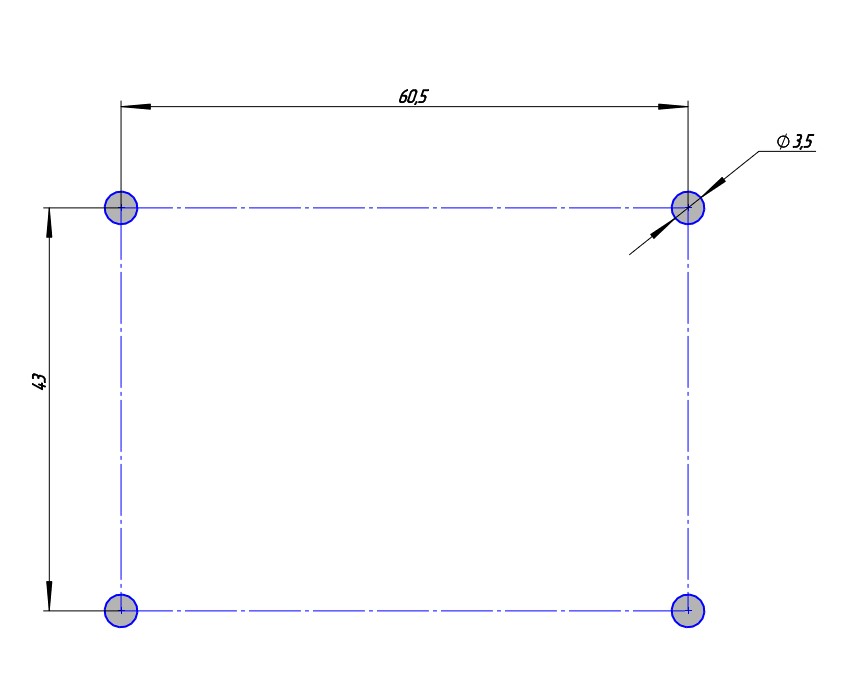

Perhaps these are the sizes you are looking for.
