STECS Thumbwheel Axis Issue

Moderator: AdminGroup

Vithus
Posts: 1
Joined: Fri May 17, 2024 18:03
Has thanked: 1 time

STECS Thumbwheel Axis Issue

Postby Vithus » Fri May 17, 2024 20:45

My STECS (Mini Plus) thumbwheel axis has become inconsistent within about 20-30% of its range. I've had the throttle since late January and started noticing very slight "jitter" in this axis input around maybe late March or early April. It was very minor at first, but it's worsening over time even with limited use of the throttle, and I wouldn't expect this to wear out so quickly.

The input is smooth outside of the problem area, but inside that range it becomes inconsistent, stalling and jumping forward & back. Small movements within this range also cause seemingly random input that often continues past the point of removing my finger from the wheel.

Physically, there's a very slight rubbing sensation within the affected range - barely noticeable unless I'm paying attention. The wheel has a very slight "wobble" as it turns, but I wouldn't imagine this to be outside of tolerable motion. The grip of the wheel doesn't appear to be making visible contact with the stem of the throttle at any point within the range of motion.

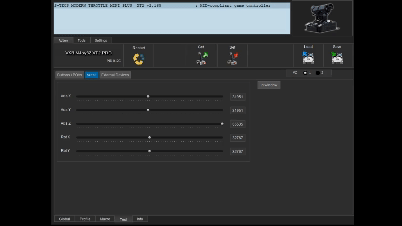

I've attached a gif showing the input (problem area should be obvious, right of center), first turning smoothly through the area, and then making very small movements into and out of it.

What can be done to fix this issue? I've tried recalibrating just in case, which (as expected) didn't help. This has become an impediment due to this being my zoom axis and my preferred default FOV being in the problem area, which makes it very difficult to get the right view for normal flight. I'm going to have to find an alternative solution until this can be resolved.
Attachments
2024-05-17 12-07-44.gif

User avatar
fallout9
Posts: 5447
Joined: Wed Oct 03, 2018 20:37
Has thanked: 222 times
Been thanked: 1266 times

Re: STECS Thumbwheel Axis Issue

Postby fallout9 » Fri May 17, 2024 21:10

If the throttle is properly calibrated and the axis still acts like that please fill up a service ticket.

simmeone
Posts: 40
Joined: Thu Mar 28, 2019 12:03
Has thanked: 21 times
Been thanked: 1 time

Re: STECS Thumbwheel Axis Issue

Postby simmeone » Sun May 19, 2024 15:26

Hi,

I have an similar issue with my gunfighter, suddenly the X, Y or Z (rudder pedals) axis turns crazy. Often it helps to unplug the USB cable, or press the stick to max X or Y axis. In gameplay it is very annoying and makes me crazy.
Is my orange black box defect?

User avatar
fallout9
Posts: 5447
Joined: Wed Oct 03, 2018 20:37
Has thanked: 222 times
Been thanked: 1266 times

Re: STECS Thumbwheel Axis Issue

Postby fallout9 » Mon May 20, 2024 9:35

This is a completely unrelated issue, most probably an uncalibrated device.

virgo47
Posts: 2
Joined: Thu Sep 21, 2023 18:54

Re: STECS Thumbwheel Axis Issue

Postby virgo47 » Thu Jan 23, 2025 15:48

My thumbwheel also started to jump randomly in some range. I recalibrated the throttle but the problem persisted. I'm going to file a service ticket. But the axis is prone to some problems, obviously.
