Unintended output from Axis X

[Gelobi]

Hello everyone,

I have recently received my Gladiator NXT and I am on a mission to try and use it on a Playstation 4 ("PS4") (I will be playing on PC, too) via another piece of hardware I will use to convert the flight stick outputs into PS4 inputs / outputs. The flight stick is connected directly to my PC.

I have already removed many unintended outputs by disabling some axes and unbinding buttons via the VKB Device Config app. However, I am still receiving an output from axis X with 100 force. Of course, I don't discard the possibility that this can be an error on the other hardware.

I have already read and re-read the manual but could not identify what else I could do on the VKB Device Config software to identify and disable this output.

I have taken many screenshots of the windows I think are relevant, hoping that someone could spot what I am missing.

If there is nothing that can be done, then there is nothing. But, I had to ask.

Thank you for your help and time.

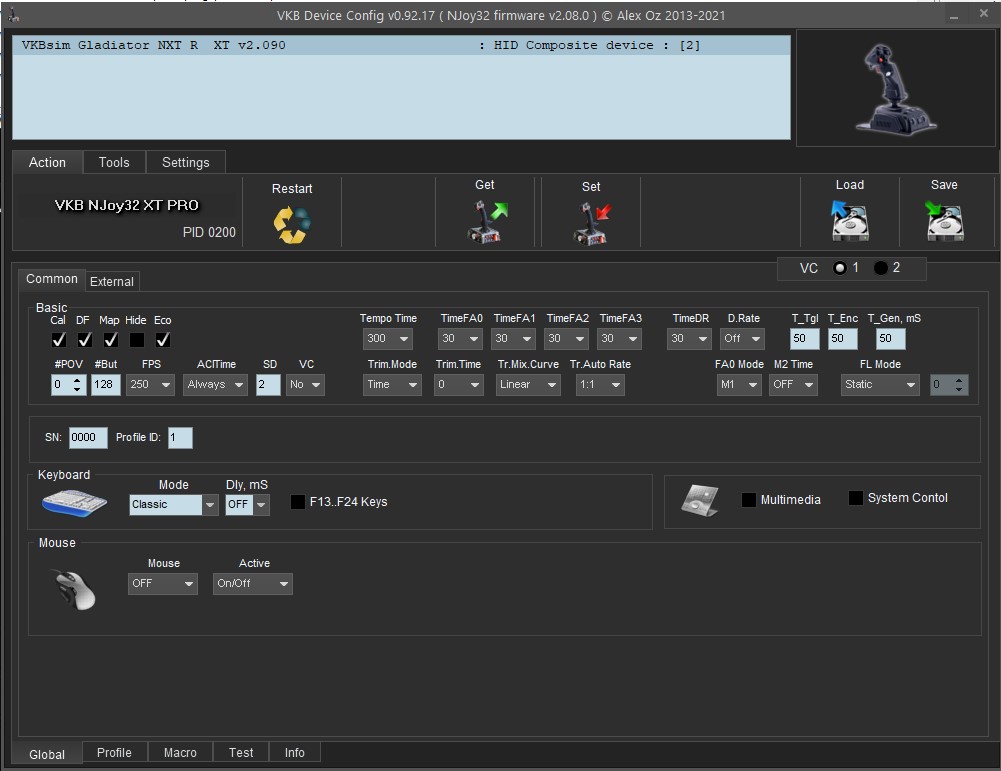

Global / Common

Info

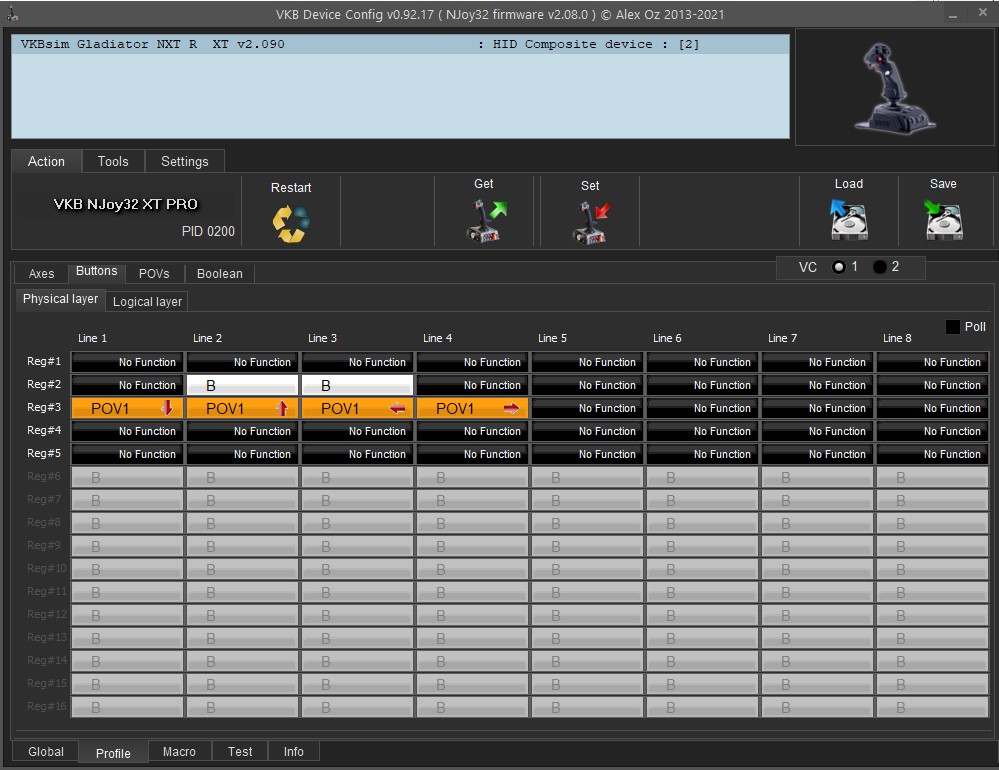

Profile / Buttons

Profile / Axes

Test / Axes

Profile / POV

Global / External

[fallout9]

I see that you already disabled all axes, except of X, Y and RotZ. If you want axis X disabled, you could do the same way - uncheck the En box in Profile/Axes/Logical axes. Try also Vs option; not sure how your PS4 thingie works, but might be helpful.
In case you want to use the joystick on both PS4 and PC I recommend to create 1 profile for each, instead of getting through all these changes every time when you change platform:
Profile 1 - reset to default, press Find&AutoConfig button, calibrate, press Save button -> save PC profile.
Profile 2 - reset to default, press Find&AutoConfig button, calibrate, do all these changes with disabling axes and buttons, press Save button -> save PS4 profile.
