SCG-L Premium trigger reassembly

[MikeStyles27]

I have swapped the mini stick for the included hat switch, and reassembled everything. it all works, but my secondary trigger is not quite seating right. the trigger sits partially depressed unsuppported by the L spring. Since the second trigger was not covered in the youtube video I found covering SCG dissasembly, I was hoping someone could give me assistance from there.

[fallout9]

Could you post a picture showing the way you put the second trigger back?

[MikeStyles27]

Sorry for the delay, real life has had its fun now.

Back to the fun projects. I realized I had reinstalled my hat switch pegs SIDEWAYS... I have fixed that up and remounted the hat switch PCB. Now it's time to reassemble the two triggers.

I have them disassembled, so let's just take it from here. I see that there is a notch in the back of the black trigger. Is this supposed to hook the spring somehow? I also notice the two springs are of different strengths. In which order should I use them?

Edit: I'm having trouble uploading images from my phone to your servers. Will try again from PC.

[MikeStyles27]

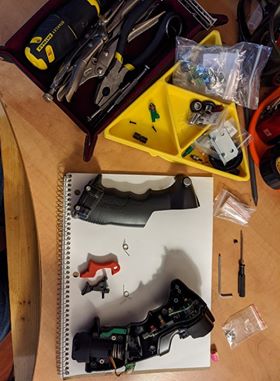

here we are. ready to reassemble

[MikeStyles27]

Solved.

Bit tricky to get on, but I'm sure the masters have their secret techniques.
For anyone who also follows this thread, pay special attention to getting the weaker spring onto the notch on the inward side of the triggers. I had to use a small flathead to poke it into position.

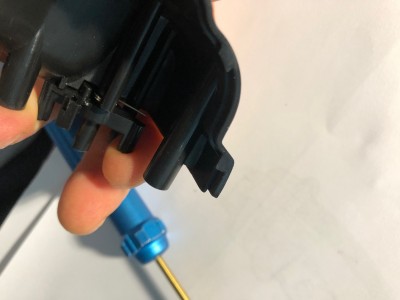

pic below displays correct orientation of springs. weaker one on black trigger, stronger spring on red


[fallout9]

You beat me to it

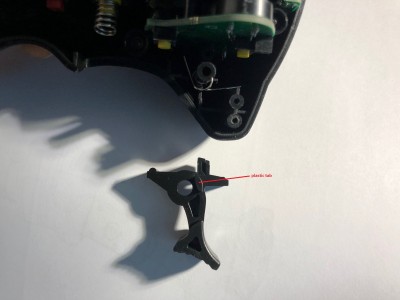

The trick is to put the shorter arm of the spring on the top of the plastic tab on the back of the secondary trigger.
