Adding GF MCG Pro MkIII to T-rudder MkIv

[grinder]

Hi,

Details:
T-Rudder MKIV (standard springs & cams)
GF MCG Pro III (standard springs & cams)
Firmware 1.981 on both

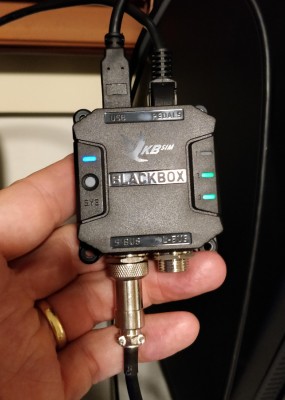

Two blackboxes MKII
VKBDevCfg-C v0.90.93 (NJoy32 firm

This will be obvious to many but I'm stuck.

I can't get both the GF and T-rudder to be visible in VKBDevCfg-C.

About 6 months ago I bought the T-Rudder MKIV and they have been working great. I've now bought the GF MCG Pro III. Prior to getting the GF I updated the rudder's firmware to 1.981. I did the same to the GF. I can't remember if the rudders were connected when I did the GF firmware update.

The GF and rudders both work correctly in VKBDevCfg-C (Axis Z) and DCS. Green lights show 2 devices connected. If I connect both to the blackbox that came with the rudders, I only see the rudders in VKBDevCfg-C. If I connect using GF blackbox I only see the GF. This has stopped me (I think) from enabling virtual toe brakes in T-link. I would prefer to only use the one blackbox.

So how do I fix this? Do i install both the GF and T-rudder firmware? I can't find any instructions about connecting multiple devices. I didn't want to flash the wrong firmware and brick the hardware. If I have followed the wrong procedure what steps should I take?

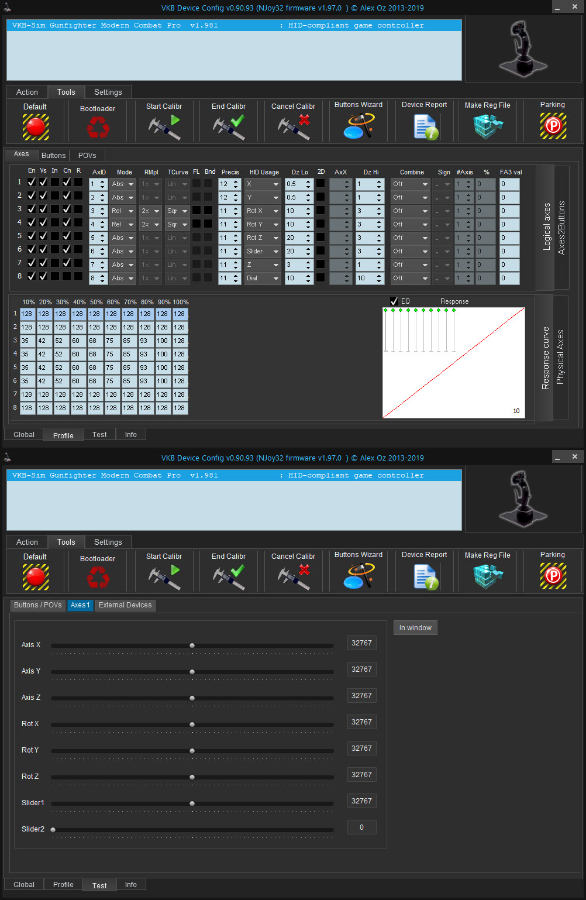

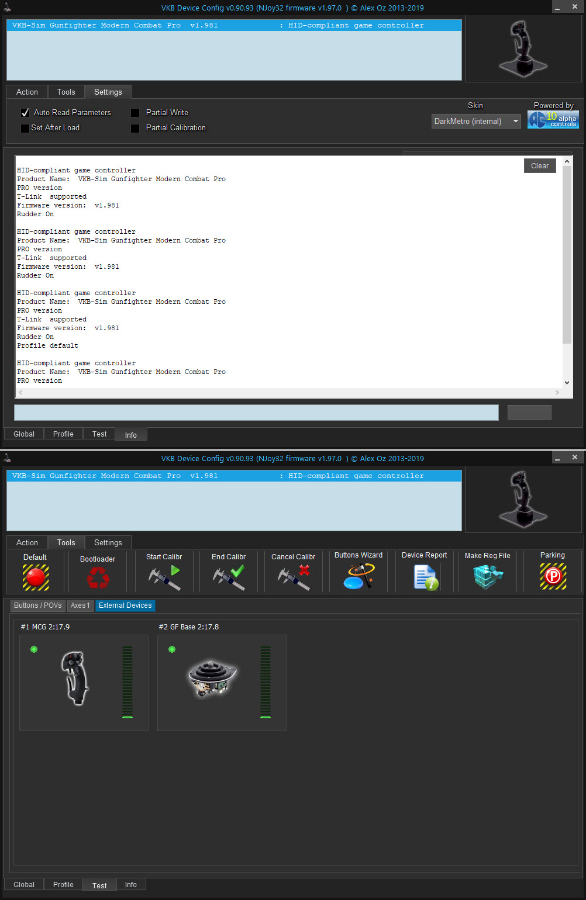

I've attached screen shots (limited to 3 files?). Higher quality images (5) are also in this Google Drive folder
https://drive.google.com/open?id=141i12 ... iHHTyesE9t

Thanks for your help.

Matt

[Ron61]

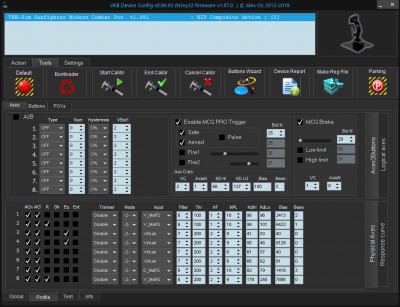

When using one BlackBox and pedals connected to it, you need to calibrate them (7th axis). After calibration, show a screenshot of the Profile-Axes tab (physical axes).
p.s. take screenshots with the Alt key (Alt + PRTSCN), then they are more readable.

[grinder]

Ron61,

Thank you for the quick reply. Attached is the screenshot. As I mentioned in my original post, the rudders are working but not visible in the connected devices or in T-link, which I assume means it can't be set to virtual toe brakes. Screen shot with ALT+F11.

Regards,

Matt

[Ron61]

If I understand correctly, you need separate brakes from the axis of the brake grip? Look at this topic, paying attention to the numbers in each settings column.

[grinder]

Thank you,

I had assumed that I would see the rudder pedals in the connected devices at the top of the VKBDevCfg program as I had seen in many demonstrations and tutorial videos. So everything is working how it should. I will work through the post you linked and hopefully i can get the virtual top brakes working.

Regards,

Matt
