Linear, no center are what I actually expected when I first heard about the space cams. I was a bit surprised when I found out that there still is a center, don't get me wrong though, I still like and use them.
I'd still like to have a linear, no center cam. So here's another vote.

I'm sorry. I'm not a native english speaker myself, that makes some things hard to understand.

I try again, is this what you want?:


top is GF-L
bottom is GF (right)

result:

I'm not sure what you mean by "harvester" in this context. The "main" board where most of the cables go into?


I will write an email.
Thank you so much for your time and help!

Yes, the LED was burning. I now went ahead and also changed the Boards. That is: Axes X board from right, working GF into left GF. -> no change Axes Y board from right, working GF into left GF. -> back to normal, see Screenshot: boards-transferred.png So I assume an issue with the axes Y board? The ...

I think I understand.

So I removed the four screws up top and the one cable and moved the gimbal with boards into the "Ring" of the other GF.
The issue is still there, no X and Y axes.

I do not fully understand.
I transfer the board from one of the bases to the other one? one by one?
What do you mean "without mounting on the mechanics"? Just connecting the board and plugging them in without screwing them onto the gimbal?

Okay. I transferred all of the cables.

Cables from the left base work fine with the right base.
Cables from the right base inside the left do have the same problem.

Seems to me it's either the sockets of those cables or the boards?
Is there anything more I can do?

The LED on the board is on, red color. I already transfered one of the cables, see: http://forum.vkb-sim.pro/viewtopic.php?f=25&t=3863&p=37429#p37403 As I said there I took the cable you marked as "cable X" from the right GF und put it in the left GF. The cable did also not work in...

First I did the same steps as before with the right part, only now with the left parts -> yes, there is a problem, the X and Y axes do not See this screenshot of left parts: ext-dev-left.png I've changed the Base, so now I have right BB with left GF and right SCG I did not flash anything, just conne...

Okay, I did these steps, I hope I understood everything correct (language barrier): ⋅ Disconnected left BB, GF-L & SCG-L ⋅ Configurator 0.90_77 in new folder with _BlackBox_GF_SCG_v1_97_7.vkb ⋅ removed the Device from the list with USBDeview ⋅ reconnected ...

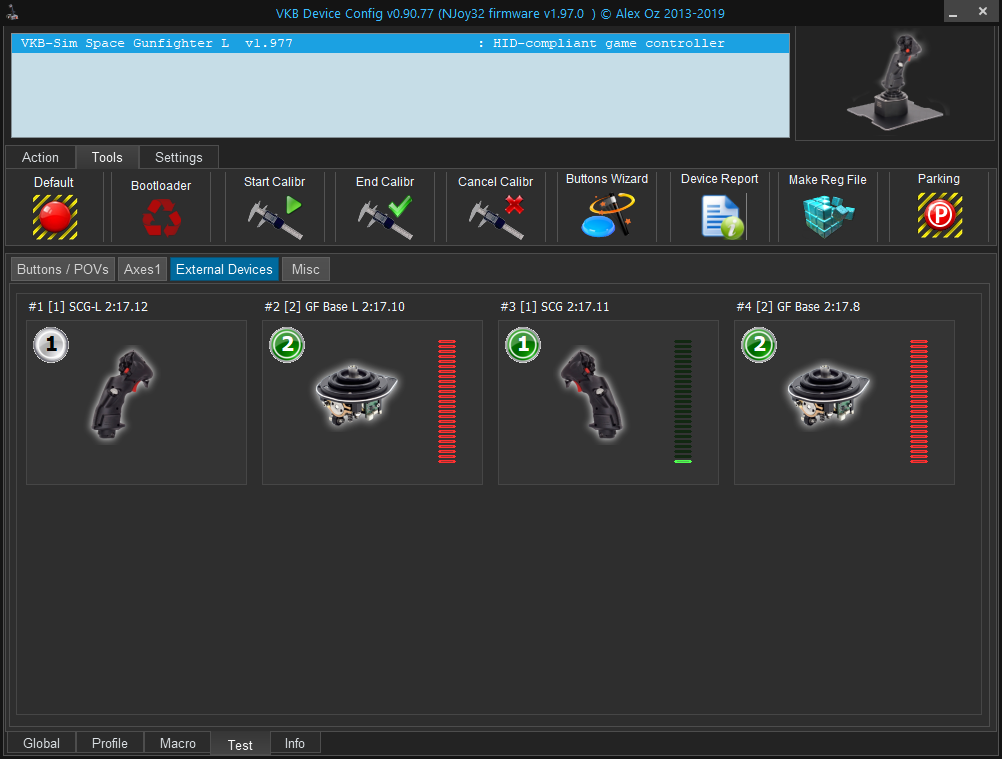

Also the external devices tab, I can add the other ones if needed

More Pictures and Screenshots (I can only add 3 per post it seems)

I've done the following now: Taken/switched the "cable X" from the other GF Base and tried it at the one not working. That did not help. Is that helpful? I do not know how else I could check the reliability of the contact of the 4 pin connectors. I've attached some picture of the gimbal an...

Correct, I have 2 GF Bases (and Blackboxes) with a SCG and a SCG-L. Screenshot of Test-External is now added (the initial post only got 3 of the 4 screenshots somehow), I don't have access to the device right now since I'm at work. The other Screenshots are made after Default Button and Calibration....

1 - Gunfighter Mk II, SCG-L Premium 2 - Firmware v1.977 3 - #30 Springs (one per axis) 4 - #3 Cams 5 - VKBDevCfg-C v0.90.56 - z-Bootloader v1.15 The issue: I have "lost" the X and Y axis on my left SCG, or rather the gunfighter. The twist and mini-stick however work. The stick-LED on the B...
