VKB-SIM

Solved... in the VKB configuration program, "Configuration Profile" menu, and "HID Usage" column.
Change:
- Z to "Rot y".
- "Rot y" to Z.

Note: The assignment cannot be changed in-game.

- The "Microsoft Flight Simulator" game has an "Axis Sensitivity" section in the configuration menu (4 configurable jostick axes in one control). - The game identifies the GladiatorNxtEvo + GNX-THQ as 1 controller. - The game in one control identifies a total of: -- 2 GladiatorNx...

I'm using that firmware version because higher versions cause problems if you have an SGC connected to THQ. Other users have reported this problem on the forum. http://forum.vkb-sim.pro/viewtopic.php?f=25&t=8310&hilit=calibration My problem is a configuration issue. How do I configure one of...

Rot Y max value: 65535

Version

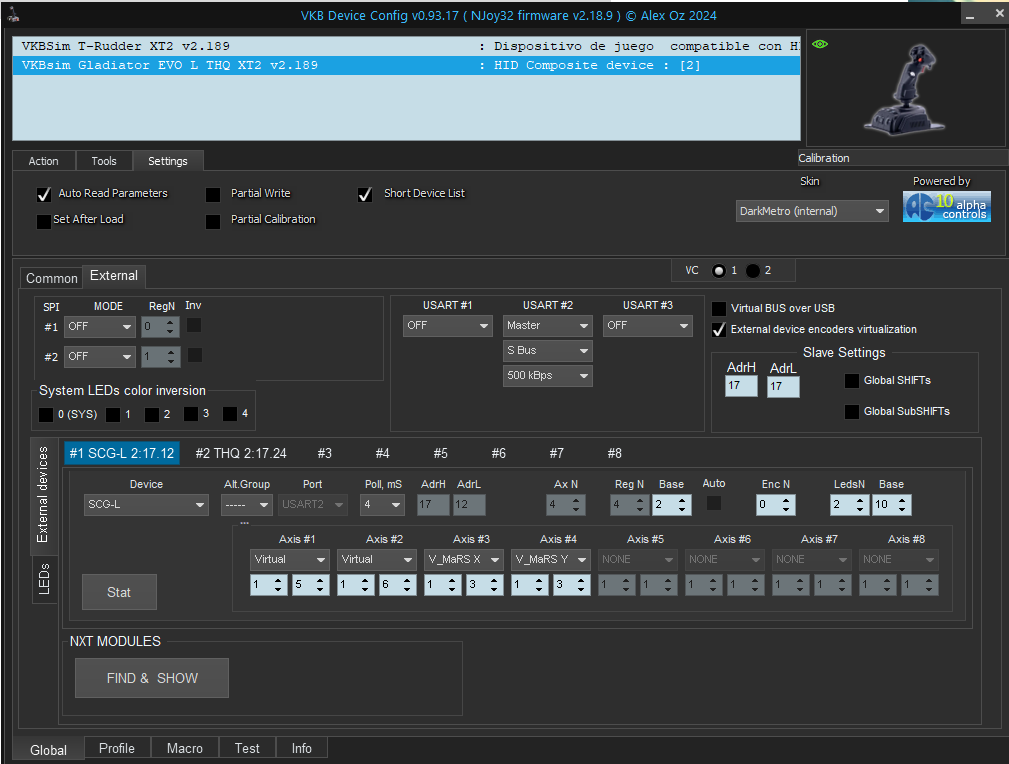

- Only one device is displayed in the configurator: "VKBSim Gladiator Evo L THQ XT2".
- The SGC and THQ are not connected via USB to the PC (only SGC).
- The THQ is connected to the SGC.
- The SGC is connected to the PC.

Note: This is not a firmware issue.

Updated Information and images configuration first post

- I have a GladiatorNxtEvo connected to a GNX-THQ. - Game: Microsoft Flight Simulator 40th Anniversary. How do I set up in GNX-THQ the number 2 axis for the left axis z of Msf? Rot Y max value: 65535 GNX-THQ the number 2 axis --> Msf left axis z. SGC stick only: up, down, left, right. Note: Attached...

It also fails with a 3-pin connector.

It worked after changing the firmware to version _Gladiator_EVO_v2_18_D.vkd.

However, with the old firmware, the Z axis doesn't reach the maximum value.

When connecting GNX-THQ with Flightstick.

Failed:

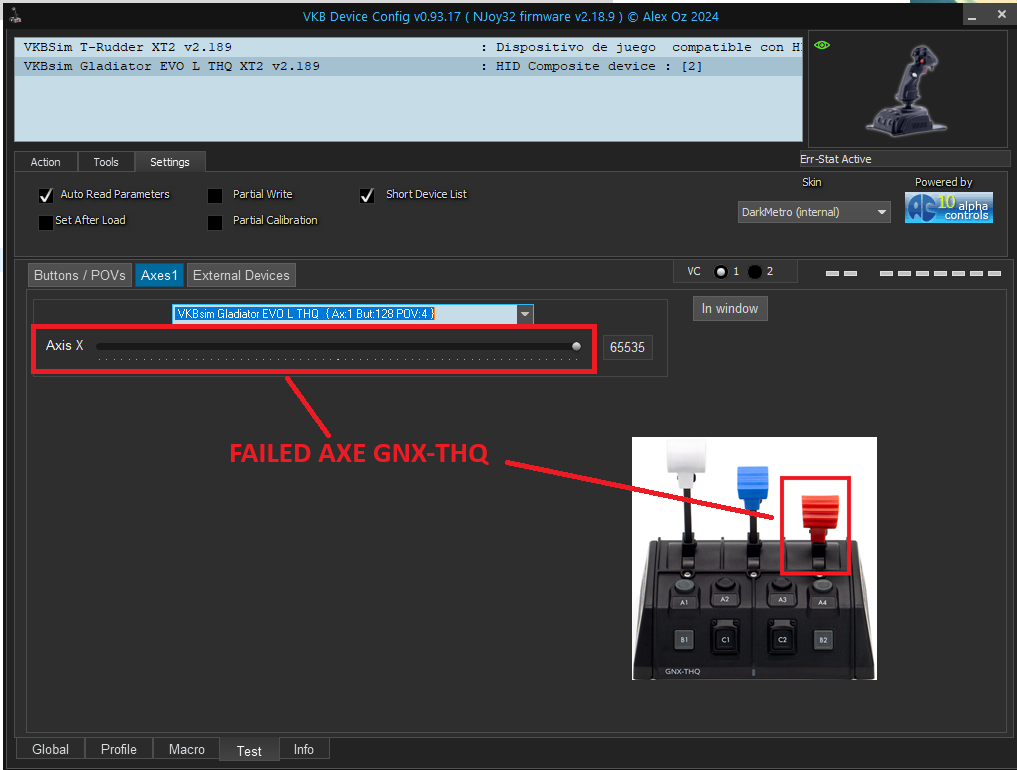

- On GNX-THQ axis x does not work.
- On Flightstick axis z (left/right) does not work.

Note: Connected with 4 pin cable.
