That came to mind a little earlier today. lol
Baby steps I guess.
Just randomly sitting here and it came to mind.

Jukelo over on Discord yesterday, did remind about being able to tweak KdHi and KdLo to fake a DzHi value for axes using 2D Circular DzLo setting. I hadn't considered that originally as a workaround. Not exactly the same but does accomplish the desired settings. Also depends on being able to raise t...

Side Question on the DzLo Settings. Not sure if I missed it mentioned anywhere in documentation or not, but what is the difference between 2D Crucial and Ordinal? I believe the 3 DzLo options became available after the last manual update. Only Help Center info on it is for POVs page Dz settings. Edi...

Ran into a situation helping over on Discord where a user couldn't get DzHi to show any affects on their desired axes. The user utilizes 2D Circular DzLo, for avoiding a Dz lock crossing center for Rotational axes in Star Citizen X=Yaw, Y=Pitch. They also wanted to set a DzHi value for both axes, ma...

Yes please!!!!!!!!!!!!

It made for some really clean POV SHIFT/subSHIFT bindings utilizing Buttons V in 2.17.6 and prior.
In order to do the same now it requires setting up 4 booleans, on a 4 way POV, and wasting 4 unused Physical cells that didn't used to be required

That really makes me wonder what is going on.

No that vid looks like it is covering it correctly. It was just using the Logical out which is #3 for Physical Cell ID #12 by default. I just defaulted mine and set a Logical #3 LED Event according to the vid and it worked as expected. Not sure why it was giving you problems on Logical #3. This is m...

It is not a slider.
You specifically highlighted axis 7 and used the term slider over and over again.

And you wonder why you got more questions. LOL

If you are talking about the Paddle Throttle on the base it is the Z Axis.

It is axis #4 in the list of axes.

As far as the settings I see in your image above those should be enabled and working.

Have you calibrated those axes when doing a calibration?

Yes I read what you wrote did you read what I wrote? LOL You can make them work but they are not setup to work off any axis on the EVO SCG at all by default. I have no idea how you set them up before. If you give an example of how you want to manipulate them I could possibly help you get them workin...

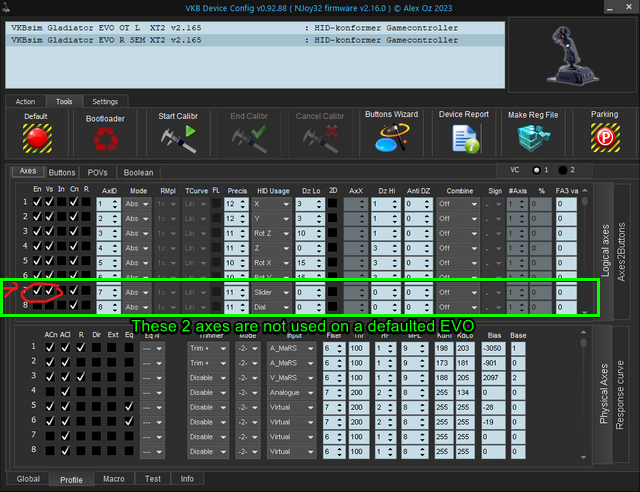

Not sure what you did before or if it was not fully defaulted prior, but neither EVO will utilize the Slider or Dial axes #7 and #8 by default.

Here is another example trying to break it down in another way.


Let me know if those look washed out at all. I am grabbing screenshots while in HDR.

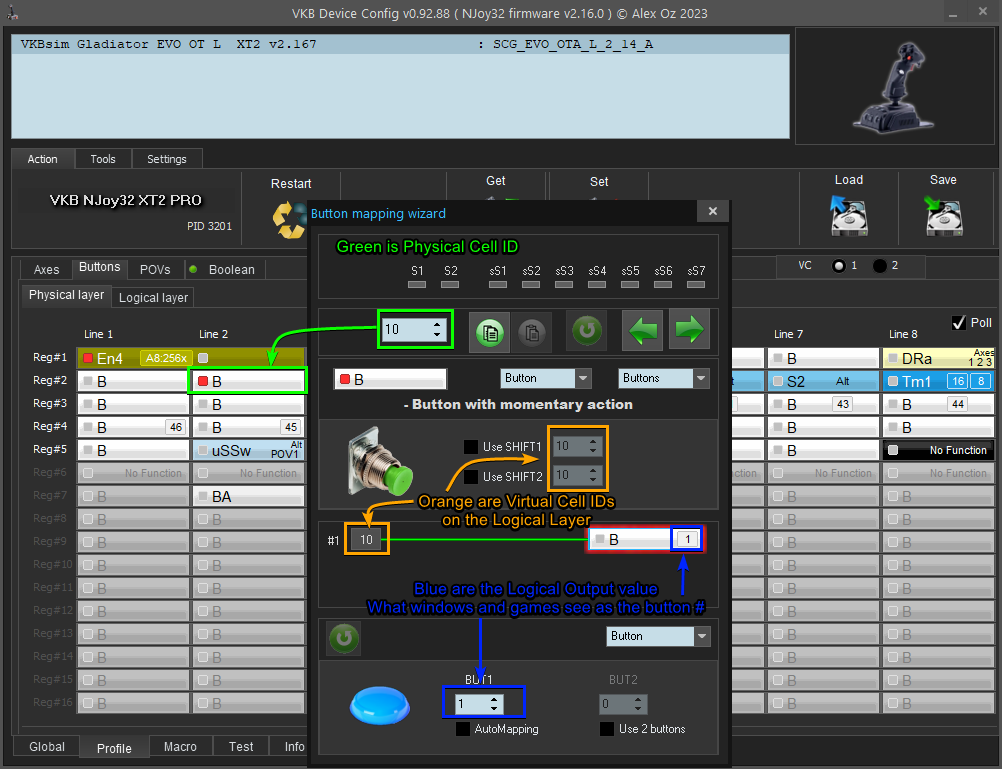

Cool! I really wasn't sure how else to really nail it down for you. I did try to explain the Physical/Virtual/Logical relationship in my one image in the other thread I believe. I may need to come up with another way to get the relationship across better. Physicals and Virtuals work off the Cell ID ...

You may have enabled one of the SEM Levers as an axis at one point. That can be done Maybe I misread the other comments. I thought you were trying to change the detent count on the SEM levers. Edit: You can see how the lever is turned into an axis in the two timestampted videos. First one is SEM sec...

SCG NXT/EVOs do not use axes 7 and 8.
They can be set up to be used, but there are no other physical axes on the SCG EVO to manipulate axes 7 and 8.
