Help, Had my stick open to re-fix a switch that was flaky and when I put it back together, the lights on the top didn't come on and no buttons above the base triggered when testing with VKBconfig. Took a closer look and found a cut through the insulation on the yellow wire on the cable bundle that l...

How long will it take? I heard back, and verified my address a week ago.

Do you know how I go about getting the part? I've put in a ticket, # 3138, but is there something else I have to do?

Did that, No reaction. It should have lit the red square, right?

That happened once. When it stopped working after assembly, I took it apart to the point where I could re-check the switch. So I removed the cover, removed the board, and tested the switch again. The switch operates as follows, using the picture with your probes: Red to Black: Switch off: open Switc...

So the pads are secure and there is no resistance between the raw pin and the pad for the upper two, and between the pin and the solder dot between the ones labeled VCC and GND on the small board.

Next step?

They look attached, I don't see any marks. They don't move when poked.

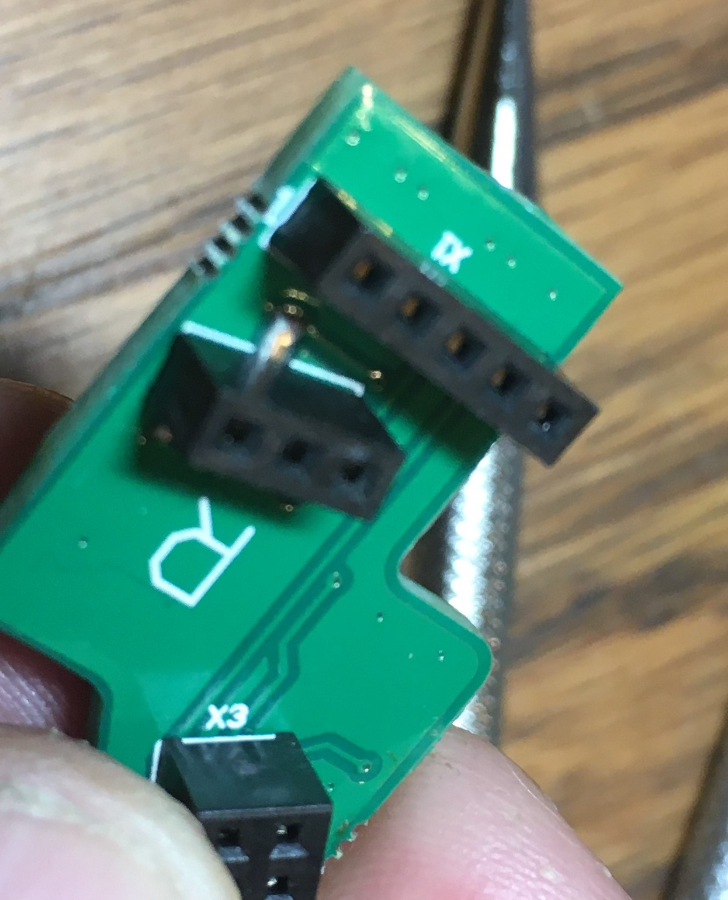

The side of the connector with one:

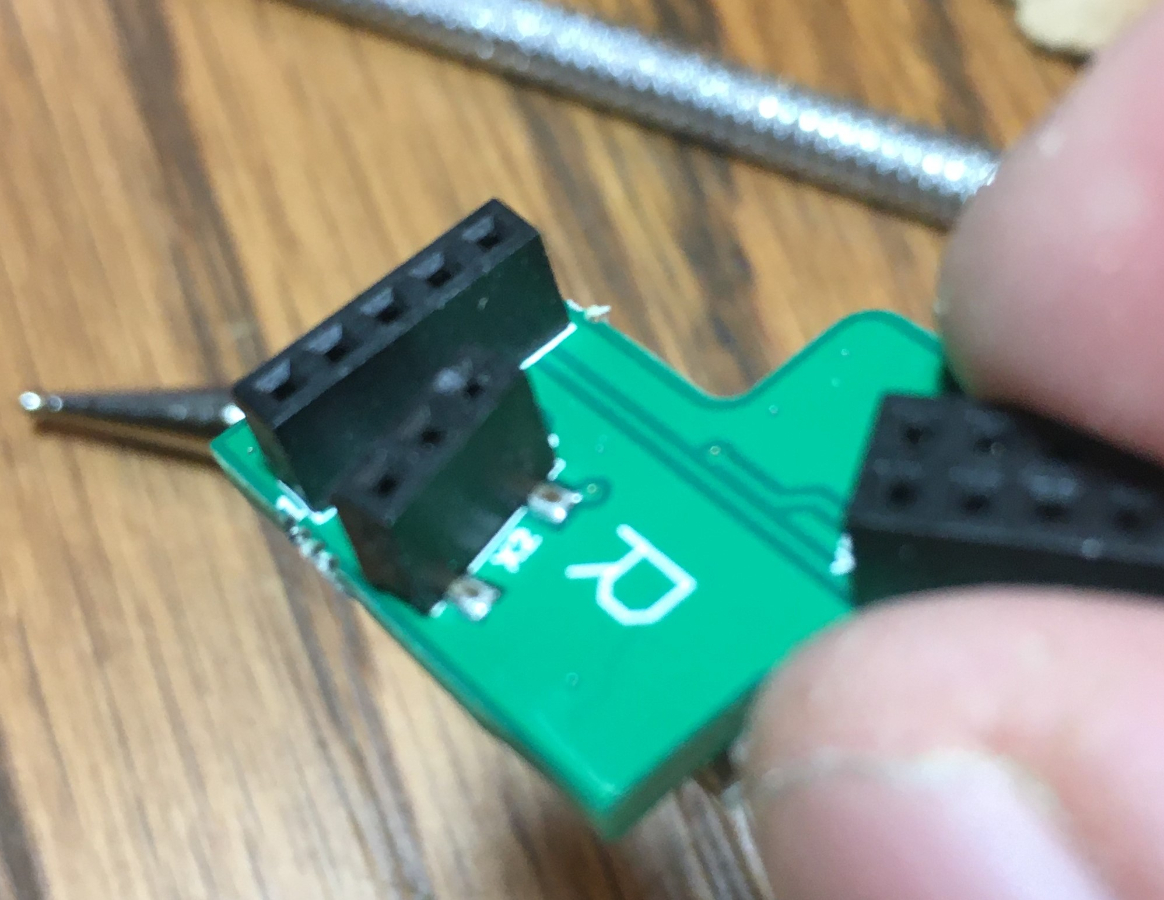

And with two:

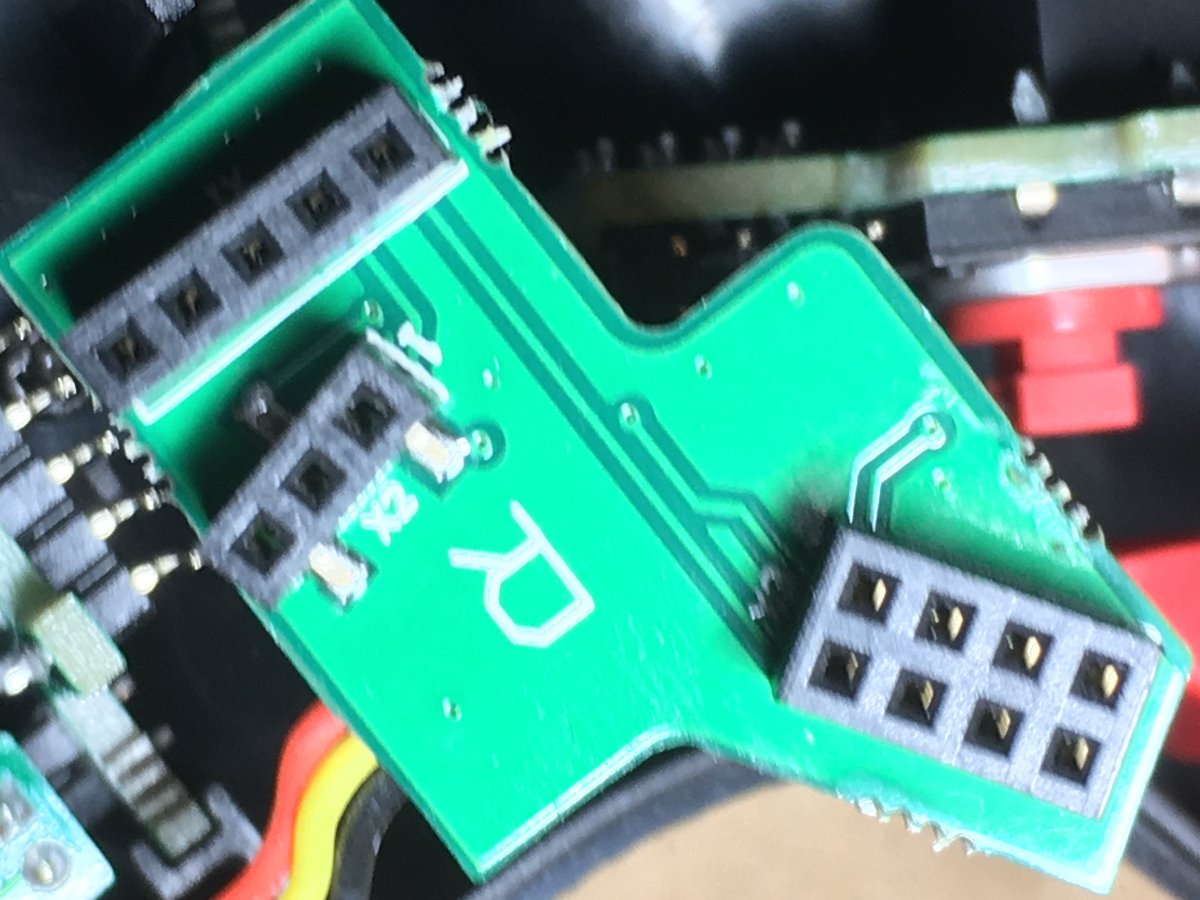

Top of the board with the cable:

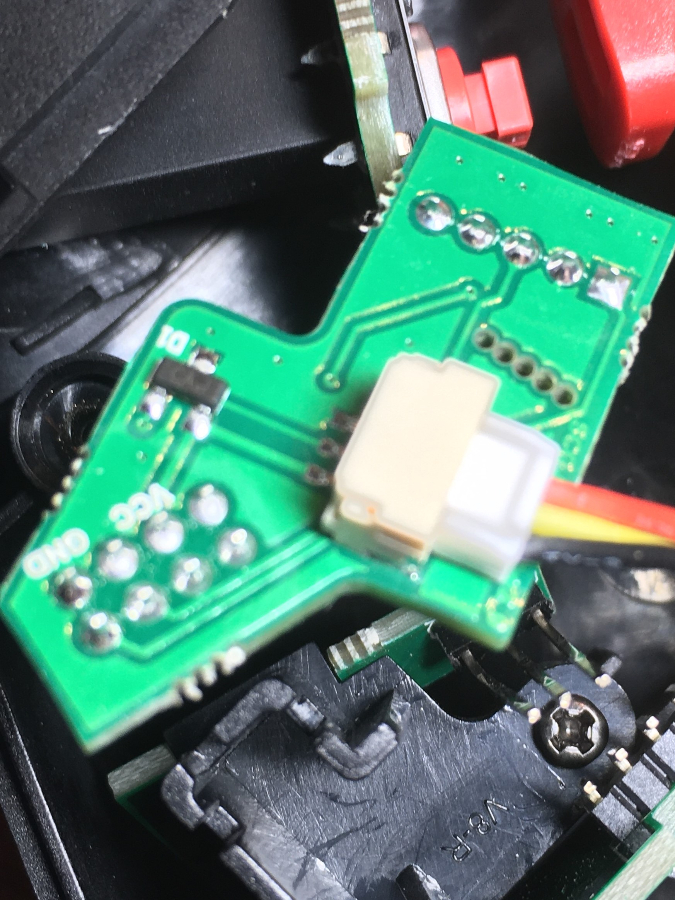

Bottom of the board with the cable:

Top of the board with the switch (hard to get a good angle:

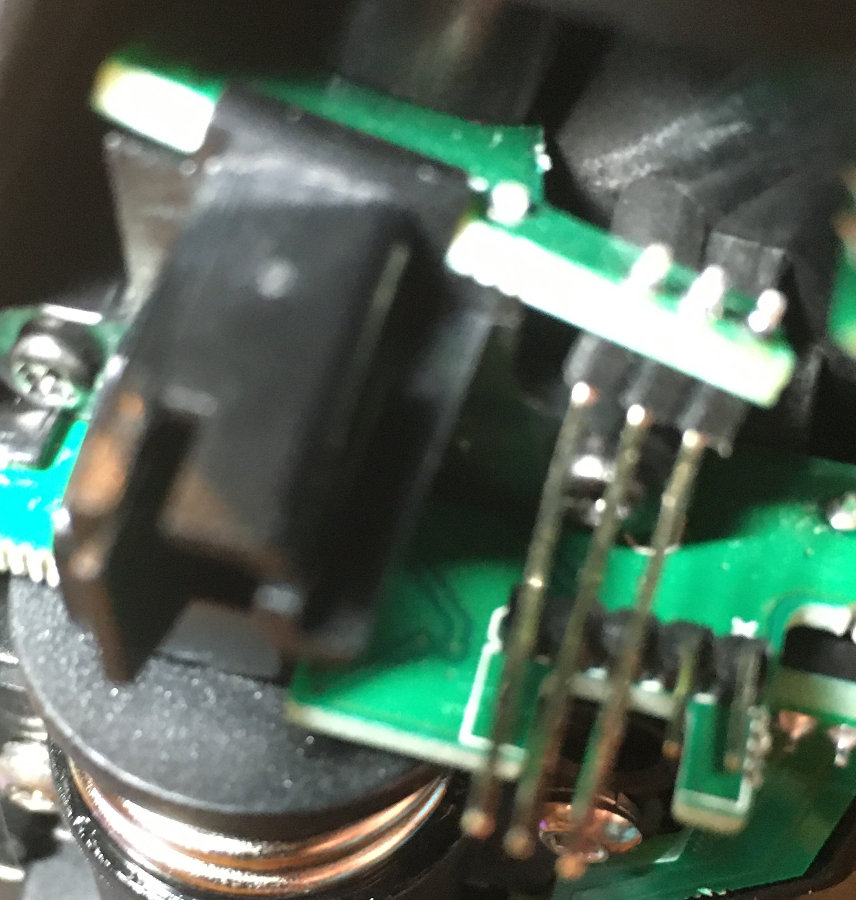

Bottom of the board with the switch:

OK, Well took it apart as directed, checked the switch and it was normally open/closed when the button was pushed. (so working normally) Put the board back on and tried it (Plugged it into the computer, ran VKBconfig, set polling, pushed button): The red square flashed when C1 was pressed and pollin...

I don't have a tester, but I can rig something up with a flashlight. 3V in series with a flashlight bulb won't hurt it, right?

And the button only recently stopped working. It was good for months before then.

No.

When I press any other button, a red square lights up, but not C1.

Ticket's been in a couple days, is there anything I should try, or just wait?

Profile attached. Set it to poll, and started pushing buttons. Before "defaulting" the lights on the stick went out when plugged in, and no buttons on the stick register After defaulting, the LED at the top of the stick turned blue, and all of the buttons on the stick registered except C1....

1 - Device model and version: HID-compliant game controller Product Name: VKB-Sim Gladiator NXT R PRO version T-Link supported Firmware version: v2.010 VKB Device Config v0.91.96 (Njoyr32 Firmwar v 2.05.3) The side stick button (button 20 on my left stick) is not showing as pressed on the right stic...
