Just wanted to finish this Topic and tell how it turned out. Eventually VKB send me a new PCB directly from China within less then 5 days. IMG_20200617_180124.jpg interesting enough the right one is the replacement board... I installed it today after work and it perfectly works now! I think at the e...

Thank you Ron61, you provided excellent support.

благодарю вас

Hello and thank you for your help. It was an interesting and (at least for myself) a challenging trouble shooting process. About changing the Board in the Grip whats the next step? I purchased the Gladiator Nov2019 and I have a receipt/Invoice DIX30 Simulation has the following Terms on their Websit...

alright. now with this setting: Device Config after set.jpg If nothing happens box is grey. When I touch the connector cable it is red intermittent, mostly grey though. (this is true for being plugged into the board and also when disconnected) When I move the 'rod" nothing changes until I touch...

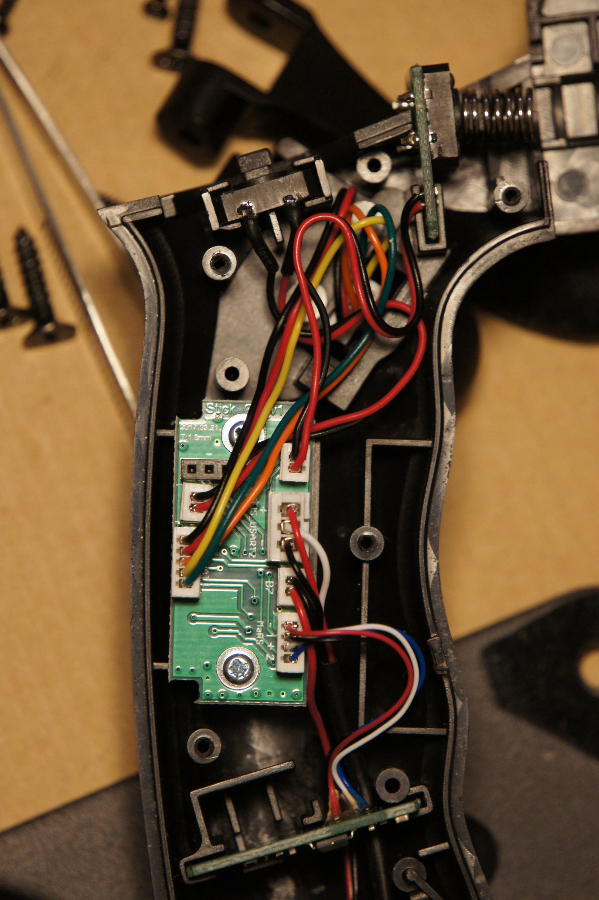

Thank you, that worked my Program looks like this now: VKB Device Congfig Developer.jpg And as requested a picture from the 'Grip-board' only connection hooked up to it is the 3 Pin connector from the Base. Gladiator Grip Board.JPG Also tried to jmper the two connctions like described in the picture...

Well sorry to say but I have the same problem then on e of the guys in the link, my global external screen looks different and even when I hit default (Red Button) doesn't change nothing, I tried to download most recent Firmware and Device Config Version, no change. So I cannot access the USART# 1- ...

Yes!

From the 3 wired connecter: Base - Grip:

RED&BLACK: 3.290 V
WHITE&BLACK: 2.945 V
RED&WHITE: 330 mV

I measured the voltage on the Base with connector off & with everything plugged in on the connector on the Grip

I measured continuity and voltage. black red and white.
All checked out and Voltage between + and - is 3.29
Also all the switches and the POV in the grip get 3.29 V on the Black Red Cables
The MaRs where it says Twist V2 gets 3.00 V between + and -

Hello, 1st of all I enjoyed this product to the fullest and at 0 complains. I was about to order the Pedals too so very positive experience until now. I received a VKB Gladiator MKII in Dember 2019 from Dix30 Simulations in Canada and was using it since then 6-10 hours a week with all its functions ...
